GGG SGGG Crystal Substrates
Description
Gadolinium gallium garnet(GGG) is a special substrate magneto optical flims. In optical commuication equipment, a large number of 1.3 and 1.5 micron optical isolators are needed, and the core component is YIG or BIG film placed in the magnetic field. Different tangential GGG single crystal substrates can be matched with the lattice of such magneto-optical materials, thus ensuring the successful epitaxial growth of YIG and BIG films. The good physical, mechanical and chemical stability of GGG also ensures the requirements of the substrate in the process of film perparation. The substrate material is made of microwave isolator GGG.

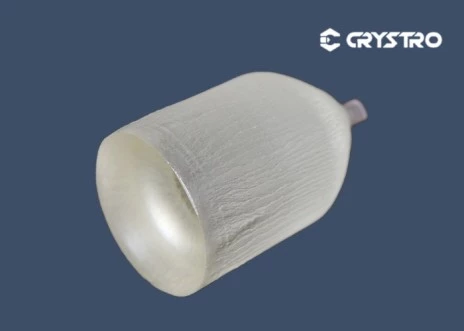

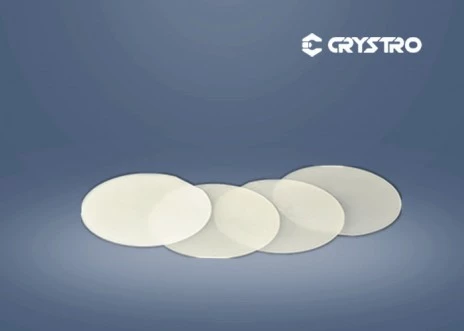

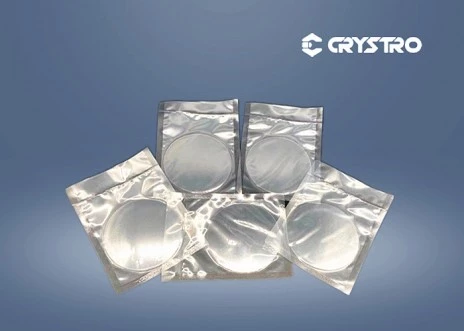

GGG SGGG Crystal Substrates
Specifications |
|
|---|---|
| Type Of Crystal: | GGG |
| Crystal Diameter: | up to 104 mm |
| Crystal Length: | up to 150 mm |
| AR Coating: | Uncoated |
| Material: | GGG/SGGG |
| Chemical Formular: | Gd3Ga5O12/Substitited GGG |
| Lattice Constant: | 12.383A/12.497A |
| Density: | 8.0/7.5 |
| Melting Point: | 1725℃/1730℃ |
| Refractive Index: | 1.954 at 1064nm |
Features
Large dimensions 4inch
Double Side Polished
High thermal conductivity (7.4W m-1K-1).
High laser damage threshold (>1GW/cm2)
Low optical losses (<0.1%/cm)
Orientation,<111> <100>
Applications
SGGG is used as substrates for liquid epitaxy.
It's dedicated substrates for magneto-optical film.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
GGG SGGG Crystal Substrates are used as substrates for magneto-optical film in optical communication equipment.
The GGG SGGG Crystal Substrates have large dimensions of 4 inches.
The GGG SGGG Crystal Substrates have high thermal conductivity of 7.4W m-1K-1.
The GGG SGGG Crystal Substrates have a high laser damage threshold of >1GW/cm2.
The GGG SGGG Crystal Substrates have low optical losses of <0.1%/cm.
