Introducing the Zaber X-RSB-E Series rotation stages, a breakthrough in motion control technology designed to simplify your precision positioning needs. With a sleek and compact design, these stages boast a 120 mm table diameter and a substantial 50.8 mm aperture, making them ideal for a variety of applications that require rapid, precise movement. The low-profile construction ensures that the stages can be easily integrated into any setup, while the robust load capacity of up to 50 kg allows for versatile usage across different industries.
The X-RSB-E Series is engineered to deliver impressive performance with a maximum speed of 300 rpm, enabling fast and accurate positioning to within a fraction of a degree. These stages are equipped with a built-in motor encoder that facilitates closed-loop operation, ensuring reliable slip and stall recovery.
Users can choose between two motor configurations: motor up for flush mounting on flat surfaces or motor down for unrestricted 360° movement of extended loads. Additionally, an indexed knob allows for manual control, providing flexibility even when computer control is not available. Connectivity is seamless with the X-RSB-E Series, as these stages can easily connect to the RS-232 or USB port of any computer. The ability to daisy-chain with other Zaber products further enhances their versatility, allowing multiple units to share a single power supply through convenient locking, 4-pin, M8 connectors.
Designed with user-friendliness in mind, these stages are 'plug and play,' ensuring a straightforward setup and operation process. Whether you're looking to streamline your motion control systems or enhance precision in your operations, the Zaber X-RSB-E Series rotation stages offer a reliable and efficient solution.

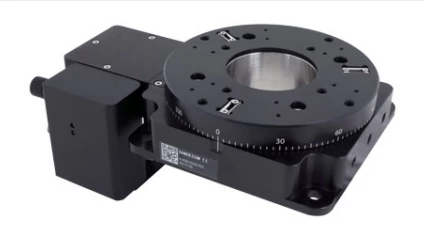

Motorized Rotation Stage X-RSB120AU-E01
Specifications |
|
|---|---|
| Vacuum Compatible: | Yes |
| Built-in Controller: | Yes |
| Range: | 0.19 degrees |
| Unidirectional Accuracy: | 360 degrees |
| Repeatability: | <0.5 degrees |
| Backlash: | 0.19 degrees |
| Encoder Resolution: | 500 CPR |
| Stage Diameter: | 120 mm |
Features
- Continuous 360° Rotation Stage: Enables seamless rotation for precise positioning.
- High-Speed Performance: Achieves speeds up to 300 rpm for rapid positioning.
- Large Aperture: Features a 50.8 mm (2 inch) aperture, suitable for various applications.
- Built-in Controller: Allows for easy integration and daisy-chaining with other Zaber products.
- Multiple Motor Configurations: Offers flexibility with both motor up and motor down configurations.
- Encoder Position Feedback: Includes slip/stall detection and automatic recovery for reliable operation.
- Compact and Durable Design: 120 mm table diameter with a low profile, supporting loads up to 50 kg.
- Stand-Alone Operation: Requires a standard 24 V or 48 V power supply.
- Manual Control Option: Indexed knob provides convenient manual control without a computer.
- Easy Connectivity: Connects via RS-232 or USB, with secure locking 4-pin M8 connectors.
- Plug and Play: Designed for easy setup and operation, compatible with Zaber's X-Series products.
- Precise Motion Control: Microstep size of 0.005625° and repeatability of < 0.02°.
- Robust Communication: Supports Zaber ASCII and Zaber Binary protocols.
- High Torque Capability: Maximum continuous torque of 120 N·cm.
- Versatile Mounting Options: Kinematic interface with M2.5 and M6 threaded holes.
- Enhanced Safety Features: Magnetic home sensor and LED indicators for operational status.
Applications
- Optical Component Rotation: Ideal for rotating mirrors, prisms, or beam splitters in optical setups.
- Automated Inspection Systems: Enables rapid and precise rotational positioning in inspection workflows.
- Laser Processing and Alignment: Supports rotational alignment of laser optics and fixtures.
- Precision Metrology: Suitable for rotating samples or measurement heads in metrology systems.
- Research and Development: Essential for motion experiments requiring fast, precise rotation.
Frequently Asked Questions
The X-RSB-E Series rotation stages have a load capability of up to 50 kg.
The X-RSB-E Series rotation stages require either a standard 24 V or 48 V power supply.
Yes, an indexed knob provides convenient manual control for versatile operation even without a computer.
The X-RSB-E Series rotation stages can be connected to the RS-232 port or USB port of any computer.
Yes, the daisy-chain also shares power, making it possible for multiple X-Series products to share a single power supply.
