Description
Zaber's X-RSM-E Series Rotation Stages are designed to deliver compact and efficient motion control solutions. With a total height of only 21 mm, these stages are ideal for applications where space is at a premium. The precision worm gear drive ensures smooth, continuous rotation, and the built-in controller simplifies integration by eliminating the need for external control devices. The X-RSM-E Series is not just about compactness; it also boasts exceptional repeatability of 0.02°, making it a reliable choice for precise positioning tasks.
These standalone units are engineered for ease of use, requiring only a power supply to operate. An indexed knob allows for manual control, providing versatility for various operational needs. Connectivity is seamless, as these stages can be hooked up to the RS-232 or USB ports of any computer. Furthermore, they can be daisy-chained with other Zaber products, allowing multiple devices to share a single power supply and simplifying system setups.
Installation and setup are made straightforward with self-aligning feet and mounting points, which facilitate the creation of multi-axis tilt or gimbal systems. Whether integrating with GSM tilt devices or using AP146 and AB147 brackets, the X-RSM-E Series offers flexibility for a wide range of configurations. This adaptability, combined with robust load capacities and precise encoder feedback for slip and stall detection, makes the X-RSM-E Series a versatile and reliable choice for motion control applications.

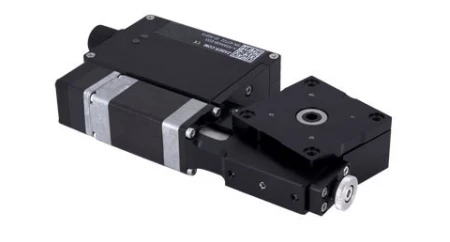

Motorized Rotary Stage X-RSM40B-E03
Specifications |
|
|---|---|
| Vacuum Compatible: | Yes |
| Built-in Controller: | Yes |
| Range: | 360 degrees |
| Unidirectional Accuracy: | 0.14 degrees |
| Repeatability: | <0.5 degrees |
| Backlash: | 0.04 degrees |
| Encoder Resolution: | 200 CPR |
| Stage Diameter: | 40 mm |
Features
- Compact Design: With a total height of just 21 mm, the Zaber X-RSM-E Series rotation stages are our most compact stepper and worm gear-driven devices.
- High Precision: Achieve < 0.02° repeatability for precise motion control.
- Robust Load Capacity: Supports up to 50 N load, making it suitable for various applications.
- Continuous Rotation: Worm gear driven for smooth and continuous 360° rotation.
- Integrated Controller: Built-in controller allows for easy daisy-chaining with other Zaber products.
- Encoder Feedback: Features encoder position feedback with slip/stall detection and automatic recovery.
- Manual and Automated Control: Indexed knob for manual control and RS-232 or USB connectivity for automated control.
- Versatile Setup: Self-aligning feet and mounting points facilitate multi-axis tilt or gimbal systems setup.
- Efficient Power Sharing: Daisy-chain power sharing enables multiple X-Series products to operate with a single power supply.
- Wide Speed Range: Maximum speed of 120 °/s and minimum speed of 0.000286 °/s for flexible operation.
- Durable Construction: Precision worm gear mechanical drive system ensures long-lasting performance.
- Environmentally Friendly: RoHS and CE compliant, ensuring adherence to environmental and safety standards.
- Easy Installation: M2 and M3 mounting holes for straightforward mounting interface.
Applications
- Optical Component Rotation: Ideal for rotating polarizers, waveplates, or optical filters with precision.
- Automated Alignment Systems: Ensures accurate angular positioning in multi-axis setups.
- Laser and Photonics Labs: Suitable for experimental setups requiring compact motorized rotation stages.
- Metrology and Inspection: Enables precise rotational adjustment in inspection stations.
- Multi-Axis Motion Systems: Easily integrates into tilt or gimbal assemblies with compatible brackets.
Frequently Asked Questions
The load capacity of the X-RSM-E Series rotation stage is 50 N.
Yes, the X-RSM-E Series rotation stage can be controlled manually using the indexed knob.
The repeatability of the X-RSM-E Series rotation stage is less than 0.02°.
The communication interface of the X-RSM-E Series rotation stage is RS-232.
Yes, the X-RSM-E Series rotation stage can be used in multi-axis tilt or gimbal systems using the GSM tilt devices or AP146 and AB147 brackets.
