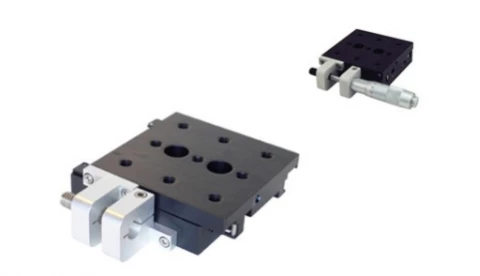

Translation Stage TSB60M14
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Zaber's TSB Series Translation Stages are meticulously designed to provide seamless motion control with precision and reliability. These ball bearing linear stages come with travel options of 28 mm or 60 mm, making them versatile for various applications. The stages are ingeniously compatible with Zaber's T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators, facilitating easy integration into existing systems. For those requiring manual adjustments, versions with micrometer heads offer travel options of 25 mm or 50 mm with a fine resolution of 0.01 mm, ensuring precise control over movement.
Engineered for flexibility, these translation stages can be effortlessly configured in both XY and XYZ orientations. This adaptability is further enhanced with the use of AB90E (imperial) or AB90M (metric) angle brackets, allowing for a wide range of experimental setups. The robust construction supports a load capacity of up to 10 kg, making it suitable for handling various tasks while maintaining stability and accuracy.
The TSB Series is built with user convenience in mind, featuring M6 threaded holes for straightforward mounting, and is compliant with both RoHS and CE standards, ensuring safety and environmental responsibility. Although designed without a motor, these stages maintain a high degree of precision and can be utilized in environments with operating temperatures ranging from 0 to 75 °C. With a stage parallelism of less than 100 µm, users can expect exceptional alignment and smooth operation.
Translation Stage TSB60M14
Specifications |
|
|---|---|
| Axes Of Motion: | One |
| Travel Range: | 60 mm |
| Load Capacity (Horizontal): | 10 kg |
| Load Capacity (Vertical): | 10 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | DC 24V, DC 48V |
Features
- Travel Options: 25, 28, 50, and 60 mm travel
- Load Capacity: Supports up to 10 kg
- Micrometer Head Availability: Available with a micrometer head for precise adjustments
- Compatibility: Works with T-NA, T-LA, and NA11 Series actuators
- Configuration Flexibility: Can be configured in XY or XYZ stage setups with appropriate brackets
- Resolution: Manual micrometer versions offer 0.01 mm resolution
- Mounting Interface: M6 threaded holes for secure mounting
- Operating Temperature: 0 to 75 °C
- Compliance: RoHS and CE compliant
- Stage Parallelism: Less than 100 µm (< 0.003937 inches)
- Weight: 0.56 kg (1.235 lb)
Applications
- Optical System Alignment: Enables precise positioning in laser and optics setups
- Research and Development: Ideal for experimental configurations requiring accurate motion control
- Precision Manufacturing: Supports fine adjustments in assembly and calibration tasks
- Multi-Axis Stages: Can be configured into XY or XYZ systems for complex positioning needs
Frequently Asked Questions
The Zaber TSB Series translation stages have a travel range of either 28 mm or 60 mm.
The Zaber TSB Series translation stages have a load capacity of 10 kg.
The Zaber TSB Series translation stages are compatible with T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators.
Yes, the Zaber TSB Series translation stages can be used in XY stage configuration.
The versions of the Zaber TSB Series translation stages with manual micrometer heads have a resolution of 0.01 mm.
