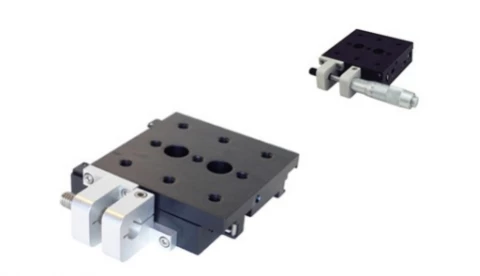

Translation Stage TSB60M-MH50
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Zaber's TSB Series of Translation Stages offer a sophisticated solution for precise motion control, meticulously designed to meet the demands of modern engineering and research applications. These ball bearing linear stages are available with travel ranges of 28 mm or 60 mm, providing flexibility for various applications. The stages are engineered to be compatible with Zaber's T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators, allowing for seamless integration into complex systems. Whether used individually or in an XY stage configuration, these translation stages offer unparalleled precision and reliability.
The TSB Series also includes versions with manual micrometer heads, offering travel ranges of 25 mm or 50 mm with an impressive resolution of 0.01 mm. This feature makes them ideal for applications requiring fine adjustments and precise positioning. These stages can be easily mounted directly in an XY configuration or expanded into an XYZ configuration using an AB90E (imperial) or AB90M (metric) angle bracket, providing versatility and adaptability to meet the needs of diverse projects.
Designed to simplify motion control, the TSB Series ensures robust performance with a maximum centered load capacity of 100 N. The ball bearing guide type enhances durability and smooth operation, while the M6 threaded holes provide a secure mounting interface. Although these stages are not vacuum compatible, they are RoHS and CE compliant, ensuring adherence to international safety and environmental standards. With an operating temperature range of 0 to 75 °C, these stages are built to perform reliably in various environments, making them a trusted choice for professionals seeking precision and quality in motion control solutions.
Translation Stage TSB60M-MH50
Specifications |
|
|---|---|
| Axes Of Motion: | One |
| Travel Range: | 50 mm |
| Load Capacity (Horizontal): | 10 kg |
| Load Capacity (Vertical): | 10 kg |
| Guiding Mechanism: | Other |
| Guide Type: | Ball bearing |
| Operating Temperature Range: | 0 to 75 °C |
| RoHS Compliant: | Yes |
| CE Compliant: | Yes |
| Weight: | 0.72 kg |
Features
- Travel Options: Available in 25 mm, 28 mm, 50 mm, and 60 mm travel ranges.
- Load Capacity: Supports up to 10 kg load capacity.
- Micrometer Head: Available with a micrometer head for precise adjustments.
- Compatibility: Compatible with T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators.
- Configuration: Can be used in XY stage configuration; also supports direct mounting in XY or XYZ configurations with AB90E or AB90M angle brackets.
- Resolution: Manual micrometer head versions offer 0.01 mm resolution.
- Microstep Size: Default resolution of 10 µm.
- Maximum Centered Load: 100 N (22.4 lb).
- Guide Type: Ball bearing linear stages for smooth motion.
- Mounting Interface: Equipped with M6 threaded holes for secure mounting.
- Temperature Range: Operates efficiently between 0 to 75 °C.
- Compliance: RoHS and CE compliant for safety and environmental standards.
- Weight: Lightweight design at 0.72 kg (1.587 lb).
Applications
- Optical Alignment Systems: Provides precise linear motion for lens, mirror, or fiber alignment setups.
- Metrology and Inspection: Ideal for measurement stations requiring accurate sample translation.
- Research Laboratories: Enables flexible positioning solutions for experimental apparatus.
- Microscopy Automation: Integrates into stages for sample scanning and positioning in imaging systems.
- Assembly and Test Fixtures: Supports repeatable linear positioning in automated test environments.
Frequently Asked Questions
The travel range options are 25, 28, 50, and 60 mm.
The maximum centered load capacity is 100 N or 22.4 lb.
Yes, they are compatible with our T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and our NA11 Series stepper linear actuators and can be used in XY stage configuration.
The versions with manual micrometer heads have 0.01 mm resolution.
The operating temperature range is 0 to 75 °C.
