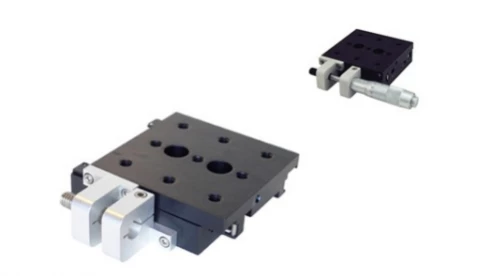

Translation Stage TSB60M
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Zaber's TSB Series of translation stages represent a significant advancement in motion control technology, offering precision and reliability for a range of applications. These ball bearing linear stages are available with travel distances of 28 mm or 60 mm, providing flexibility for various experimental and industrial setups. Designed to integrate seamlessly with Zaber's T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators, these stages are ideal for creating precise XY stage configurations.
The TSB Series stages with manual micrometer heads offer travel distances of 25 mm or 50 mm with a fine resolution of 0.01 mm. This precision allows for meticulous control over movement, making them suitable for tasks requiring high accuracy. These stages can be easily mounted in both XY and XYZ configurations using AB90E (imperial) or AB90M (metric) angle brackets, enhancing their versatility in complex setups.
With a robust design, the TSB Series stages support a maximum centered load of 100 N, ensuring stability and performance under demanding conditions. Despite their strength, they maintain a compact form factor, weighing just 0.56 kg. The stages are constructed with M6 threaded holes for straightforward mounting and are compliant with both RoHS and CE standards, ensuring their suitability for a wide range of environments. Although not vacuum compatible, they operate efficiently within a temperature range of 0 to 75 °C, making them adaptable to various laboratory and industrial settings.
Translation Stage TSB60M
Specifications |
|
|---|---|
| Axes Of Motion: | One |
| Travel Range: | 60 mm |
| Load Capacity (Horizontal): | 10 kg |
| Load Capacity (Vertical): | 10 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | DC 24V, DC 48V |
Features
- Travel Options: 25, 28, 50, and 60 mm travel available for various application needs.
- Load Capacity: Supports up to 10 kg, ideal for heavy-duty tasks.
- Micrometer Head: Available with a micrometer head for precise adjustments.
- Actuator Compatibility: Compatible with T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators.
- Configuration Flexibility: Can be used in XY stage configuration and mounted directly in XY or XYZ configuration with an AB90E or AB90M angle bracket.
- Resolution: Manual micrometer versions offer 0.01 mm resolution for fine control.
- Guide Type: Ball bearing for smooth and reliable movement.
- Mounting Interface: Equipped with M6 threaded holes for easy installation.
- Temperature Range: Operates efficiently in temperatures from 0 to 75 °C.
- Compliance: RoHS and CE compliant, ensuring safety and environmental standards.
- Weight: Lightweight at 0.56 kg, making it easy to handle and integrate into systems.
Applications
- Optical Alignment: Ideal for precise positioning of lenses and optical components
- Laboratory Research: Enables accurate sample and equipment positioning
- Industrial Automation: Suitable for assembly, testing, and inspection systems
- Multi-Axis Systems: Configurable in XY or XYZ setups for advanced motion control
Frequently Asked Questions
The travel range of the Zaber TSB Series translation stages is either 28 mm or 60 mm.
The load capacity of the Zaber TSB Series translation stages is 10 kg.
The Zaber TSB Series translation stages are compatible with T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators.
Yes, the Zaber TSB Series translation stages can be used in XY stage configuration.
The versions with manual micrometer heads have a resolution of 0.01 mm.
