Description
Zaber's TSB Series Translation Stages offer a sophisticated solution for precise motion control, designed to cater to a wide range of applications with ease and efficiency. These ball bearing linear stages are available in travel lengths of 28 mm or 60 mm, ensuring adaptability to various project requirements. The TSB Series is specifically engineered to integrate seamlessly with Zaber's T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators, making them versatile components in any setup. Whether you are configuring an XY stage or integrating into a more complex system, these stages provide reliable performance.
The TSB Series stages are available with or without manual micrometer heads, catering to different precision needs. The versions featuring manual micrometer heads offer travel lengths of 25 mm or 50 mm, combined with a fine resolution of 0.01 mm. This makes them ideal for applications requiring meticulous adjustments and accuracy. Additionally, these stages can be mounted directly in XY or XYZ configurations, providing flexibility in design and setup. For enhanced structural integrity and alignment, they can be paired with an AB90E (imperial) or AB90M (metric) angle bracket.
Designed with simplicity and efficiency in mind, the TSB Series stages are built to handle up to 10 kg of load capacity, ensuring robust support for various components and assemblies. The stages feature a single axis of motion and utilize ball bearing guides for smooth and precise linear movement. With a focus on quality and reliability, these stages are RoHS and CE compliant, affirming their adherence to international standards. The compact design, coupled with a weight of just 0.56 kg, makes them easy to integrate into existing systems without compromising performance. Simplify your motion control needs with Zaber's TSB Series Translation Stages and experience unparalleled precision and versatility.

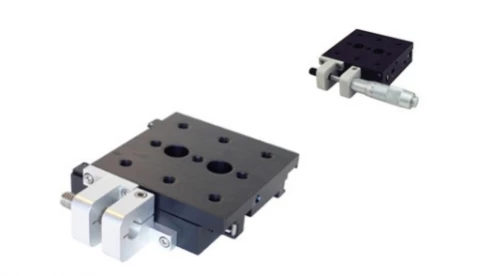

Translation Stage TSB60E14
Specifications |
|
|---|---|
| Axes Of Motion: | One |
| Travel Range: | 60 mm |
| Load Capacity (Horizontal): | 10 kg |
| Load Capacity (Vertical): | 10 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | DC 24V, DC 48V |
Features
- Travel Options: Choose from 25 mm, 28 mm, 50 mm, and 60 mm travel distances to suit your specific application needs.
- Load Capacity: Capable of supporting up to 10 kg, ideal for various precision tasks.
- Micrometer Head Availability: Select models are available with a micrometer head for enhanced precision and control.
- Compatibility: Works seamlessly with T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators.
- Configuration Flexibility: Easily configured in XY or XYZ stage setups using AB90E (imperial) or AB90M (metric) angle brackets.
- Resolution: Models with manual micrometer heads offer 0.01 mm resolution for precise adjustments.
- Mounting Interface: Equipped with 1/4-20 threaded holes for secure and versatile mounting options.
- Operating Temperature: Functions efficiently within a range of 0 to 75 °C.
- Compliance: RoHS and CE compliant, ensuring adherence to safety and environmental standards.
- Weight: Lightweight design at 0.56 kg (1.235 lb) for easy integration into various systems.
- Stage Parallelism: Maintains a parallelism of less than 100 µm, ensuring high precision and accuracy.
Applications
- Optical System Alignment: Enables precise adjustment of lenses, mirrors, and beams
- Research and Development: Ideal for laboratory setups requiring accurate linear positioning
- Industrial Automation: Integrates into precision assembly and calibration systems
- Multi-Axis Positioning: Configurable into XY or XYZ stages for complex motion control tasks
Frequently Asked Questions
The travel range of the Zaber TSB Series translation stages is either 28 mm or 60 mm.
The load capacity of the Zaber TSB Series translation stages is 10 kg.
The Zaber TSB Series translation stages are compatible with T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators.
The versions with manual micrometer heads have a resolution of 0.01 mm.
Yes, the Zaber TSB Series translation stages can be mounted directly in XY configuration or XYZ configuration with an AB90E (imperial) angle bracket or an AB90M (metric) angle bracket.
