Description
Zaber's TSB Series Translation Stages represent a pinnacle in precision motion control, designed to facilitate seamless linear translation with exceptional accuracy and reliability. These ball bearing linear stages offer travel options of 28 mm or 60 mm, catering to a variety of experimental and industrial applications. Engineered for compatibility, they seamlessly integrate with Zaber's T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators, allowing for versatile configurations including XY stage setups.
The TSB Series is available in versions with manual micrometer heads, providing travel ranges of 25 mm or 50 mm with a fine resolution of 0.01 mm. This precision makes them ideal for applications requiring meticulous adjustments and control. These stages can be directly mounted in both XY and XYZ configurations, utilizing either an AB90E (imperial) or an AB90M (metric) angle bracket, ensuring adaptability to various spatial orientations and experimental setups.
With a load capacity of up to 10 kg, the TSB Series stages are robust and capable of handling substantial weight while maintaining smooth operation. Their design prioritizes simplicity and efficiency, embodying Zaber's commitment to simplifying motion control. These stages are an excellent choice for users seeking reliable, high-performance solutions in precision motion applications.

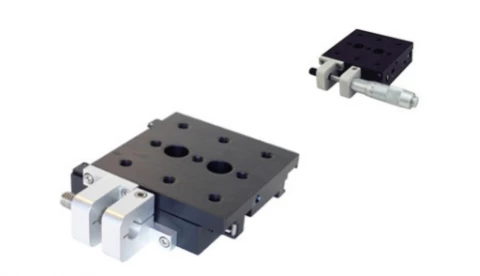

Translation Stage TSB60E-MH50
Specifications |
|
|---|---|
| Axes Of Motion: | One |
| Travel Range: | 50 mm |
| Load Capacity (Horizontal): | 10 kg |
| Load Capacity (Vertical): | 10 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | DC 24V, DC 48V |
Features
- Travel Options: Available in 25, 28, 50, and 60 mm travel lengths for versatile applications.
- Load Capacity: Supports a load capacity of up to 10 kg, ensuring stability and reliability.
- Micrometer Head Availability: Choose versions with a micrometer head for precise adjustments.
- Compatibility: Compatible with T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators.
- Configuration Options: Can be configured in XY or XYZ stage configurations using AB90E (imperial) or AB90M (metric) angle brackets.
- Resolution: Manual micrometer versions offer 0.01 mm resolution for high-precision tasks.
- Guide Type: Ball bearing linear stages for smooth and accurate motion control.
- Mounting Interface: Equipped with 1/4-20 threaded holes for easy mounting.
- Temperature Range: Operates efficiently in temperatures ranging from 0 to 75 °C.
- Compliance: RoHS and CE compliant, ensuring safety and environmental standards are met.
- Lightweight Design: Weighs only 0.72 kg (1.587 lb), making it easy to handle and integrate into systems.
Applications
- Optical Alignment Systems: Provides precise positioning of optics in laboratory or production environments
- Research and Development: Ideal for experimental setups requiring fine linear adjustment
- Inspection and Metrology: Enables accurate positioning in measurement and inspection systems
- Automation and Assembly: Suitable for integration into automated assembly or test systems requiring linear translation
Frequently Asked Questions
The travel range of the Translation Stage TSB60E-MH50 is 50 mm or 1.969 inches.
The maximum load capacity of the Translation Stage TSB60E-MH50 is 10 kg or 22.4 lb.
The manual micrometer heads on the Translation Stage TSB60E-MH50 have a resolution of 0.01 mm.
The Translation Stage TSB60E-MH50 is compatible with T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators.
Yes, the Translation Stage TSB60E-MH50 can be used in an XY stage configuration and can also be mounted directly in XY configuration or XYZ configuration with an AB90E (imperial) angle bracket or an AB90M (metric) angle bracket.
