Description
Zaber's TSB Series Translation Stages are designed to simplify motion control with precision and ease. These ball bearing linear stages offer a travel range of 28 mm or 60 mm, making them versatile for various applications. With a load capacity of up to 10 kg, they are engineered to handle substantial weight while maintaining smooth and accurate motion.
The TSB Series is compatible with Zaber's T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators, allowing for seamless integration into complex systems. These stages can be configured in an XY stage setup, providing flexibility for multi-axis motion requirements. For those requiring manual adjustments, versions with micrometer heads are available, offering 25 mm or 50 mm of travel with a fine resolution of 0.01 mm.
Installation is straightforward, with options for direct mounting in XY or XYZ configurations using the AB90E (imperial) or AB90M (metric) angle brackets. This adaptability ensures that the TSB Series can be customized to fit specific needs, whether in research, development, or industrial settings. The robust construction and precision engineering of these stages make them a reliable choice for applications where precise motion control is essential.

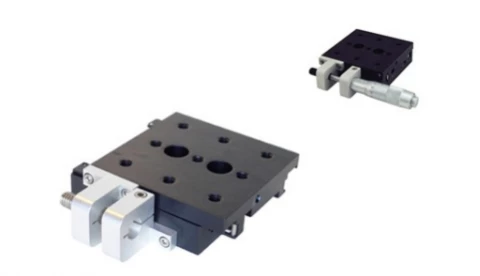

Translation Stage TSB60E
Specifications
| Axes Of Motion: | One |
|---|---|
| Travel Range: | 60 mm |
| Load Capacity (Horizontal): | 10 kg |
| Load Capacity (Vertical): | 10 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | DC 24V, DC 48V |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Travel Options: Available in 25, 28, 50, and 60 mm travel ranges.
- Load Capacity: Supports up to 10 kg load capacity.
- Micrometer Head: Available with a micrometer head for precision adjustments.
- Compatibility: Compatible with T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators.
- Configuration: Can be configured in XY or XYZ stage configuration using AB90E (imperial) or AB90M (metric) angle brackets.
- Resolution: Manual micrometer versions offer 0.01 mm resolution.
- Mounting Interface: Features 1/4-20 threaded holes for secure mounting.
- Operating Temperature: Functions efficiently in temperatures ranging from 0 to 75 °C.
- Compliance: RoHS and CE compliant for safety and environmental standards.
- Guide Type: Utilizes ball bearing for smooth and reliable motion.
- Stage Parallelism: Maintains stage parallelism of less than 100 µm.
- Weight: Lightweight design at 0.56 kg (1.235 lb).
Applications
- Optical Alignment Systems: For precise lens and component positioning
- Laboratory Automation: Ideal for sample handling and experimental setups
- Industrial Motion Control: Suitable for inspection, assembly, and testing systems
- Multi-Axis Configurations: Configurable in XY or XYZ setups for advanced positioning
Frequently Asked Questions
What is the travel range of the Zaber TSB Series translation stages?
What is the load capacity of the Zaber TSB Series translation stages?
Are the Zaber TSB Series translation stages compatible with other Zaber linear actuators?
Can the Zaber TSB Series translation stages be used in XY stage configuration?
What is the resolution of the versions with manual micrometer heads?
