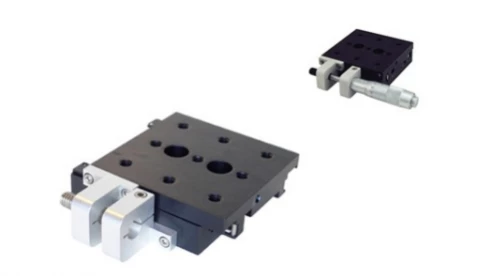

Translation Stage TSB28M14
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Zaber's TSB Series of translation stages are expertly designed ball bearing linear stages, offering a streamlined approach to motion control with travel ranges of 28 mm or 60 mm. These stages are adeptly crafted to provide seamless integration with various actuators, including the T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and the NA11 Series stepper linear actuators. This compatibility allows for versatile use, including configuration in an XY stage setup, making them a valuable component in a wide array of precision applications.
For those requiring manual adjustments, the TSB Series also includes versions equipped with micrometer heads, offering 25 mm or 50 mm of travel and an impressive resolution of 0.01 mm. These manual stages provide flexibility in mounting, allowing for direct integration into both XY and XYZ configurations with the use of AB90E (imperial) or AB90M (metric) angle brackets. This adaptability is essential for applications that demand precise and customizable motion control solutions.
The TSB Series stages are designed with a focus on robustness and precision. They boast a maximum centered load capacity of 100 N (22.4 lb) and a maximum cantilever load of 125 N•cm (177.0 oz•in), supported by high-quality ball bearing guides that ensure smooth and accurate motion. These stages are constructed with M6 threaded holes for secure mounting and are compliant with RoHS and CE standards, reflecting their high-quality build and environmental responsibility.
Operating within a temperature range of 0 to 75 °C, these stages maintain excellent stage parallelism of less than 100 µm (< 0.003937 "). While they are not vacuum compatible, their robust design and precision make them an ideal choice for various non-vacuum environments. Weighing in at 0.47 kg (1.036 lb), the TSB Series stages offer a compact yet powerful solution for precise motion control needs.
Translation Stage TSB28M14
Specifications |
|
|---|---|
| Axes Of Motion: | One |
| Travel Range: | 28 mm |
| Load Capacity (Horizontal): | 10 kg |
| Load Capacity (Vertical): | 10 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | DC 24V, DC 48V |
Features
- Multiple Travel Options: Choose from 25 mm, 28 mm, 50 mm, and 60 mm travel lengths to suit your motion control needs.
- High Load Capacity: Capable of supporting up to 10 kg, making it ideal for various applications.
- Micrometer Head Availability: Available with a micrometer head for precise manual adjustments.
- Compatible with Actuators: Works seamlessly with T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators.
- Flexible Configuration: Can be configured in both XY and XYZ stage configurations using AB90E (imperial) or AB90M (metric) angle brackets.
- High Resolution: Manual micrometer versions offer 0.01 mm resolution for precise control.
- Robust Construction: Features a ball bearing guide type for smooth and reliable operation.
- Easy Mounting: Equipped with M6 threaded holes for secure and flexible mounting options.
- Temperature Range: Operates efficiently within a temperature range of 0 to 75 °C.
- Compliance: RoHS and CE compliant, ensuring safety and environmental standards are met.
- Lightweight Design: Weighs only 0.47 kg, making it easy to integrate into various systems.
Applications
- Optical Alignment Systems: Enables precise adjustment of mirrors, lenses, and beam paths
- Laboratory Research: Ideal for experimental setups requiring accurate linear positioning
- Industrial Automation: Integrates into calibration, testing, and assembly systems
- Multi-Axis Positioning: Configurable in XY or XYZ arrangements for complex motion control tasks
Frequently Asked Questions
The travel range of the Zaber TSB Series translation stages is 28 mm or 60 mm.
The load capacity of the Zaber TSB Series translation stages is 10 kg.
Yes, the Zaber TSB Series translation stages are compatible with T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators.
Yes, the Zaber TSB Series translation stages can be used in XY stage configuration.
The versions with manual micrometer heads have a resolution of 0.01 mm.
