Description

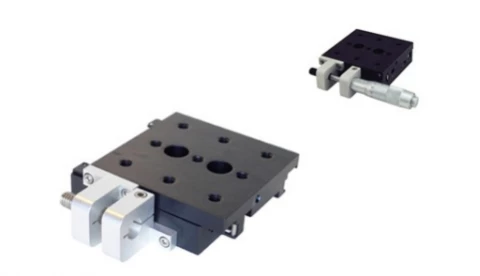

Zaber's TSB Series of translation stages are meticulously designed ball bearing linear stages, offering travel options of either 28 mm or 60 mm. These stages are engineered to seamlessly integrate with Zaber's T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators, making them versatile components for various motion control applications. The TSB Series can be configured into an XY stage setup, providing flexibility for complex positioning needs.
For applications requiring manual adjustments, the TSB Series is available with micrometer heads, offering travel ranges of 25 mm or 50 mm and a fine resolution of 0.01 mm. This configuration is ideal for precision tasks where manual intervention is necessary. Furthermore, these stages can be directly mounted in both XY and XYZ configurations, using either an AB90E (imperial) or AB90M (metric) angle bracket, enhancing their adaptability to different setups and requirements.
Each stage in the TSB Series boasts a robust construction capable of supporting a load capacity of up to 10 kg, ensuring reliability and stability during operation. The stages feature M6 threaded holes for secure mounting and are designed to operate within a temperature range of 0 to 75 °C. Despite their advanced functionality, these stages maintain compliance with RoHS and CE standards, underscoring their commitment to environmental and safety regulations.
Translation Stage TSB28M
Specifications |
|
|---|---|
| Axes Of Motion: | One |
| Travel Range: | 28 mm |
| Load Capacity (Horizontal): | 10 kg |
| Load Capacity (Vertical): | 10 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | DC 24V, DC 48V |
Features
- Travel Options: Available in 25, 28, 50, and 60 mm travel lengths, providing flexibility for various applications.
- Load Capacity: Supports up to 10 kg, ensuring robust performance for demanding tasks.
- Micrometer Head Availability: Choose versions with a micrometer head for precise adjustments.
- Compatibility: Compatible with T-NA Series, T-LA Series, and NA11 Series actuators, allowing for versatile configurations including XY and XYZ setups.
- High Resolution: Manual micrometer versions offer 0.01 mm resolution for fine-tuned control.
- Mounting Options: Easily mountable in XY or XYZ configurations using AB90E (imperial) or AB90M (metric) angle brackets.
- Durable Construction: Ball bearing linear stages ensure smooth and reliable motion.
- Temperature Range: Operates effectively between 0 to 75 °C, suitable for various environments.
- Compliance: RoHS and CE compliant, meeting international safety and environmental standards.
- Compact and Lightweight: Weighs only 0.47 kg, making it easy to integrate into existing systems.
Applications
- Optical Alignment: Enables precise positioning for laser and optical system adjustments
- Laboratory Instrumentation: Ideal for integration into scientific measurement setups
- Automated Quality Control: Supports accurate and repeatable motion in inspection systems
- Multi-Axis Motion Systems: Easily configured in XY or XYZ stages for complex movement control
Frequently Asked Questions
The travel range of the Zaber TSB Series translation stages is either 28 mm or 60 mm.
The load capacity of the Zaber TSB Series translation stages is 10 kg.
The Zaber TSB Series translation stages are compatible with T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators.
Yes, the Zaber TSB Series translation stages can be used in XY stage configuration.
The versions with manual micrometer heads have a resolution of 0.01 mm.
