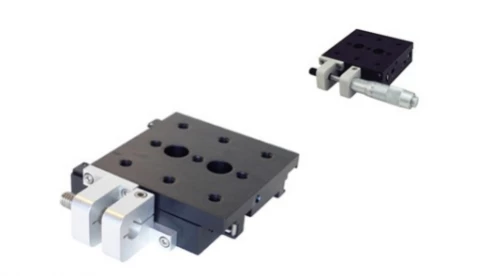

Translation Stage TSB28E14
Specifications |
|
|---|---|
| Axes Of Motion: | One |
| Travel Range: | 28 mm |
| Load Capacity (Horizontal): | 10 kg |
| Load Capacity (Vertical): | 10 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | DC 24V, DC 48V |
Features
- Travel Options: Available in 25, 28, 50, and 60 mm travel ranges.
- Load Capacity: Supports up to 10 kg load capacity.
- Micrometer Head Availability: Options with and without a micrometer head.
- Stage Compatibility: Compatible with T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators.
- Configuration Flexibility: Can be used in XY stage configuration, and with AB90E or AB90M angle brackets for XYZ configurations.
- Resolution: Manual micrometer versions offer 0.01 mm resolution.
- Mounting Interface: Features 1/4-20 threaded holes for easy mounting.
- Guide Type: Utilizes ball bearing for smooth motion.
- Compliance: RoHS and CE compliant for safety and environmental standards.
- Operating Temperature: Functions effectively within a range of 0 to 75 °C.
- Stage Parallelism: Maintains parallelism of less than 100 µm.
- Weight: Lightweight design at 0.47 kg (1.036 lb).
Applications
- Optical Alignment: Ideal for fine positioning of optics, lenses, and beam components
- Laboratory Research: Enables accurate sample or component positioning in experiments
- Industrial Automation: Integrates into inspection, testing, and assembly systems
- Multi-Axis Positioning Systems: Configurable in XY or XYZ setups for complex motion control
Frequently Asked Questions
The travel range of the Zaber TSB Series translation stages is either 28 mm or 60 mm.
The load capacity of the Zaber TSB Series translation stages is 10 kg.
The Zaber TSB Series translation stages are compatible with T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators.
Yes, the Zaber TSB Series translation stages can be used in XY stage configuration.
The versions of the Zaber TSB Series translation stages with manual micrometer heads have a resolution of 0.01 mm.
