Introducing Zaber's TSB Series of translation stages, a perfect solution for precise and reliable linear motion control. These ball bearing linear stages offer travel options of 28 mm or 60 mm, providing versatility for various applications. Designed for seamless integration, they are compatible with Zaber's T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators. This compatibility allows for easy configuration into an XY stage setup, enhancing their adaptability in complex systems.
The TSB Series also includes versions equipped with manual micrometer heads, offering travel distances of 25 mm or 50 mm and a fine resolution of 0.01 mm. These stages can be effortlessly mounted in both XY and XYZ configurations, utilizing either an AB90E (imperial) or AB90M (metric) angle bracket. This flexibility in mounting options ensures that the TSB Series can be tailored to meet the specific requirements of your project, making them an ideal choice for a wide range of motion control tasks.
Constructed with precision and durability in mind, the TSB Series stages are designed to handle up to 10 kg of load capacity. Their robust construction and reliable performance make them a dependable choice for applications requiring high precision and stability. Whether you are working in a laboratory setting or an industrial environment, the TSB Series provides a streamlined solution for your motion control needs, simplifying the process and enhancing your workflow efficiency.

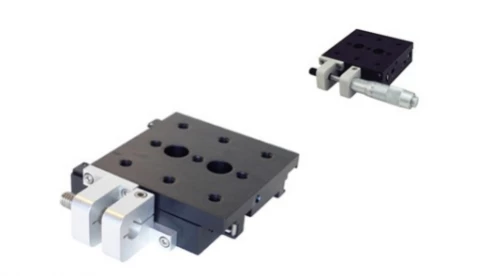

Translation Stage TSB28E
Specifications |
|
|---|---|
| Axes Of Motion: | One |
| Travel Range: | 28 mm |
| Load Capacity (Horizontal): | 10 kg |
| Load Capacity (Vertical): | 10 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | DC 24V, DC 48V |
Features
- Travel Options: Available in 25, 28, 50, and 60 mm travel lengths.
- Load Capacity: Supports up to 10 kg, ensuring robust performance for various applications.
- Micrometer Head Availability: Choose versions with or without a micrometer head for precise adjustments.
- Compatibility: Works seamlessly with Zaber's T-NA, T-LA, and NA11 Series actuators for versatile configurations.
- XY and XYZ Configurations: Easily mountable in XY or XYZ configurations using AB90E or AB90M angle brackets.
- Resolution: Manual micrometer versions offer 0.01 mm resolution for precise motion control.
- High Load Bearing: Maximum centered load capacity of 100 N (22.4 lb) and cantilever load up to 125 N•cm (177.0 oz•in).
- Ball Bearing Guide: Ensures smooth and reliable linear motion.
- Mounting Interface: Equipped with 1/4-20 threaded holes for secure mounting.
- Temperature Range: Operates efficiently within 0 to 75 °C.
- Precision: Stage parallelism of less than 100 µm (< 0.003937 ").
- Compliance: Meets RoHS and CE standards for safety and environmental regulations.
- Compact Design: Lightweight at 0.47 kg (1.036 lb), facilitating easy integration into systems.
Applications
- Optical Alignment: Enables precise adjustment of optical components and laser systems
- Laboratory Automation: Ideal for use in scientific instruments requiring accurate linear motion
- Manufacturing Inspection: Supports repeatable positioning in quality control setups
- Multi-Axis Motion Control: Forms the basis for XY and XYZ stage assemblies for complex movements
Frequently Asked Questions
The travel range of Zaber's TSB Series translation stages is 28 mm or 60 mm.
The load capacity of the translation stages is 10 kg.
The TSB Series translation stages are compatible with T-NA Series micro linear actuators, T-LA Series miniature linear actuators, and NA11 Series stepper linear actuators.
Yes, the translation stages can be used in XY stage configuration.
The versions with manual micrometer heads have a resolution of 0.01 mm.
