Scanner25-xy: Compact High-Load Piezoelectric Scanner Stage for Ultra-High Vacuum & Low Temperature Applications
Description

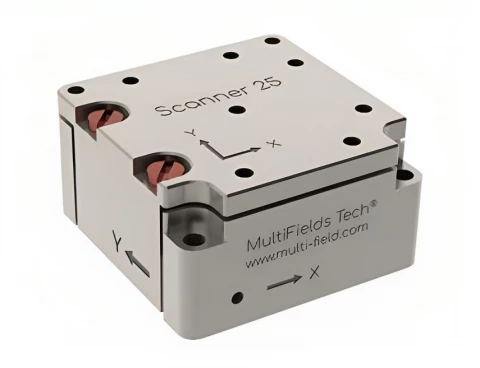

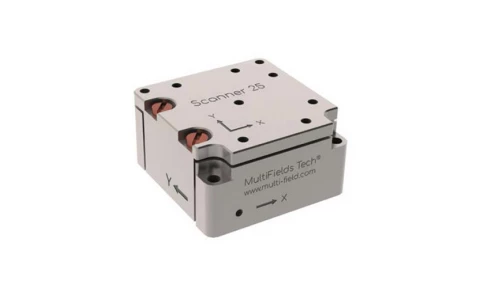

The Scanner25-xy epitomizes a high-load, compact, and advanced piezoelectric motion stage, specifically engineered for low-temperature applications. Part of the “25 mm Series”, this stage presents a unique blend of features such as ultra-high vacuum compatibility down to 2 E-11 mbar, operability in very low temperatures as low as 30 mK, and a non-magnetic composition of pure Ti and BeCu, rendering it compatible with an 18 Tesla magnetic field.
Boasting dimensions of 25x25x10 mm, it can support high loads up to 200g and offers a long travel range of 55*55 um at 300 K, with position sensing resolution up to 0.8 nm. Available in various versions including .HV, .ULT, and .UHV, the Scanner25-xy is versatile to meet diverse application requirements, especially in fields requiring high precision and adaptability to extreme conditions.
Scanner25-xy: Compact High-Load Piezoelectric Scanner Stage for Ultra-High Vacuum & Low Temperature Applications
Specifications |
|
|---|---|
| Axes Of Motion: | One |
| Travel Range: | 0.055 mm |
| Load Capacity (Horizontal): | 0.2 kg |
| Load Capacity (Vertical): | -- kg |
| Max Speed: | -- mm/s |
| Weight: | 0.023 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | Other |
| Capacitance @300 K: | 4 uF |
| Resolution: | 0.8 nm |
| Linearity Error: | Typical ~ 0.1 % |
Features
- Compact Design: Features a sleek, compact design with dimensions of 25x25x10 mm, ideal for applications where space is a premium.
- Ultra-High Vacuum & Low-Temperature Compatibility: Operates efficiently in ultra-high vacuum conditions down to 2 E-11 mbar and extreme low temperatures as low as 30 mK, making it versatile for a range of environments.
- Non-Magnetic Material Composition: Crafted from pure Ti and BeCu, ensuring compatibility with high magnetic fields up to 18 Tesla without interference.
- High Load Capacity: Capable of supporting high loads up to 200g, catering to applications requiring the handling of heavier components.
- Extended Travel Range: Offers a substantial travel range of 55*55 um at 300 K, facilitating movements over extended distances.
- High-Resolution Position Sensing: Boasts a position sensing resolution up to 0.8 nm, ensuring accurate and precise movements.
Applications
- Precision positioning
- Microscopy
- Optics and photonics research
- Semiconductor manufacturing
- Life science applications
- Metrology and inspection systems
- Work in a cryostat
