Motorized Linear Stage LSA10A-T4-MC04
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Zaber's LSA series stages are meticulously engineered to integrate seamlessly into the most compact spaces without compromising on performance. These stages are a testament to the fusion of size and power, featuring impressive capabilities such as speeds reaching up to 10 mm/s and thrusts of up to 3.5 kg. Their microstep size, less than 25 nm, coupled with a repeatability of under 1 µm, ensures precise and reliable ultra-fine positioning, making them an ideal choice for applications requiring exact motion control.
The LSA stages are equipped with a male D-sub 15 connector, facilitating straightforward plug-and-play functionality with Zaber’s X-MCB1 Series stepper motor controllers. This design choice underscores the brand's commitment to simplifying the user experience. Moreover, the comprehensive kits provided include complimentary software and all necessary accessories, ensuring that users can set up and operate the stage immediately upon unboxing.
These stages do not just prioritize compactness and performance; they also embody durability and precision. The precision lead screw drive system and ball bearing guide type contribute to its robust build and smooth operation. Additionally, features such as magnetic hall sensor limit or home sensing further enhance the operational efficiency and reliability of the LSA series stages.

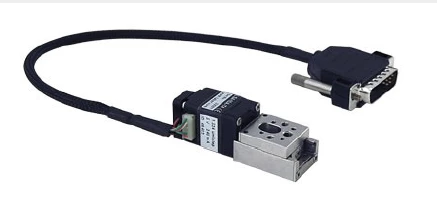

Motorized Linear Stage LSA10A-T4-MC04
Specifications |
|
|---|---|
| Axes Of Motion: | One |
| Travel Range: | 10 mm |
| Load Capacity (Horizontal): | 3.5 kg |
| Load Capacity (Vertical): | 3.5 kg |
| Max Speed: | 10 mm/s |
| Guiding Mechanism: | Other |
| Voltage Requirement: | Other |
Features
- Compact Design: The LSA series stages are engineered to fit into the smallest spaces without compromising on performance.
- High Speed and Thrust: Achieves speeds up to 10 mm/s and a peak thrust of 35 N, making it both fast and powerful.
- Ultra-Fine Positioning: Features a microstep size of less than 25 nm and repeatability of < 1 µm for precise positioning.
- Plug-and-Play Connectivity: Wired with a male D-sub 15 connector for easy integration with X-MCB1 Series stepper motor controllers.
- Complete Kit: Includes free software and all necessary accessories for immediate setup and operation.
- Precision Engineering: Equipped with a precision lead screw and ball bearing guide type for smooth motion.
- Versatile Mounting Options: Features M2, M3 threaded holes, and an M4 threaded center hole for flexible mounting.
- Compliance and Safety: RoHS and CE compliant, ensuring safety and environmental standards are met.
- Wide Operating Temperature Range: Designed to operate efficiently between 0 to 50 °C.
- Lightweight: Weighs only 0.115 kg, making it easy to handle and integrate into various systems.
Applications
- Microscopy: Precise sample positioning and focusing in constrained setups
- Optical Alignment: Ultra-fine adjustments for lenses, mirrors, and optical components
- Laboratory Automation: Compact automation systems requiring high precision
- Precision Manufacturing: Tasks requiring exact incremental movements with minimal backlash
Frequently Asked Questions
The LSA series stages have up to 10 mm/s speed.
The LSA series stages have up to 3.5 kg thrust.
The LSA series stages have a microstep size of less than 25 nm.
The LSA series stages have < 1 um repeatability.
The LSA series stages use a stepper (2 phase) motor.
