Description

The LS35z.Lab.O.R is a compact and high-performance piezoelectric motion unit designed for room temperature (RT) applications. It is part of the "Lab Series" by MultiFields Technologies and offers precise and reliable motion control.

The piezo-linear stage features a closed-loop control system and supports resistance type position sensing. With its ultra-quiet motion and 20 kHz drive frequency, it provides smooth and accurate movement. The LS35z.Lab.O.R is available in different versions, including non-magnetic, high vacuum, and ultra-high vacuum options, catering to various application requirements.

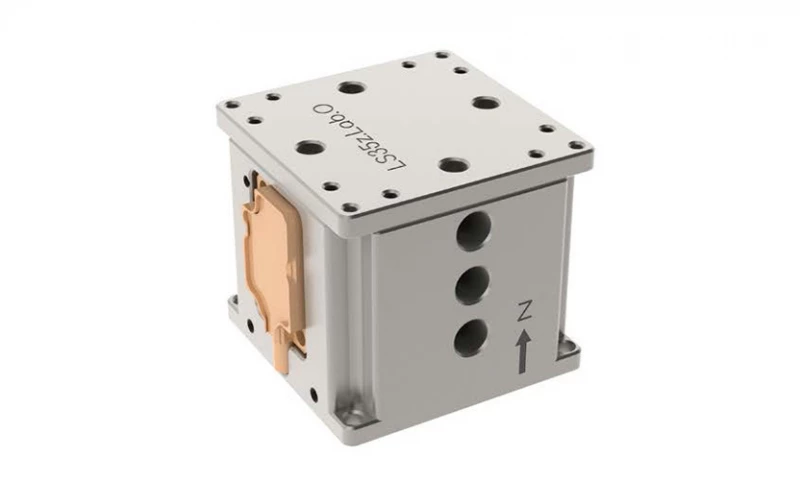

LS35z.Lab.O.R Vertical motion with special design, various versions supplied

Specifications

Axes Of Motion: One
Travel Range: 10 mm
Load Capacity (Horizontal): 0.5 kg
Load Capacity (Vertical): Not Specified
Max Speed: 10 mm/s
Weight: 0.2 kg
Guiding Mechanism: Other
Voltage Requirement: Other
Drive Frequency: Max. 20 kHz (very quiet)
Pitch: 0.3 mrad
Yaw: 0.3 mard
Sensor Type: Resistive Sensor (.R) | Optic Encoder (.O)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Very Quiet, 20 kHz drive frequency
  • Compact Design, 35 × 35 mm × 33 mm
  • Closed-loop control, Resistive Position Sensor (.R) or Optic Encoder (.O)
  • High Precision -Resolution (.O): 10 nm or 4.88 nm,2.44 nm,1nm, optional
  • Economy type -Resolution (.R): 100 - 200nm
  • Mini Step Size, ~ 10 nm
  • Multi-axis stacking adapters available
  • Controller compatible with rotary and tilting stage
  • Support Options, high vacuum (.HV)& ultra- high
    vacuum (.UHV)

Applications

  • Precision positioning
  • Microscopy
  • Optics and photonics research
  • Semiconductor manufacturing
  • Life science applications
  • Metrology and inspection systems
