Description
The Linear55-x-Slim Low Temperature Piezo Linear stage is a compact and high-performance piezoelectric motion unit designed for low temperature (LT) applications.
The piezo-linear stage features a closed-loop control system and supports a built-in position sensing. It provides smooth and accurate movement. The Linear55-x-Slim is available in different versions, including low temperature, vacuum options, catering to various application requirements.

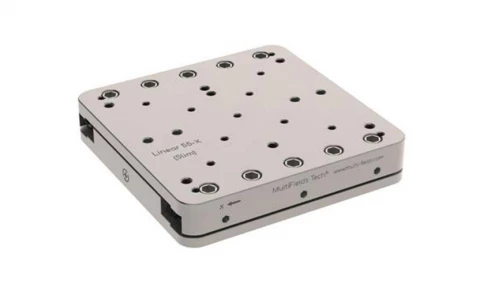

Linear55-x-Slim Low Temperature Piezo Linear Series Stage
Specifications
| Axes Of Motion: | One |
|---|---|
| Travel Range: | 30 mm |
| Load Capacity (Horizontal): | 2.5 kg |
| Load Capacity (Vertical): | Not Specified |
| Max Speed: | 2 mm/s |
| Weight: | 0.13 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | Other |
| Dynamic Force: | 3 N |
| Position Encoder: | Resistive Sensor |
| Encoder Range: | 30 mm |
| Sensor Resolution: | ~150 nm |
Download Data Sheet
Features
- Compact design, dimensions: 55 x 55 x 10.5 mm
- Ultra-high vacuum & very low temperature compatible: 2 E-11 mbar & 30 mK
- Non-magnetic material Composed of pure Ti & BeCu, compatible with the 18 Tesla magnetic field
- High loads & high thrusts: 2500 g & 3 N
- Long travel range: 30 mm
- Closed-loop control with position sensing up to 0.1 um resolution
Applications
- Precision positioning
- Microscopy
- Optics and photonics research
- Semiconductor manufacturing
- Life science applications
- Metrology and inspection systems
