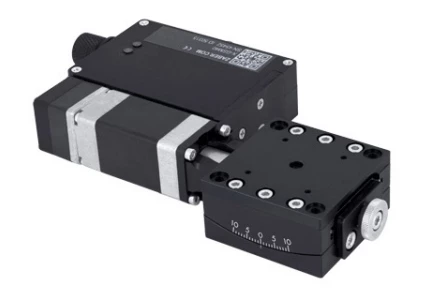

Motorized Goniometer Stage X-GSM40-E03
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Zaber's X-GSM-E Series represents a breakthrough in simplifying motion control with its innovative design and compact form factor. These computer-controlled, motorized goniometers are equipped with a built-in controller and motor encoder, making them a streamlined solution for precise angular positioning. Designed for ease of use, the X-GSM-E Series requires only a standard 48 V power supply, ensuring straightforward setup and operation. The inclusion of an indexed knob offers convenient manual control, providing versatility for users who prefer hands-on operation without a computer interface.
The X-GSM-E Series is engineered to integrate seamlessly with your existing systems. These stages connect effortlessly to the RS-232 or USB ports of any computer, and they can be daisy-chained with other Zaber products. This daisy-chain capability not only simplifies connectivity but also allows multiple X-Series products to share a single power supply, minimizing clutter and power requirements. The robust, locking 4-pin M8 connectors ensure secure connections between units, enhancing reliability in demanding applications.
With a low profile and small footprint, the X-GSM-E Series is ideal for setups where space is at a premium. These stages can be mounted to a flat surface or stacked together, offering a common center of rotation for two axes of angular motion. This flexibility makes them perfect for applications requiring precise and compact motion control solutions. As with all Zaber products, the X-GSM-E Series is designed for 'plug and play' operation, ensuring that users can quickly and easily integrate these devices into their workflows without extensive setup or configuration.
Motorized Goniometer Stage X-GSM40-E03
Specifications |
|
|---|---|
| Vacuum Compatible: | No |
| Microstep Size (default Resolution): | 2.836 urad |
| Built-in Controller: | Yes |
| Range Of Motion: | -10 – 10 deg |
| Accuracy (unidirectional): | 1.047 mrad |
| Maximum Speed: | 5 rpm |
| Minimum Speed: | 0.431 urad/s |
Features
- Compact and Versatile Design: Available in 40 mm and 60 mm center of rotation options, allowing for two axes of motion about a common center of rotation.
- High Load Capacity: Supports up to 30 N load capacity, ideal for various applications.
- Low Profile and Small Footprint: Perfect for applications requiring minimal space.
- Integrated Controller: Built-in controller for seamless operation and daisy-chaining with other Zaber products.
- Advanced Feedback System: Encoder position feedback with slip/stall detection and automatic recovery ensures precision.
- Easy Connectivity: Connects via RS-232 or USB ports, with convenient locking 4-pin, M8 connectors for secure connections.
- Plug and Play: Designed for easy setup and operation, requiring only a standard 48 V power supply.
- Manual and Computer Control: Indexed knob for manual control and versatile operation without a computer.
- Precision and Accuracy: Microstep size of 0.00016252216° with unidirectional accuracy of 0.06°.
- Reliable Performance: Repeatability of < 0.005° and backlash of < 0.01° for consistent results.
- Wide Speed Range: Maximum speed of 30 °/s and minimum speed of 0.00002472 °/s.
- High-Resolution Encoder: 200 CPR motor-mounted rotary quadrature encoder for detailed feedback.
- Robust Mechanical Design: Crossed roller bearing guide type and precision worm gear drive system.
- Safety and Compliance: RoHS and CE compliant for international standards.
- Temperature Range: Operates efficiently within 0-50 °C.
- Lightweight: Weighs only 0.285 kg, making it easy to handle and integrate.
Applications
- Optical Alignment Systems: Enables precise angular adjustment for optical components.
- Laser Beam Steering: Ideal for positioning mirrors or prisms in beam manipulation setups.
- Metrology and Inspection: Facilitates accurate angular positioning in measurement systems.
- Microscopy and Imaging: Adjusts samples or optics precisely for imaging optimization.
- Automated Research Setups: Integrates into automated systems for repeatable angular motion tasks.
Frequently Asked Questions
The load capacity of the X-GSM-E Series motorized goniometers is 30 N.
Yes, the X-GSM-E Series can be controlled manually with an indexed knob even without a computer.
The communication interface of the X-GSM-E Series is RS-232.
Yes, multiple X-GSM-E Series devices can be daisy-chained with any other Zaber products.
The accuracy of the X-GSM-E Series motorized goniometers is 0.06° (unidirectional).
