Description
Zaber's X-GSM-E Series motorized goniometers are a breakthrough in compact and efficient motion control. These devices are uniquely designed with a built-in controller and motor encoder, making them stand-alone units that require only a standard 48 V power supply. This innovation simplifies setup and operation, allowing for a seamless integration into various systems. The X-GSM-E Series is renowned for its low profile and small footprint, making it ideal for applications where space is a premium.
The X-GSM-E Series offers unparalleled versatility with its indexed knob, providing convenient manual control even without a computer. This feature, combined with the ability to connect to RS-232 or USB ports, ensures that users can easily integrate the goniometers into their existing setups. Furthermore, the daisy-chain capability allows multiple X-Series products to share a single power supply, enhancing efficiency and reducing clutter. The secure locking, 4-pin, M8 connectors ensure a reliable connection between units, supporting a robust and stable operation.
Designed for precision and reliability, the X-GSM-E Series goniometers are perfect for applications requiring a small profile. They can be mounted to a flat surface or stacked together to share a common center of rotation, enabling two axes of angular motion. With a focus on ease of use, these goniometers are 'plug and play,' ensuring that users can quickly set them up and start operating with minimal effort. The X-GSM-E Series exemplifies Zaber's commitment to simplifying motion control, providing a high-performance solution for demanding applications.

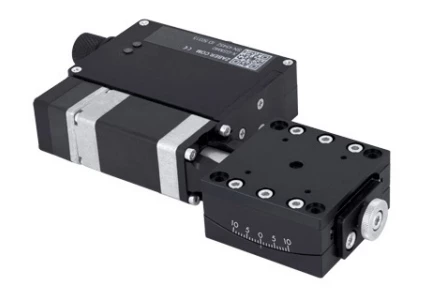

Motorized Goniometer Stage X-GSM60-E03
Specifications |
|
|---|---|
| Vacuum Compatible: | No |
| Microstep Size (default Resolution): | 2.836 urad |
| Built-in Controller: | Yes |
| Range Of Motion: | -10 – 10 deg |
| Accuracy (unidirectional): | 1.047 mrad |
| Maximum Speed: | 5 rpm |
| Minimum Speed: | 0.431 urad/s |
Features
- Compact Design: Available in 40 mm and 60 mm center of rotation options, allowing for two axes of motion about a common center of rotation.
- High Load Capacity: Supports up to 30 N load capacity.
- Space Efficient: Features a low profile and small footprint, ideal for applications where space is limited.
- Integrated Controller: Built-in controller allows for seamless integration and daisy-chaining with other Zaber products.
- Precision Feedback: Equipped with encoder position feedback for slip/stall detection and automatic recovery.
- Easy Connectivity: Connects via RS-232 or USB ports and features convenient locking 4-pin M8 connectors for secure connections.
- Manual Control: Includes an indexed knob for versatile manual operation without a computer.
- Plug and Play: Designed for easy setup and operation, requiring only a standard 48 V power supply.
- Accurate Motion: Offers a microstep size of 0.00016252216° with a range of +/-10° and repeatability of < 0.005°.
- Versatile Mounting: Can be mounted to a flat surface or stacked for shared rotation center, featuring M2 and M3 mounting holes.
- Compliance: RoHS and CE compliant, ensuring high safety and environmental standards.
- Durable Construction: Features a precision worm gear mechanical drive system and crossed roller bearing guide type.
- Temperature Range: Operates efficiently within a temperature range of 0-50 °C.
Applications
- Optical Alignment Systems: Enables precise angular adjustment for laser and optical component alignment.
- Metrology and Inspection Equipment: Ideal for angular positioning in inspection and calibration setups.
- Automated Research Systems: Supports repeatable positioning in laboratory automation.
- Multi-Axis Positioning Stages: Stacks easily with other stages for two-axis rotational applications.
- Precision Assembly Lines: Facilitates accurate part orientation in compact assembly environments.
Frequently Asked Questions
The load capacity of the X-GSM-E Series motorized goniometers is 30 N.
Yes, the X-GSM-E Series can be controlled manually with an indexed knob even without a computer.
The communication interface for the X-GSM-E Series is RS-232.
Yes, multiple X-GSM-E Series products can share a single power supply through daisy-chaining.
The accuracy of the X-GSM-E Series motorized goniometers is 0.06° (1.047000 mrad) unidirectional.
