High Vacuum Motorized X-GSM-SV2 Series Goniometer Stage
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Zaber's X-GSM-SV2 Series is a cutting-edge solution in the realm of motion control, specifically designed for high-vacuum environments. These motorized goniometers are compact, computer-controlled devices that integrate a built-in controller, making them stand-alone units that require only a standard 24 V or 48 V power supply. Their unique design allows them to connect seamlessly to the RS-232 or USB port of any computer, facilitating easy integration into various systems. Furthermore, the ability to daisy-chain with other Zaber products allows for streamlined power sharing, enabling multiple devices to operate efficiently from a single power source.
Engineered for simplicity and ease of use, the X-GSM-SV2 Series embodies Zaber's commitment to 'plug and play' technology. This makes setup and operation straightforward, even for complex multi-axis systems. When configured in an XY arrangement, these stages are specifically designed to stack with precision, thanks to the mounting alignment features incorporated into both the stage top and base. This thoughtful design enhances versatility and adaptability in various applications, ensuring that users can achieve precise motion control with minimal effort.
With vacuum compatibility up to 10-6 Torr and options for 40 mm and 60 mm centers of rotation, the X-GSM-SV2 Series offers unparalleled flexibility in motion control. These goniometers are ideal for scenarios requiring two axes of motion about a common center of rotation. The integration of a built-in controller and the ability to daisy-chain with other Zaber products simplifies the control architecture, requiring only four feedthrough wires to manage all units via a serial port when using an X-PIB adaptor. This innovative approach not only reduces setup complexity but also enhances the overall efficiency of motion control systems.

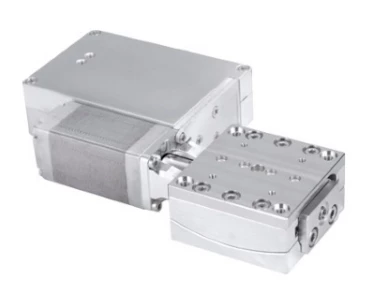

High Vacuum Motorized X-GSM-SV2 Series Goniometer Stage
Specifications |
|
|---|---|
| Vacuum Compatible: | Yes |
| Microstep Size (default Resolution): | 1 urad |
| Built-in Controller: | Yes |
| Range Of Motion: | -10 – 10 deg |
| Maximum Speed: | 5 rpm |
Features
- Vacuum Compatibility: Designed for high-vacuum environments up to 10-6 Torr.
- Center of Rotation Options: Available in 40 mm and 60 mm for dual-axis motion about a common center.
- Integrated Controller: Built-in controller allows seamless daisy-chaining with other Zaber products.
- Efficient Wiring: Only four feedthrough wires are needed to control all units in the daisy-chain via a serial port (with an X-PIB adaptor).
- Computer Connectivity: Connects easily to RS-232 or USB ports for straightforward operation.
- Power Sharing: Daisy-chain configuration allows multiple X-Series products to share a single power supply.
- Plug and Play Design: Easy setup and operation, ideal for multi-axis systems with stacking capabilities.
- Motion Range: +/-10° with a maximum speed of 30 °/s (5.0 rpm).
- Communication Protocols: Supports Zaber ASCII (default) and Zaber Binary protocols.
- Load Capacity: Supports a maximum centered load of 30 N (6.7 lb).
- Precision and Accuracy: Features crossed roller bearings and rotation center accuracy of < 0.1 mm (< 0.004 ").
- Power Requirements: Operates on a 24-48 VDC power supply.
- Motor Specifications: Stepper motor (2 phase) with 200 steps per revolution and precision worm gear drive.
- Sensors: Equipped with magnetic home and away sensors for accurate positioning.
- Mounting Interface: Compatible with M2 and M3 mounting holes.
- Compliance: RoHS and CE compliant for safety and environmental standards.
- Operating Temperature: Suitable for environments ranging from 0-50 °C.
- Lightweight Design: Weighs only 0.320 kg (0.705 lb) for easy integration.
Applications
- Beamline Instrumentation: Enables precise angular positioning of optics and samples in vacuum beamlines.
- Vacuum Chamber Experiments: Ideal for accurate sample rotation and alignment within vacuum systems.
- Optical Component Alignment: Facilitates fine angular adjustments in laser and photonics setups.
- Semiconductor Processing: Suitable for wafer alignment, inspection, and manipulation under vacuum.
- Research Laboratories: Supports multi-axis motion control for advanced experimental configurations.
Frequently Asked Questions
The X-GSM-SV2 Series Goniometer Stage is a high-vacuum compatible, computer-controlled, motorized goniometer with a compact size and built-in controller.
The X-GSM-SV2 Series Goniometer Stage requires only a standard 24 V or 48 V power supply.
Yes, the X-GSM-SV2 Series Goniometer Stage can be daisy-chained with any other Zaber products.
The X-GSM-SV2 Series Goniometer Stage can handle a maximum centered load of 30 N (6.7 lb).
The X-GSM-SV2 Series Goniometer Stage uses Zaber ASCII (Default) or Zaber Binary communication protocol.
