Description

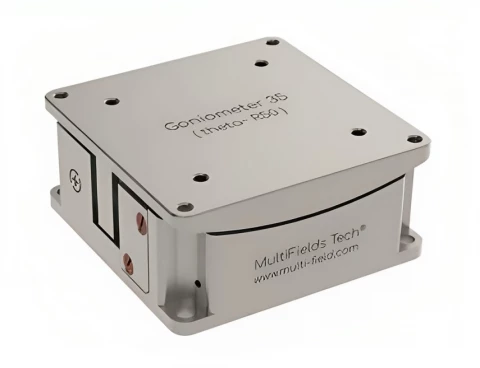

Introducing Goniometer35-theta from MultiFields Technologies, a compact and advanced tilter stage designed for precise piezoelectric motion under extreme conditions. With dimensions of 35*35*16 mm, this device is meticulously engineered for compatibility with ultra-high vacuum (2 E-11 mbar) and very low temperatures (30 mK).

Crafted with non-magnetic materials like pure Ti & BeCu, it stands resilient against magnetic fields up to 18 Tesla. The Goniometer35-theta is capable of supporting high loads up to 500g, offers a significant travel range of 12°, and features closed-loop control with position sensing up to a 0.5 m° resolution. Explore the unparalleled performance and precision of Goniometer35-theta for your demanding applications in science and technology.

Goniometer35-theta: Advanced Low-Temperature Piezoelectric Motion Tilter Stage

Visit the Zolix Instruments CO.,LTD Store

Specifications

Vacuum Compatible: Yes
Microstep Size (default Resolution): 0.5 urad
Built-in Controller: No
Range Of Motion: -0.6 – 0.6 deg
Accuracy (unidirectional): 30 mrad
Maximum Speed: 0.3 rpm
Minimum Speed: 0.5 urad/s
Dynamic Force: 3 N
Rotation Center To Top Plate: 50 mm
Position Encoder: Resistive Sensor
Encoder Range: 12 deg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Compact Design: Dimensions of 35*35*16 mm.
  • Compatibility: Ultra-high vacuum (2 E-11 mbar) & very low temperature (30 mK) compatible.
  • Material: Composed of non-magnetic pure Ti & BeCu.
  • Magnetic Field Compatibility: Suitable for up to 18 Tesla magnetic field.
  • Load and Rotation Center: Supports high loads up to 500 g & rotation center to top plate is 50 mm.
  • Travel Range: Offers a long travel range of 12°.
  • Position Sensing: Features closed-loop control with a resolution of up to 0.5 m°.

Applications

  • Precision positioning
  • Microscopy
  • Optics and photonics research
  • Semiconductor manufacturing
  • Life science applications
  • Metrology and inspection systems
  • Work in a cryostat

Frequently Asked Questions

What are the dimensions of the Goniometer35-theta?
The Goniometer35-theta has compact dimensions of 35*35*16 mm.
Is this product suitable for ultra-high vacuum and very low-temperature environments?
Yes, it is compatible with ultra-high vacuum conditions of 2 E-11 mbar and can operate in very low temperatures down to 30 mK.
What materials are used in the construction of this product, and is it compatible with high magnetic fields?
It is composed of non-magnetic pure Ti & BeCu, making it compatible with magnetic fields up to 18 Tesla.
Can you specify the load capacity and the distance from the rotation center to the top plate?
The Goniometer35-theta can handle high loads of up to 500 g, and the distance from the rotation center to the top plate is 50 mm.
What is the travel range and position sensing resolution of this goniometer?
It offers a long travel range of 12° and features closed-loop control with position sensing up to 0.5 m° resolution.

Got more questions? Use the inquiry form to ask the supplier directly.
