X-GSM Series Motorized Goniometer with Built-in Controller
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description

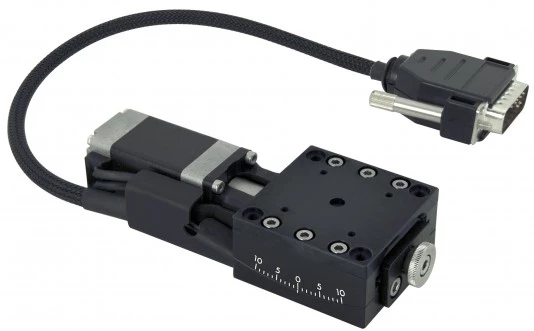

Zaber's X-GSM Series represents a breakthrough in motion control technology, offering a compact and efficient solution for precision angular positioning. These motorized goniometers are designed with a built-in controller, making them stand-alone units that require only a standard 48 V power supply. This innovative design simplifies setup and operation, ensuring that users can enjoy a seamless experience without the need for additional components or complicated wiring.
The X-GSM Series is engineered for versatility and ease of use. An indexed knob provides convenient manual control, allowing for operation even without a computer. This feature, combined with the ability to connect to the RS-232 or USB port of any computer, ensures that the X-GSM Series can be easily integrated into a variety of setups. Additionally, these devices can be daisy-chained with other Zaber products, sharing both power and data through secure locking, 4-pin, M8 connectors. This capability not only reduces clutter but also enhances the flexibility of the system, making it ideal for applications where space is at a premium.
Designed with a low profile and small footprint, the X-GSM Series is perfect for environments where space is limited. The stages can be mounted to a flat surface or stacked together to enable two axes of angular motion about a common center of rotation. This makes them particularly suitable for applications requiring precise and compact motion control solutions. True to Zaber's commitment to quality and user-friendliness, the X-GSM Series is 'plug and play,' ensuring that users can quickly and easily deploy the system in their operations.
X-GSM Series Motorized Goniometer with Built-in Controller
Specifications |
|
|---|---|
| Vacuum Compatible: | No |
| Microstep Size (default Resolution): | 2.836 urad |
| Built-in Controller: | Yes |
| Accuracy (unidirectional): | 1.047 mrad |
| Maximum Speed: | 5 rpm |
| Minimum Speed: | 0.431 urad/s |
Features

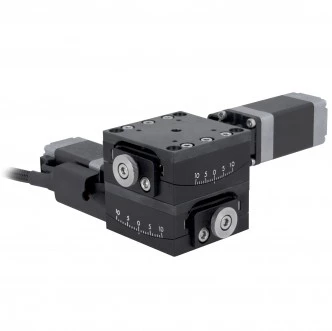

- Compact Design: Offers 40 mm and 60 mm center of rotation options, allowing for two axes of motion about a common center.
- High Load Capacity: Supports up to 30 N, making it suitable for various applications.
- Space-Efficient: Features a low profile and small footprint, ideal for tight spaces.
- Integrated Controller: Built-in controller allows for seamless operation and easy daisy-chaining with other Zaber products.
- Versatile Connectivity: Connects via RS-232 or USB ports, sharing power with other X-Series products through daisy-chaining.
- Precision and Accuracy: Offers a microstep size of 0.00016252216°, with an accuracy of 0.06° and repeatability of < 0.005°.
- Wide Speed Range: Capable of speeds from 0.00002472 °/s to 30 °/s, accommodating various motion requirements.
- Robust Construction: Utilizes crossed roller bearings and a precision worm gear for reliable performance.
- User-Friendly: Features an indexed knob for manual control, ensuring ease of use even without a computer.
- Secure Connections: Equipped with locking 4-pin M8 connectors for stable unit connections.
- Compliance and Safety: RoHS and CE compliant, ensuring quality and safety standards are met.
- Lightweight: Weighs only 0.271 kg, making it easy to handle and install.
Applications
- Optical Alignment Systems: Precise adjustment of mirrors, gratings, or optics in experimental setups.
- Material Testing: Accurate angular positioning for reflectometry or mechanical testing applications.
- Laser Beam Steering: Controlled adjustment of laser paths in optical instrumentation.
- Precision Assembly Automation: Ideal for tasks requiring controlled rotational positioning.
- Research Laboratories: Suitable for experiments needing compact, stable, and repeatable goniometer stages.
Frequently Asked Questions
The X-GSM Series devices connect to the RS-232 port or USB port of any computer and communicate using the Zaber ASCII (Default) or Zaber Binary protocol.
Yes, the daisy-chain feature allows multiple X-GSM Series devices to share a single power supply.
The accuracy of the X-GSM Series devices is 0.06° (unidirectional).
The load capacity of Zaber's X-GSM Series devices is 30 N.
The maximum speed of the X-GSM Series devices is 30 °/s.
