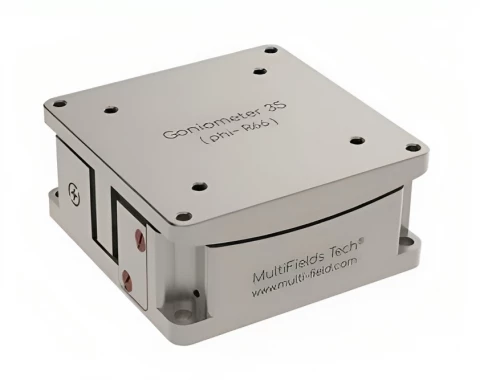

Introducing the Goniometer35-phi from MultiFields Technologies, a state-of-the-art piezoelectric motion tilter stage designed for precision and reliability. With its compact dimensions of 35*35*16 mm, this goniometer is suitable for applications where space is a premium, yet where high performance is essential. The product is compatible with ultra-high vacuum conditions of 2 E-11 mbar and can operate effectively at extremely low temperatures of 30 mK, making it versatile across various environments.

Constructed with non-magnetic materials, pure Ti & BeCu, the Goniometer35-phi is compatible with up to 18 Tesla magnetic fields, ensuring interference-free operation. It is capable of supporting high loads up to 500 g with a rotation center to the top plate of 66 mm, enabling diverse applications.

Featuring a long travel range of 10° and closed-loop control, it offers precise positioning with a resolution up to 0.5 m°, ensuring accuracy and repeatability in your applications. Whether used in cryogenics systems or in environments with high magnetic fields, this goniometer is designed to meet your needs with precision.

High-Precision Piezoelectric Motion Goniometer35-phi: Compact & Ultra-High Vacuum Compatible Tilter Stage

Specifications

Vacuum Compatible: Yes
Microstep Size (default Resolution): 0.5 urad
Built-in Controller: No
Range Of Motion: -0.5 – 0.5 deg
Accuracy (unidirectional): 30 mrad
Maximum Speed: 0.3 rpm
Minimum Speed: 0.5 urad/s
Dynamic Force: 3 N
Rotation Center To Top Plate: 66 mm
Position Encoder: Resistive Sensor
Encoder Range: 12 deg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

Ultra-high Vacuum & Low Temperature Compatibility: It is compatible with ultra-high vacuum conditions, specifically 2 E-11 mbar. The product can operate in very low temperatures, down to 30 mK.

Material Composition & Magnetic Field Compatibility: The Goniometer35-phi is composed of non-magnetic materials, specifically pure Ti and BeCu. It is compatible with high magnetic fields, up to 18 Tesla.

High Load Capacity & Rotation Center to Top Plate: The product can handle high loads, up to 500 g. The distance from the rotation center to the top plate is 66 mm.

Long Travel Range: The Goniometer35-phi offers a long travel range of 10°.

Position Sensing & Resolution: It features closed-loop control with position sensing. The product is capable of sensing up to 0.5 m° resolution.

Applications

  • Precision positioning
  • Microscopy
  • Optics and photonics research
  • Semiconductor manufacturing
  • Life science applications
  • Metrology and inspection systems
  • Work in a cryostat

Frequently Asked Questions

Is this goniometer suitable for ultra-high vacuum and low-temperature environments?
Yes, it is compatible with ultra-high vacuum conditions of 2 E-11 mbar and can operate at very low temperatures of 30 mK.
What materials is the Goniometer35-phi composed of, and is it compatible with magnetic fields?
It is composed of non-magnetic materials, pure Ti & BeCu, making it compatible with up to 18 Tesla magnetic fields.
What is the load capacity and rotation center to the top plate of the Goniometer35-phi?
The goniometer can support high loads up to 500 g, with a rotation center to the top plate of 66 mm.
Does the Goniometer35-phi offer closed-loop control and position sensing?
Yes, it features closed-loop control with position sensing up to 0.5 m° resolution for precise and accurate positioning.
What is the travel range of the Goniometer35-phi?
The Goniometer35-phi offers a long travel range of approximately 10°.
