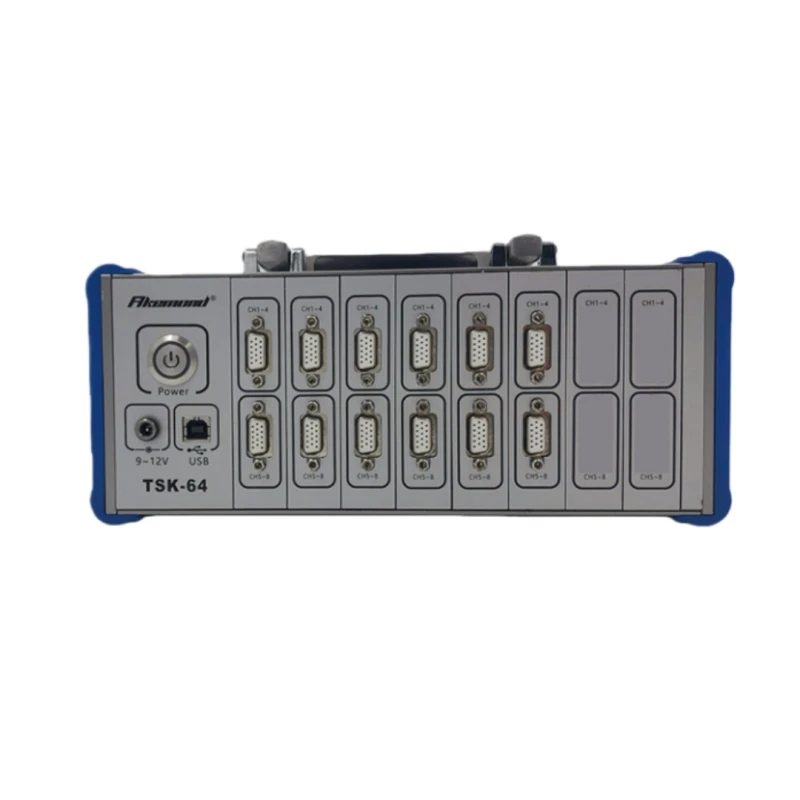

PCBA Strain Measurement Solution for Stress Testing Instruments TSK-64-48C-12

Specifications

Measurement Range: -55500 – 55500 uE
Accuracy: -0.3 – 0.3 %
Stability: 6 ppm/degC
Sampling Frequency: 10 KHz (per channel)
Operational Temperature Range: -40 – 70 degC
Max Channel: 64
Current Channel: 48
Impedance: 120 Ohm
Document icon Download Data Sheet Download icon

Features

  • Comprehensive PCBA Strain Measurement Solution: Our instruments provide a complete solution for measuring strain on printed circuit board assemblies (PCBA), ensuring reliability and performance.
  • Industry-Standard Compliance: Adheres to IPC/JEDEC-9704A guidelines, the benchmark for PCBA strain gage testing, ensuring your processes meet global standards.
  • Wide Application Range: Suitable for various stages of PCBA processing including SMT assembly, panel cutting, manual operations, rework, repair, connector installation, and testing (ICT, FCT, etc.).
  • Prevention of Common Failures: Identifies and helps prevent common mechanical stress-induced failures such as cracked solder balls, circuit damage, and substrate cracks.
  • Cost-Effective Problem Solving: Early detection of strain issues can save significant costs, following the 1-10-100 rule: $1 during design, $10 during manufacturing, and $100 during production.
  • Enhanced Product Reliability: By monitoring and controlling mechanical stresses, manufacturers can reduce defective products and improve the reliability of their products for end customers.
  • Adaptation to Modern Materials: Effectively manages strain in lead-free PCB laminate materials and high interconnect density designs, where warpage-induced damage is more prevalent.
  • Proven Track Record: Supported by major global manufacturers like Intel, IBM, HP, and Apple, ensuring trust and reliability in our measurement solutions.

Applications

  • Typical Processing Needs Strain Measurement:
    • SMT Assembly
    • Panel Cutting
    • Manual Operation
    • All Rework and Repair Process
    • Connector Installation
    • PCB Testing
    • ICT, FCT, or Equivalent Functional Test
    • Mechanical Assembly:
      • Heat Sink Assembly
      • PCI or Daughterboard Installation
      • DIMM (Dual In-line Memory Module) Installation
  • Common Modes of Failure Due to Mechanical Stress:
    • Cracked Solder Balls
    • Circuit Damage
    • Warped Pads
    • Cracked Substrates
    • Capacitor Y-cracks and 45° Cracks
  • PCBA Strain Gage Test Guidelines:
    • Issued by IPC and JEDEC in 2005
    • Revised Version A in 2012
    • Identify Defective Assembly and Test Processing
    • Provide Systematic Steps to Perform PCBA Strain Testing
  • Measurement Standards:
    • INTEL for Strain
  • Cost Implications:
    • A problem can be solved with 1 dollar during the design phase of PCBA, while it costs 10 dollars at least during manufacturing and 100 dollars more during production.
    • The later a problem is discovered, the more cost doubles increased. Rules that should be known: 1-10-100
  • Measurement Purpose:
    • Solder joints are sensitive to strain, under which PCB stress warpage deformation leads to fracture mechanism.
    • As lead-free new PCB laminate materials are widely applied and interconnect density rises, damage caused by warpage increased.
    • Incomplete cracking probably causes no instant PCBA failure, which cannot always be detected by functional tests.
    • Clients can reduce defective products for end customers by monitoring and controlling the mechanical stresses effectively during manufacturer's testing and assembly.
