Supplier of Stress Testing Instruments

In the intricate world of electronics manufacturing, ensuring the reliability and durability of printed circuit board assemblies (PCBAs) is paramount. As a leading supplier of stress testing instruments, we specialize in providing advanced solutions for PCBA strain measurement. Our expertise is rooted in understanding the critical role that mechanical stress plays during various stages of PCBA processing, including SMT assembly, panel cutting, and manual operations. By focusing on strain measurement, we help manufacturers identify potential points of failure before they become costly issues.

PCBA Strain Measurement Background

PCBAs undergo numerous stages of assembly and testing, where excessive mechanical stress can lead to failures such as cracked solder balls, circuit damage, and warped pads. These failures not only result in material losses but also impact investments in research and development, production, and joint investigations. Recognizing these challenges, global manufacturers like Intel, IBM, HP, and Apple have advocated for standardized testing methods, leading to the establishment of guidelines such as the IPC/JEDEC-9704A. This standard provides a framework for identifying defective assemblies and implementing systematic PCBA strain testing procedures.

PCBA Strain Gage Test: An Industry Benchmark

The PCBA Strain Gage Test, as outlined in the IPC/JEDEC-9704A guideline, has become an industry benchmark since its initial release in 2005 and subsequent revision in 2012. This test is crucial for identifying defects in assembly and test processes, offering a structured approach to strain measurement. By adhering to these standards, manufacturers can effectively monitor and control mechanical stresses, reducing the risk of defective products reaching end customers.

Measurement Purpose

The primary purpose of strain gage testing is to address the sensitivity of solder joints to mechanical stress. As the use of lead-free PCB laminate materials increases and interconnect densities rise, the potential for damage due to warpage also grows. Incomplete cracking may not always result in immediate PCBA failure, making it difficult to detect through functional tests alone. By implementing strain measurement, manufacturers can proactively manage mechanical stresses, ensuring higher quality and reliability in their products.

Cost Implications of Strain Measurement

Addressing strain-related issues early in the design phase can be remarkably cost-effective, with solutions potentially costing as little as one dollar. However, if these problems are only identified during manufacturing or production, the costs can escalate to ten or even one hundred dollars. This underscores the importance of early detection and intervention, as the financial implications of delayed problem-solving can be significant. Understanding the "1-10-100" rule is crucial for manufacturers aiming to optimize their processes and minimize costs.

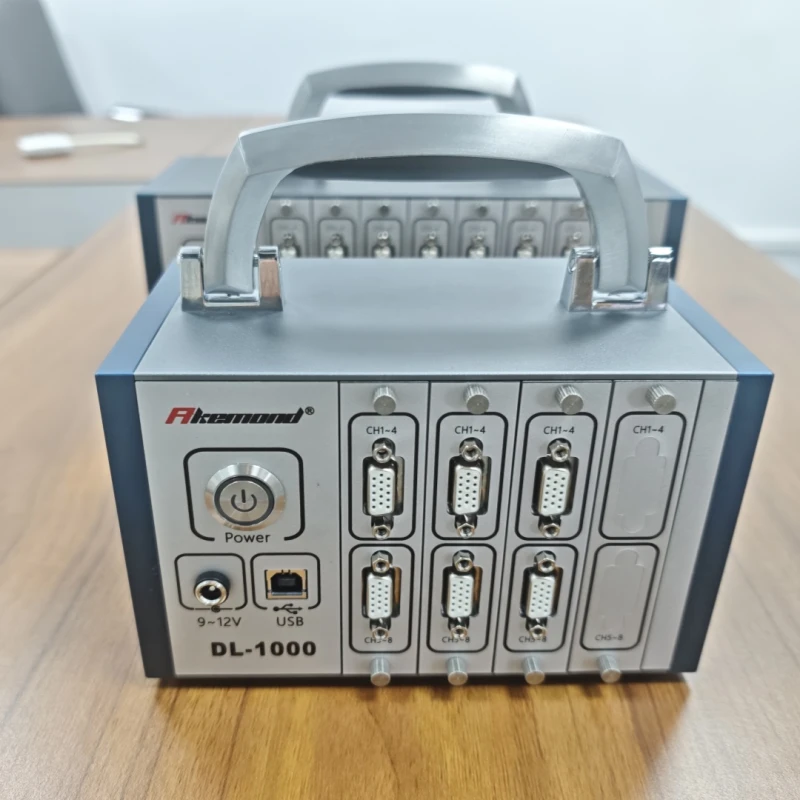

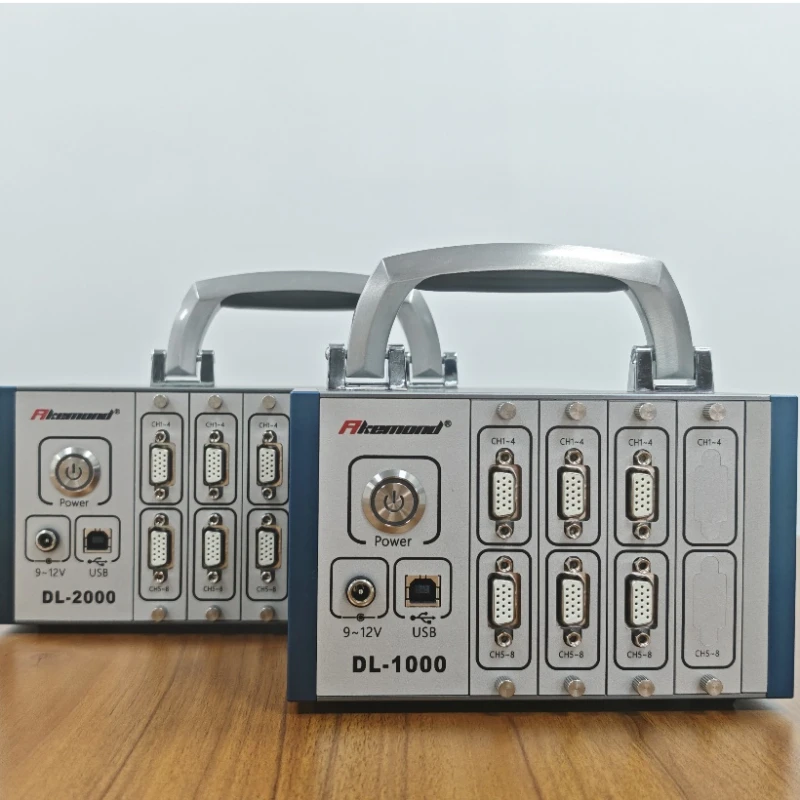

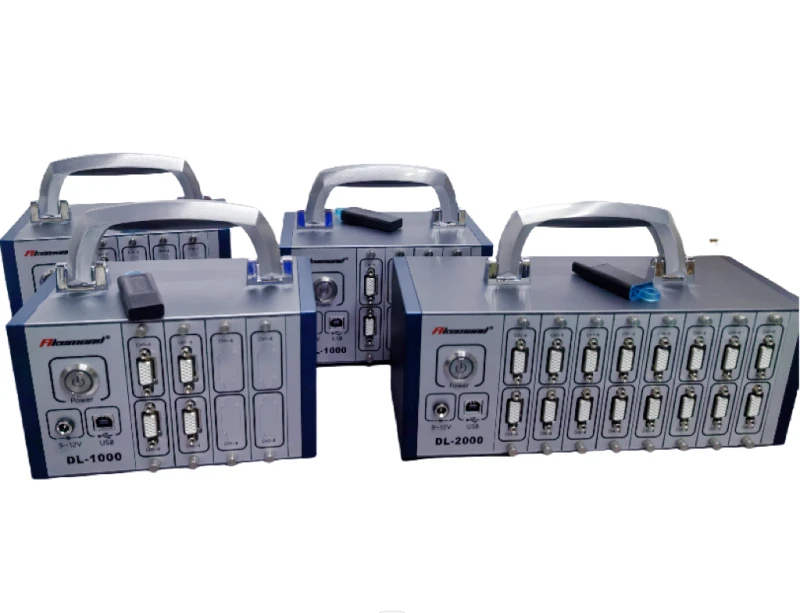

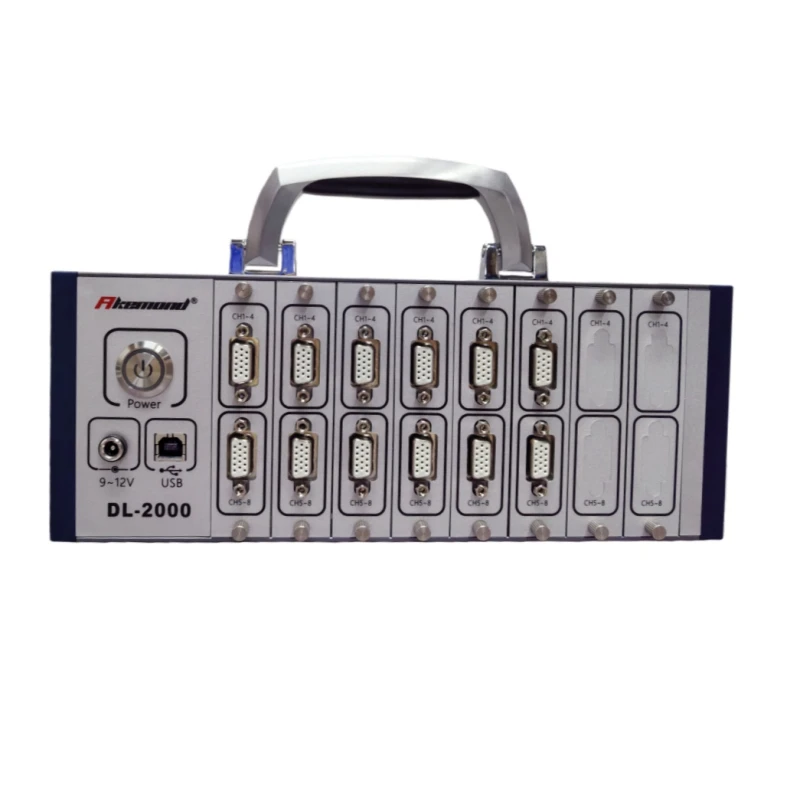

Alternative to Kyowa Portable PCB Strain Tester for Factory Use DL-2000-48C-12

Specifications

Device Funtion: Data Logger
Measurement Range: -55500 – 55500 uE
Accuracy: -0.3 – 0.3 %
Stability: 6 ppm/degC
Sampling Frequency: 10 KHz (per channel)
Operational Temperature Range: -40 – 70 degC
Max Channel: 64
Current Channel: 48
Impedance: 120 Ohm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Comprehensive Stress Testing Instruments: Our product is a leading solution for PCBA strain measurement, providing accurate and reliable data to ensure the integrity of your assemblies.
  • Industry-Standard Compliance: Adheres to IPC/JEDEC-9704A guidelines, ensuring your processes meet global standards set by industry leaders like Intel, IBM, HP, and Apple.
  • Versatile Application: Suitable for various stages of PCBA processing, including SMT assembly, panel cutting, manual operations, rework and repair processes, connector installation, and PCB testing.
  • Cost-Effective Solutions: Identifies potential issues early in the design phase, saving significant costs compared to addressing problems during manufacturing or production stages.
  • Advanced Measurement Techniques: Utilizes state-of-the-art strain gage testing to detect mechanical stress and prevent common failure modes such as cracked solder balls and circuit damage.
  • Enhanced Product Reliability: By monitoring and controlling mechanical stresses, manufacturers can reduce defective products and improve the reliability of their end products.
  • Proven Background and Expertise: Our solution is backed by extensive industry experience and a commitment to advancing PCBA strain measurement technology.

Applications

  • Typical Processing Needs Strain Measurement
    • SMT Assembly
    • Panel Cutting
    • Manual Operation
    • All Rework and Repair Process
    • Connector Installation
    • PCB Testing
    • ICT, FCT, or Equivalent Functional Test
    • Mechanical Assembly:
      • Heat Sink Assembly
      • PCI or Daughterboard Installation
      • DIMM (Dual In-line Memory Module) Installation
  • Printed Circuit Assembly Strain Gage Test Guideline
    • Issued by IPC and JEDEC in 2005
    • Revised Version A in 2012
    • Identify Defective Assembly and Test Processing
    • Provide Systematic Steps to Perform PCBA Strain Testing
  • Measurement Purpose
    • Solder joints are sensitive to strain, leading to fracture mechanisms.
    • Damage caused by warpage increases with lead-free PCB laminate materials and higher interconnect density.
    • Incomplete cracking may not cause immediate PCBA failure, undetectable by functional tests.
    • Monitoring and controlling mechanical stresses can reduce defective products for end customers.
  • Measurement Standards
    • Intel for Strain
  • Cost Implications
    • A problem solved during the design phase costs 1 dollar, 10 dollars during manufacturing, and 100 dollars during production.
    • The later a problem is discovered, the more the cost increases.
    • Rules to know: 1-10-100

Frequently Asked Questions

What is the purpose of PCBA strain measurement?
The purpose of PCBA strain measurement is to monitor and control mechanical stresses during manufacturing and assembly to prevent failures such as cracked solder balls, circuit damage, and warped pads.
What are some common failure modes due to mechanical stress in PCBAs?
Common failure modes due to mechanical stress in PCBAs include cracked solder balls, circuit damage, warped pads, cracked substrates, and capacitor Y-cracks.
Why is strain gage testing important in PCBA manufacturing?
Strain gage testing is important because it helps identify defective assembly and test processing, and provides systematic steps to perform PCBA strain testing, reducing defective products and associated costs.
What is the IPC/JEDEC-9704A guideline?
The IPC/JEDEC-9704A guideline is a standard for printed circuit assembly strain gage testing, issued by IPC and JEDEC, which provides guidelines for identifying defective assembly and test processing.
How does the cost of addressing PCBA issues change over time?
Addressing PCBA issues costs significantly more as time progresses: $1 during the design phase, $10 during manufacturing, and $100 during production, following the 1-10-100 rule.
What are the benefits of monitoring mechanical stresses during PCBA testing and assembly?
Monitoring mechanical stresses helps reduce defective products for end customers by preventing incomplete cracking and other failures that may not be detected by functional tests.
Which companies have promoted the adoption of PCBA strain measurement standards?
Global manufacturers such as Intel, IBM, HP, and Apple have promoted the adoption of PCBA strain measurement standards, which have become part of the IPC and JEDEC guidelines.

Got more questions? Use the inquiry form to ask the supplier directly.
