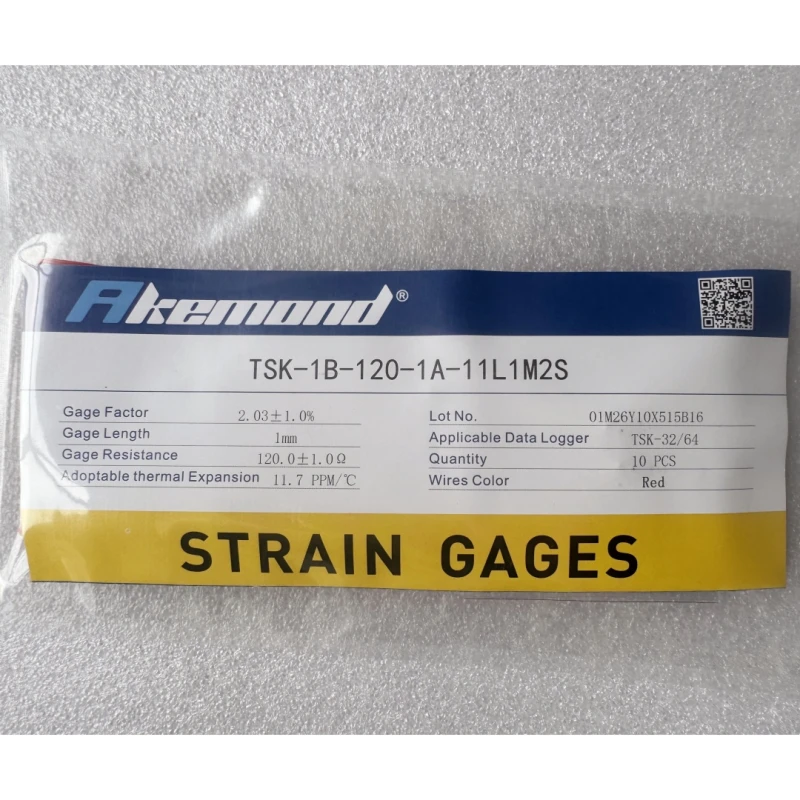

Uniaxial Strain Gauge TSK-1B-120-1A-11L1M2S

Specifications

Device Funtion: Strain Gauge
Measurement Range: -55500 – 55500 uE
Accuracy: -0.3 – 0.3 %
Stability: 6 ppm/degC
Sampling Frequency: 10 KHz (per channel)
Operational Temperature Range: -40 – 70 degC
Gauge Type: Uniaxial
Impedance: 120 Ohm
Grid Length: 1.1*1.0mm
Base Size: 3.9 x 1.7 mm

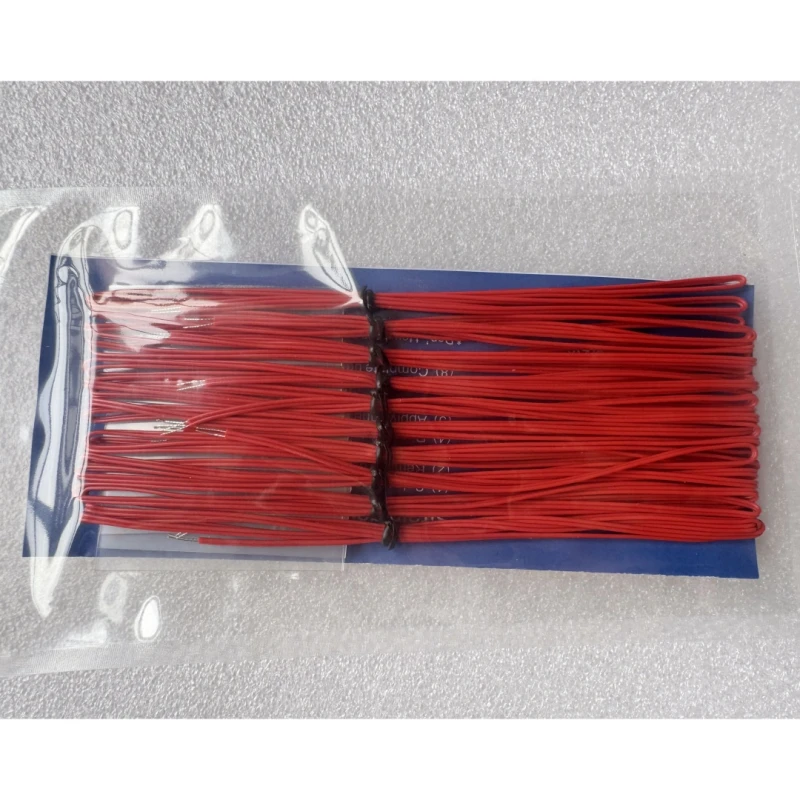

Insulated Wire: 2 cm
Extension Wire: 100 cm
Document icon Download Data Sheet Download icon

Features

  • Comprehensive Stress Testing Instruments: Our product is a leading solution provider for PCBA strain measurement, ensuring precise and reliable results.
  • Industry-Standard Compliance: Adheres to IPC/JEDEC-9704A guidelines, recognized globally by top manufacturers like Intel, IBM, HP, and Apple.
  • Versatile Application: Suitable for various stages including SMT assembly, panel cutting, manual operations, rework and repair processes, connector installation, and PCB testing.
  • Cost-Effective Solution: Address potential issues early in the design phase to save costs significantly, following the 1-10-100 rule.
  • Enhanced Reliability: Identifies defective assembly and test processes, providing systematic steps for effective PCBA strain testing.
  • Prevention of Common Failures: Helps prevent cracked solder balls, circuit damage, warped pads, and other mechanical stress-related failures.
  • Advanced Measurement Purpose: Monitors and controls mechanical stresses to reduce defective products, ensuring high-quality outcomes for end customers.
  • Proactive Problem Solving: Detects issues that might not be immediately apparent through functional tests, preventing long-term damage.

Applications

  • Typical Processing Needs Strain Measurement
    • SMT Assembly
    • Panel Cutting
    • Manual Operation
    • All Rework and Repair Process
    • Connector Installation
    • PCB Testing
    • ICT, FCT, or Equivalent Functional Test
    • Mechanical Assembly:
      • Heat Sink Assembly
      • PCI or Daughterboard Installation
      • DIMM (Dual In-line Memory Module) Installation
  • Printed Circuit Assembly Strain Gage Test Guideline
    • IPC/JEDEC-9704A
  • Common Modes of Failure Due to Mechanical Stress
    • Cracked Solder Balls
    • Circuit Damage
    • Warped Pads
    • Cracked Substrates
    • Capacitor Y-Cracks and 45° Cracks
  • PCBA Strain Gage Test as an Industry Benchmark
    • Issued by IPC and JEDEC in 2005
    • Revised Version A in 2012
    • Identify Defective Assembly and Test Processing
    • Provide Systematic Steps to Perform PCBA Strain Testing
  • Measurement Standards
    • Intel for Strain
  • Cost Implications of Strain Measurement
    • A problem solved with $1 during design phase costs $10 during manufacturing and $100 during production.
    • The later a problem is discovered, the more costs double.
  • Measurement Purpose
    • Solder joints are sensitive to strain, leading to fracture mechanisms.
    • Lead-free PCB laminate materials and increased interconnect density increase damage from warpage.
    • Incomplete cracking may not cause instant PCBA failure, undetectable by functional tests.
    • Clients can reduce defective products by monitoring and controlling mechanical stresses during testing and assembly.
