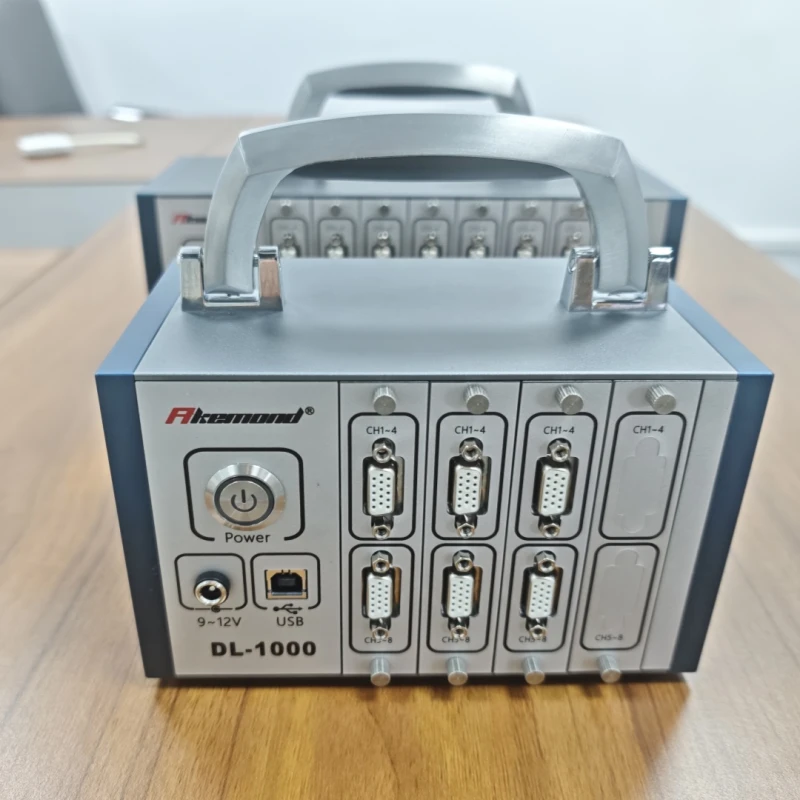

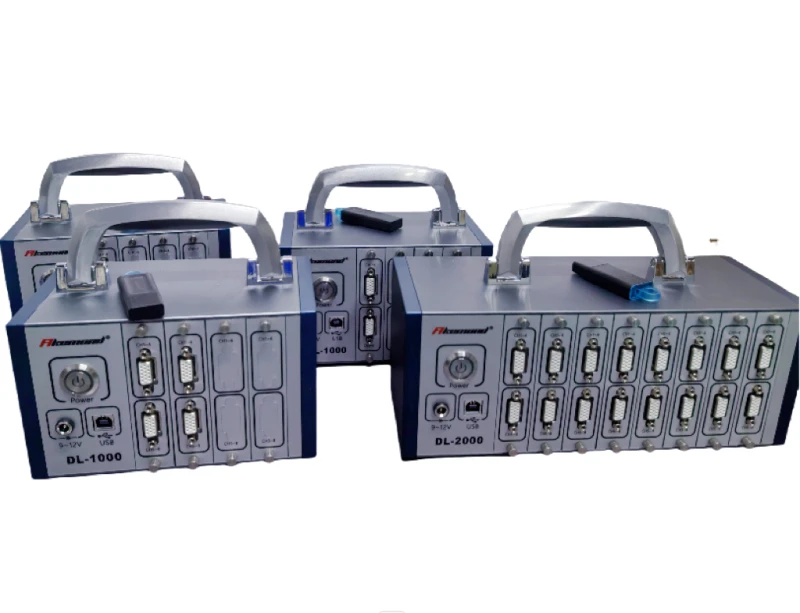

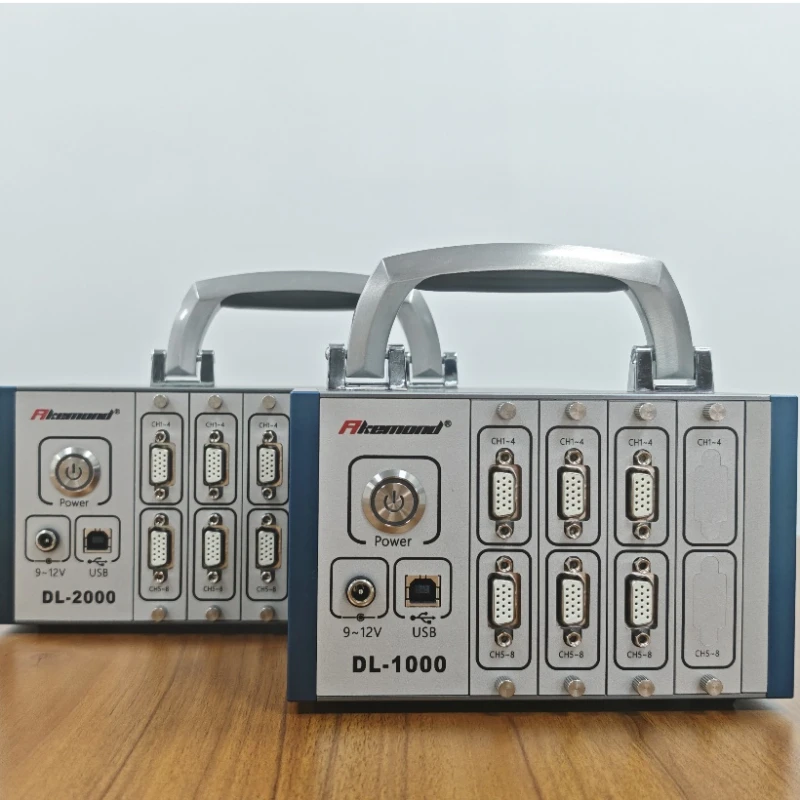

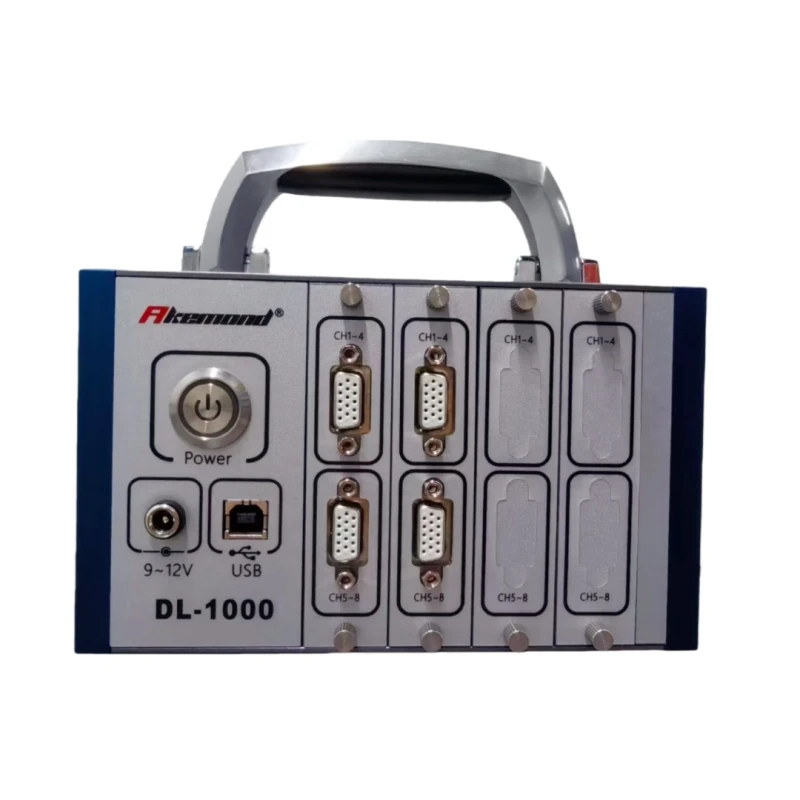

PCBA Strain Measurement Data Logger DL-1000-16C-12

Specifications

Device Funtion: Data Logger
Measurement Range: -55500 – 55500 uE
Accuracy: -0.3 – 0.3 %
Stability: 6 ppm/degC
Sampling Frequency: 10 KHz (per channel)
Operational Temperature Range: -40 – 70 degC
Max Channel: 32
Current Channel: 16
Impedance: 120 Ohm
Document icon Download Data Sheet Download icon

Features

  • Comprehensive Stress Testing Instruments: Our supplier provides a wide range of stress testing instruments specifically designed for PCBA strain measurement.
  • PCBA Strain Measurement Solutions: Tailored solutions for measuring strain on printed circuit board assemblies (PCBA) to ensure reliability and performance.
  • Industry-Standard Compliance: Adheres to IPC/JEDEC-9704A guidelines, ensuring compliance with industry standards for strain gage testing.
  • Wide Application Range: Suitable for various processes including SMT assembly, panel cutting, manual operations, rework, repair, and mechanical assembly.
  • Prevent Common Failures: Identifies potential issues such as cracked solder balls, circuit damage, and substrate cracks to prevent costly failures.
  • Cost-Effective Testing: Implementing strain measurement during the design phase can save significant costs compared to addressing issues during manufacturing or production.
  • Enhanced Product Reliability: By monitoring and controlling mechanical stresses, manufacturers can reduce defective products and improve end-customer satisfaction.
  • Proven Testing Methodology: Provides systematic steps for performing PCBA strain testing, helping to identify defective assembly and test processes.
  • Global Manufacturer Endorsement: Actively promoted by leading global manufacturers such as Intel, IBM, HP, and Apple.
  • Strain Sensitivity: Addresses the sensitivity of solder joints to strain, preventing warpage deformation and fracture mechanisms.

Applications

  • Typical processing needs strain measurement
    • SMT Assembly
    • Panel Cutting
    • Manual Operation
    • All Rework and Repair Process
    • Connector Installation
    • PCB Testing
    • ICT, FCT, or Equivalent Functional Test
    • Mechanical assembly:
      • Heat sink assembly
      • PCI or daughterboard installation
      • DIMM (Dual In-line Memory Module) Installation
  • Printed Circuit Assembly Strain Gage Test Guideline
    • IPC/JEDEC-9704A
  • Common modes of failure due to mechanical stress:
    • Cracked solder balls
    • Circuit damage
    • Warped pads
    • Cracked substrates
    • Capacitor Y-cracks and 45° cracks
  • PCBA Strain Gage Test To Become an Industry Benchmark
    • IPC/JEDEC-9704A
    • 2005 Issued by IPC and JEDEC
    • 2012 Issue Revised Version A
    • Identify defective assembly and test processing
    • Provide systematic steps to perform PCBA strain testing
  • Measurement Purpose - Why Strain Gage Test?
    • Solder joints are sensitive to strain, under which PCB stress warpage deformation leads to fracture mechanism.
    • As lead-free new PCB laminate materials are widely applied and interconnect density rises, damage caused by warpage increased.
    • Incomplete cracking probably causes no instant PCBA failure, which cannot always be detected by functional tests.
    • Clients can reduce defective products for end customers by monitoring and controlling the mechanical stresses effectively during manufacturer's testing and assembly.
