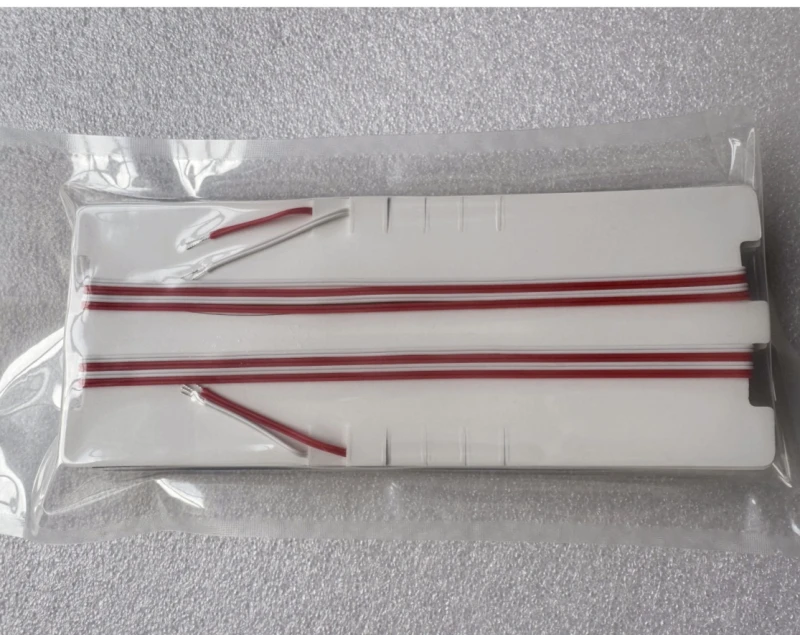

Thumbnail of Qualitykon Biaxial Strain Gauge for BGA Stress Test Equipment for Philippines PCBA photo 1

Description

Supplier of Stress Testing Instruments

In the intricate world of electronics manufacturing, ensuring the reliability and durability of Printed Circuit Board Assemblies (PCBA) is paramount. As a leading supplier of stress testing instruments, we provide comprehensive solutions for PCBA strain measurement, a critical aspect in the production and testing phases of electronic components. Our expertise in this field helps manufacturers identify and mitigate potential issues that could lead to costly failures.

PCBA Strain Measurement Background

During the various stages of Surface Mount Technology (SMT), Dual In-line Package (DIP) assembly, and reliability testing, PCBAs are subjected to mechanical stresses that can lead to failure. Common failure modes include cracked solder balls, circuit damage, warped pads, and substrate cracks. These failures not only result in material losses but also impact investments in research and development, production, and quality assurance processes. Our strain measurement solutions are designed to address these challenges effectively.

Industry Standards and Guidelines

Under the guidance of global industry leaders such as Intel, IBM, HP, and Apple, strain measurement has become a standardized practice, as outlined in the IPC/JEDEC-9704A guidelines. These standards provide a systematic approach to identifying defective assembly and testing processes, ensuring that manufacturers can maintain high-quality standards and reduce the risk of product failures.

The Importance of Early Detection

Addressing potential strain-related issues during the design phase of PCBA can be remarkably cost-effective. A problem that costs a mere dollar to fix during design could escalate to ten dollars during manufacturing and a hundred dollars during production. This 1-10-100 rule underscores the importance of early detection and intervention, making PCBA strain measurement an essential component of the manufacturing process.

Purpose of Strain Gage Testing

Strain gage testing is crucial for several reasons. Solder joints are particularly sensitive to strain, and any stress-induced warpage can lead to fractures. With the increasing use of lead-free PCB laminate materials and higher interconnect densities, the risk of damage due to warpage has risen. Moreover, incomplete cracking may not cause immediate failure, making it difficult to detect through functional tests alone. By effectively monitoring and controlling mechanical stresses, manufacturers can significantly reduce the incidence of defective products reaching end customers.

Qualitykon Biaxial Strain Gauge for BGA Stress Test Equipment for Philippines PCBA

Visit the Dongguan Veshay Laser Technology Co., Ltd Store

Specifications

Device Funtion: Strain Gauge
Measurement Range: -55500 – 55500 uE
Accuracy: -0.3 – 0.3 %
Stability: 6 ppm/degC
Sampling Frequency: 10 KHz (per channel)
Operational Temperature Range: -40 – 70 degC
Gauge Type: Biaxial
Impedance: 120 Ohm
Grid Length: 1.1 X 1.0 mm
Base Size: 5mm
Insulated Wire: 30 cm
Extension Wire: 100 cm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Comprehensive Stress Testing Instruments: Our product is a leading solution for measuring strain in printed circuit board assemblies (PCBA), ensuring reliability and performance.
  • PCBA Strain Measurement Expertise: We provide a complete solution for measuring strain in PCBAs, crucial for maintaining the integrity of electronic components.
  • Industry Standards Compliance: Our testing methods adhere to the IPC/JEDEC-9704A guidelines, recognized globally by major manufacturers like Intel, IBM, HP, and Apple.
  • Application Versatility: Suitable for various processes including SMT assembly, panel cutting, manual operations, rework and repair, connector installation, and mechanical assembly.
  • Preventive Cost Efficiency: Addressing strain issues early in the design phase can save significant costs, following the 1-10-100 rule: $1 during design, $10 during manufacturing, and $100 during production.
  • Critical Failure Prevention: Identifies potential failure modes such as cracked solder balls, circuit damage, and substrate cracks, preventing costly defects and ensuring product longevity.
  • Advanced Measurement Purpose: Our strain gage tests are crucial for detecting warpage and deformation in PCBs, especially with the rise of lead-free materials and higher interconnect densities.
  • Enhanced Product Quality: By monitoring and controlling mechanical stresses, manufacturers can significantly reduce defective products, ensuring high-quality outcomes for end customers.

Applications

Applications of PCBA Strain Measurement & Strain Gage Testing

PCBA strain measurement systems are critical quality and reliability tools for electronics manufacturers, OEMs, ODMs, EMS providers, and reliability labs. In line with IPC/JEDEC‑9704A “Printed Circuit Assembly Strain Gage Test Guideline” and similar best‑practice standards promoted by Intel, IBM, HP, Apple and others, these instruments are used to quantify mechanical strain throughout the entire PCB and PCBA lifecycle.

1. Surface Mount Technology (SMT) and Through‑Hole Assembly
  • Reflow soldering process validation – Evaluate strain on BGA, CSP, QFN, and other fine‑pitch components during:
    • Conveyor transfer and support tooling through the reflow oven
    • Board warpage due to thermal gradients
    • Cooling zones where residual stress and bending often peak
  • Wave / selective soldering strain control – Measure deformation and shock to:
    • Through‑hole connectors and press‑fit components
    • Mixed‑technology boards (SMT + DIP)
    • Heavy copper or high‑layer‑count boards that are more prone to warpage
  • Pick‑and‑place handling optimization – Quantify strain due to:
    • Board clamping and support fingers
    • Board transfer and nest design
    • Vacuum nozzles and component placement forces
2. Panelization, Depaneling and PCB Mechanical Processing
  • V‑score and tab‑routing depaneling – Determine peak strain during:
    • Manual snapping of scored panels
    • Use of depaneling fixtures, jigs, and bending tools
    • Router and saw depaneling processes
    This is widely used to prevent cracked solder joints, pad lifting and substrate fracture near scoring lines.
  • Panel cutting and singulation tool development – Optimize:
    • Blade geometry and feed rates
    • Support fixture design and clamping locations
    • Automation algorithms for stress‑minimized depaneling
  • Scoring depth and routing path verification – Ensure:
    • Strain remains below IPC/JEDEC‑9704A limits during separation
    • Mechanical loading does not trigger latent defects (Y‑cracks, 45° cracks)
3. Manual Operations, Rework and Repair
  • Hand rework and component replacement – Measure strain introduced by:
    • Manual handling, twisting, or flexing during rework
    • Local heating with soldering irons, hot‑air nozzles and rework stations
    • Removal and installation of large BGAs, sockets, and connectors
  • Connector and socket insertion forces – Characterize:
    • Board bending caused by mating and unmating high‑pin‑count connectors
    • Mechanical stress around high‑density interconnects and press‑fit pins
  • Field and service operations – Evaluate risk of:
    • Cracked solder joints from repeated insertion / extraction cycles
    • Damage caused by improper handling during maintenance
4. In‑Circuit Test (ICT), Functional Test (FCT) and Equivalent Test Fixtures
  • Bed‑of‑nails ICT fixture optimization – Measure strain during:
    • Fixture closure and probe engagement
    • Board bending due to insufficient support pins or misaligned probes
    • High probe density areas around BGAs, memory, and processors
  • Functional test fixtures (FCT, system‑level test) – Assess:
    • Clamping and locking mechanisms in test jigs
    • Connector engagement during powered tests
    • Repeated test cycling and long‑term mechanical fatigue
  • Inline and end‑of‑line testers – Implement:
    • Design rules to keep test‑induced strain within standard limits
    • Qualification of new fixtures before mass production
5. Mechanical Assembly of Systems and Sub‑Systems
  • Heat sink and thermal solution assembly – Optimize:
    • Mounting torque, screw patterns and spring‑clip forces
    • Contact pressure on CPUs, GPUs and power devices
    • Board bending under tall or heavy thermal assemblies
  • PCIe cards, daughterboards and mezzanine boards – Validate:
    • Strain during insertion, locking and removal from slots
    • Bracket and chassis alignment to avoid board twisting
    • Compliance with system‑level mechanical design guidelines
  • Memory module (DIMM) installation – Measure:
    • Board curvature when engaging DIMM latches
    • Stress on solder joints and vias under memory sockets
  • Final system assembly and enclosure integration<

Frequently Asked Questions

What is PCBA strain measurement and why is it important in electronics manufacturing?
PCBA strain measurement is the process of quantifying mechanical stress and deformation on a printed circuit board assembly (PCBA) using strain gauges or equivalent sensors. During SMT assembly, wave/DIP, panel depanelization, functional testing, connector insertion, heat sink mounting, or mechanical assembly, the board can bend or twist. Excessive strain can crack solder balls, damage circuits, warp pads, fracture substrates, and cause capacitor Y‑cracks or 45° cracks. Many of these defects may not show up in functional tests immediately, but they significantly reduce long‑term reliability. By measuring and controlling strain per IPC/JEDEC‑9704A guidelines, manufacturers prevent latent defects, improve product robustness, and avoid costly field failures and recalls.
Which PCBA processes require strain measurement according to IPC/JEDEC‑9704A guidelines?
According to IPC/JEDEC‑9704A Printed Circuit Assembly Strain Gage Test Guideline and common industry practice (Intel, IBM, HP, Apple, etc.), strain should be evaluated in all operations that mechanically load the board, including: 1) SMT assembly and reflow, especially for large BGAs, CSPs, and fine‑pitch devices; 2) DIP and through‑hole soldering; 3) panel cutting and depanelization (V‑score, tab‑route, punching); 4) manual handling, rework, and repair; 5) connector installation and mating/demating; 6) ICT, FCT, and other in‑circuit or functional tests with test fixtures; and 7) mechanical assembly of heat sinks, stiffeners, PCI or daughtercards, and DIMMs. Testing these steps ensures that no individual process causes strain beyond safe limits.
What failures can excessive PCBA strain cause and how does strain testing help prevent them?
Excessive mechanical strain on a PCBA can cause several failure modes: cracked solder balls (especially under BGAs), lifted or warped pads, fractured PCB substrates, inner‑layer circuit damage, and characteristic capacitor failures such as Y‑cracks and 45° cracks. Some cracks are only partial and do not cause immediate open or short circuits, so conventional ICT or functional tests may still pass the assembly. Over time, vibration, thermal cycling, and normal use can propagate these defects into complete failures in the field. Strain testing identifies high‑risk processes and locations on the board, allowing engineers to optimize board design, panelization, fixtures, and assembly procedures so that measured strain stays below IPC/JEDEC‑9704A limits, effectively preventing these latent reliability issues.
How does PCBA strain gage testing work in practice?
In practical PCBA strain gage testing, small foil strain gauges are bonded at critical locations on the PCB surface—typically near large BGAs or connectors, along high‑stress panel edges, or at known test/assembly load points. The gauges convert mechanical deformation into an electrical signal, which is recorded by a data acquisition system while a real assembly process is executed (e.g., depanelization, ICT fixture engagement, connector insertion, or heat sink attachment). The captured microstrain (με) data is then compared against acceptance limits defined in IPC/JEDEC‑9704A or internal OEM specifications (often in the ±500–1000 με range depending on location and risk). Any process that exceeds the allowable strain is adjusted—through fixture redesign, process parameter changes, or board layout modifications—until the strain profile is within safe bounds.
What are the main advantages of using a dedicated PCBA strain measurement solution?
A dedicated PCBA strain measurement solution from a specialized supplier of stress testing instruments offers several advantages: 1) Compliance with industry standards such as IPC/JEDEC‑9704A and specific OEM guidelines (e.g., Intel strain criteria); 2) Proven measurement procedures and reporting formats accepted by major global manufacturers; 3) Optimized hardware and software for multi‑channel strain data acquisition on complex boards; 4) Faster test setup and repeatable results for SMT, DIP, depanelization, and functional test operations; 5) The ability to identify and rank the highest‑risk processes affecting board reliability; and 6) Support for correlation with other reliability testing (thermal cycling, drop, vibration) to build a robust design‑for‑reliability (DfR) and design‑for‑manufacturing (DfM) strategy.
How does PCBA strain measurement reduce manufacturing and lifecycle costs?
PCBA strain measurement follows the well‑known "1‑10‑100" cost rule: a problem identified and fixed in the design phase may cost about 1 unit (e.g., adding test coupons, changing pad layout, or adjusting board thickness). If the same issue is discovered only during manufacturing, the cost can easily increase to 10 units (scrap, rework, fixture redesign). When it is discovered after volume production or in the field, the cost can exceed 100 units due to returns, warranty, brand damage, and corrective actions. By characterizing strain early—on prototypes and pilot runs—manufacturers detect mechanically induced risks before mass production, minimize scrap and rework, and greatly reduce the probability of costly field failures and customer returns.
What standards and industry guidelines does PCBA strain testing typically follow?
Modern PCBA strain testing is primarily based on the IPC/JEDEC‑9704A "Printed Circuit Assembly Strain Gage Test Guideline," originally released in 2005 and revised as Version A in 2012. This standard, actively promoted and used by leading OEMs such as Intel, IBM, HP, and Apple, defines objectives, test setups, strain gauge placement, data acquisition requirements, and interpretation of strain results for solder joint reliability. In addition to IPC/JEDEC‑9704A, many large electronics companies publish their own internal strain acceptance criteria and test methods (often derived from Intel and JEDEC guidelines) that must be met by EMS providers and PCB assemblers. A professional PCBA strain measurement solution is designed to comply with these industry and customer‑specific requirements.
