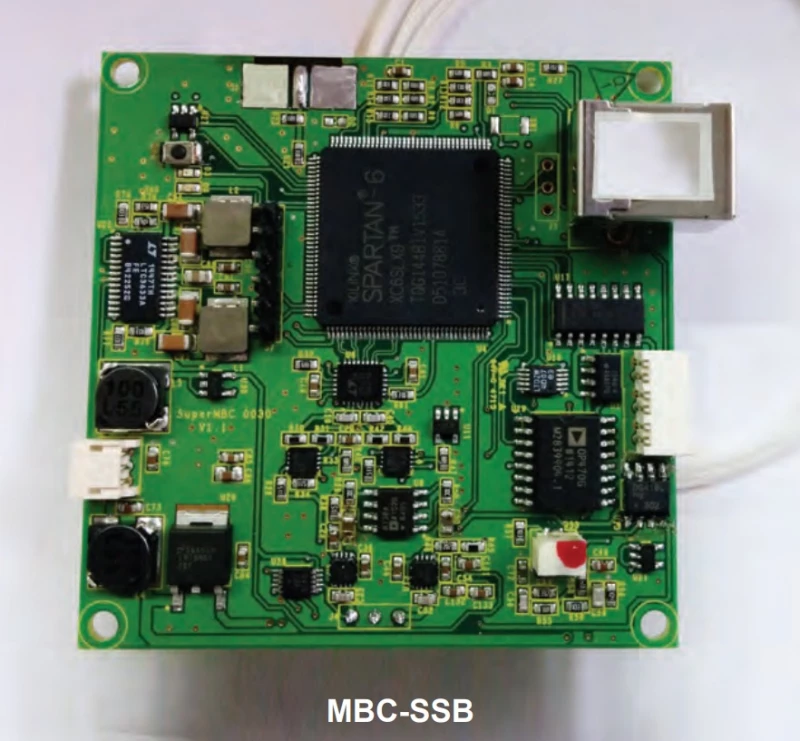

The Modulator Bias Controller – Multi (MBC‑MULTI) is a compact, high‑performance bias control solution engineered specifically for advanced Mach–Zehnder (MZ) modulators, including dual‑parallel MZ (DPMZ) IQ modulators used in single sideband (SSB) and complex modulation formats. In modern coherent and analog optical links, precise and stable biasing of multiple modulators is critical to achieve high extinction ratio, low error vector magnitude, and consistent, drift‑free operation. The MBC‑MULTI addresses these needs by providing intelligent, simultaneous control of up to three modulators from a single compact controller, making it ideal for dense laboratory testbeds, coherent transceiver development, and integrated photonics evaluation setups.

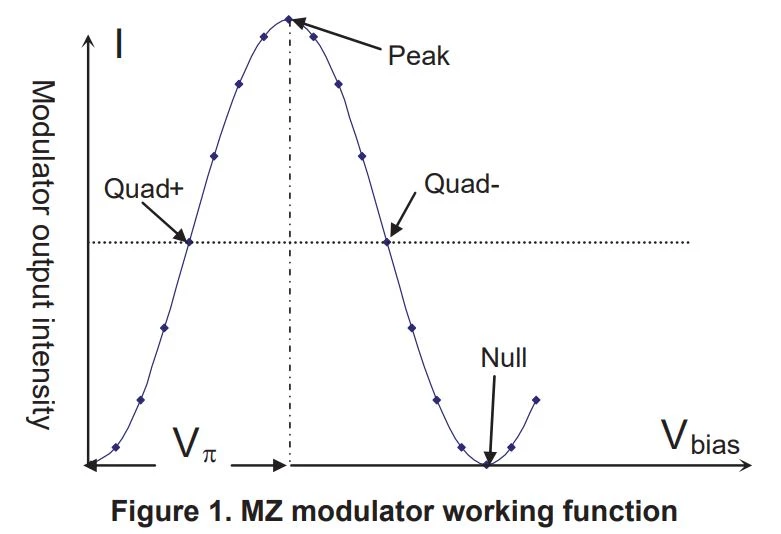

Unlike single‑channel bias controllers that can only track a single operating point, the MBC‑MULTI is purpose‑built for IQ and DPMZ configurations where multiple interferometric paths must be stabilized at different working points such as null, peak, and quadrature (quad). It supports a rich set of locking modes for SSB generation and extended applications, including peak and quad bias control across three independent modulators. This enables fine optimization of phase and amplitude balance in complex modulation schemes, as well as flexible experimentation with new modulation formats. The integrated architecture minimizes system complexity while ensuring that all channels remain synchronized under the same environmental and operational conditions.

At the core of the MBC‑MULTI is an automatic bias locking engine that uses a user‑adjustable pilot tone for robust tracking of the modulator transfer function. By applying a small modulation to the bias and monitoring the detected optical power, the controller continuously compensates for drift due to temperature, aging, or mechanical variations. The pilot tone amplitude can be tuned by the user to balance responsiveness and system transparency, and the available pilot tone frequencies for quadrature operation (typically in the sub‑kilohertz range) are chosen to avoid interference with data signals and typical system noise bands. This approach is aligned with bias control techniques used in leading coherent optical systems and provides the stability required for long‑term measurements and field operation.

Each of the three modulator bias channels in the MBC‑MULTI offers selectable locking slope (positive or negative) and multiple operating points, including peak/null and quad modes. Locking points around null and quadrature can be fine‑tuned, allowing the user to precisely position the operating bias for optimal extinction ratio or linearity, depending on the application. This is particularly beneficial in DPMZ IQ modulators used for SSB or complex QAM formats, where tight quadrature and balance between I and Q arms are essential to minimize carrier leakage and image tones. The controller’s ability to drive bias voltages in the range from approximately −12 V to +12 V covers the requirements of most lithium niobate and similar MZ modulators used in research and industry.

For optical monitoring, the MBC‑MULTI integrates a built‑in photodetector input stage that supports detector input powers typically from about −25 dBm up to −10 dBm over a broad wavelength range spanning 1000 nm to 1650 nm. This allows the controller to be used with a wide variety of continuous‑wave laser sources and modulators operating in the O‑band, C‑band, L‑band, and adjacent windows. A small fraction of the modulated optical signal is tapped via a low‑ratio fiber coupler (for example, 99/1 or 95/5) and directed to the internal or external photodiode. The detected signal is then used by the controller to automatically maintain the chosen bias point, without imposing significant insertion loss on the main transmission path.

The device provides a dedicated access port for an external photodetector, expanding flexibility for different optical layouts or for modulators that do not include an integrated photodiode. This is especially useful in multi‑modulator IQ or dual‑polarization configurations where different stages may need to be monitored individually. With appropriate coupler placement, the MBC‑MULTI can simultaneously stabilize the main intensity modulator, phase modulators, and additional nested modulators in a DPMZ structure, ensuring that the overall transmitter chain operates at its optimum point under varying environmental conditions.

From a system integration perspective, the MBC‑MULTI offers both USB and optional RS‑232 interfaces for control and monitoring, enabling straightforward connection to laboratory PCs, automated test systems, or embedded controllers.
