Modulator Bias Controllers

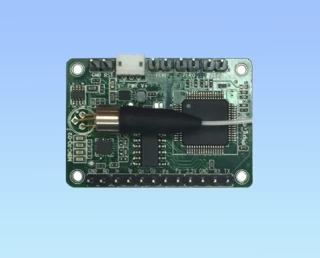

Conquer  modulator bias controller is specially designed for Mach- Zehnder modulators to ensure a stable operation state in various operating environments. Based on its fully digitized signal processing method, the controller can provide ultra stable performance. The controller injects a low frequency, low amplitude dither ...

Specifications

Product Type: Other
Modulation Type: Other
Detector Input Power: -30 dBm
Locking Slope: Unspecified
Locking Mode: Other / Not specified
...
Data Sheet
Conquer modulator bias controller is specially designed for Mach- Zehnder modulators to ensure a stable operation state in various operating environments. Based on its fully digitized signal processing method, the controller can provide ultra stable performance. The controller injects a low frequency, low amplitude dither signal ...

Specifications

Product Type: QPSK-DP/SP
Modulation Type: Other
Detector Input Power: -30 dBm
Locking Slope: Unspecified
Locking Mode: Other / Not specified
...
Data Sheet
Conquer modulator bias controller is specially designed for Mach- Zehnder modulators to ensure a stable operation state in various operating environments. Based on its fully digitized signal processing method, the controller can provide ultra stable performance. The controller injects a low frequency, low amplitude dither signal ...

Specifications

Product Type: Other
Modulation Type: Other
Detector Input Power: -30 dBm
Locking Slope: Unspecified
Locking Mode: Other / Not specified
...
Data Sheet
The Chip size MBC is a single-function chip-size OEM version of the Modulator Bias Controller (MBC) family. It is designed especially for digital system applications. The small size of the board makes it easy to be integrated into the system. Chip size MBC is designed to lock the working point of the modulator at positive slope ...

Specifications

Product Type: MBC
Modulation Type: Other
Detector Input Power: -- dBm
Locking Slope: Positive, Negative
Locking Mode: Quad+, Quad-, Null, Peak Positions
...
Data Sheet

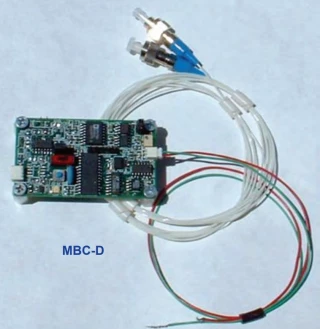

The Ditherless Modulator Bias Controller is a compact OEM device designed for bias control in a feedback loop. It ensures precise locking of the bias to the desired reference point without the need for pilot tones, making it compatible with various analog systems. The controller offers high accuracy, high dynamic range, and fast ...

Specifications

Product Type: MBC
Modulation Type: Other
Detector Input Power: 0 dBm
Locking Slope: Positive, Negative
Locking Mode: Quad+, Quad-, Null, Peak Positions
...
Data Sheet
DP and SP QPSK Modulator Bias Controllers are compact and powerful devices designed to precisely control the bias positions for QPSK modulators used in 100Gbit QPSK or QAM applications. These controllers enable optimal performance and improved optical transmission properties, such as total reach, dispersion tolerance, and spectral ...

Specifications

Product Type: QPSK-DP/SP
Modulation Type: QPSK
Detector Input Power: -10 dBm
Locking Slope: Positive, Negative
Locking Mode: Quad+, Quad-, Null, Peak Positions
...
Data Sheet
The Dual Port Modulator Bias Controller (MBC-DUAL-BIAS-X) is a compact OEM version of the Modulator Bias Controller (MBC) family. Specifically designed for use with MZ modulators featuring dual DC ports, it enables extremely high extinction ratio operation in analog systems and applications.

Specifications

Product Type: MBC
Modulation Type: Other
Detector Input Power: -10 dBm
Locking Slope: Positive, Negative
Locking Mode: Quad+, Quad-, Null, Peak Positions
...
Data Sheet

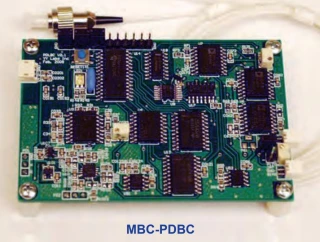

The Precision Ditherless Bias Controller (MBC-PDBC-X) is a compact OEM standalone device designed for bias control in a feedback loop. It features pilot tone mode for precise positioning of the modulator to the Quad position, followed by ditherless mode for maintaining the modulator at that point. The unit can be manually controlled ...

Specifications

Product Type: PDBC
Modulation Type: DQPSK
Detector Input Power: -10 dBm
Locking Slope: Positive, Negative
Locking Mode: Quad+, Quad-, Null, Peak Positions
...
Data Sheet
The MBC-SSB is designed for single sideband applications with DPMZ modulators. It features two operation modes, calibration mode, and locking mode. The controller can control three modulators and has a user-adjustable pilot tone amplitude. The locking points around null and quad can be fine-tuned and calibration off mode is ...

Specifications

Product Type: MBC
Modulation Type: Other
Detector Input Power: -10 dBm
Locking Slope: Positive, Negative
Locking Mode: Quad+
...
Data Sheet
The Modulator Bias Controller is a full-function miniature OEM version of the Modulator Bias Controller (MBC) family. It is designed for use in analog systems and applications. The Modulator Bias Controller enables locking the working point of the modulator at any desired position on the modulator working function. It offers ...

Specifications

Product Type: MBC
Modulation Type: QPSK
Detector Input Power: -10 dBm
Locking Slope: Positive, Negative
Locking Mode: Null, Peak Positions
...
Data Sheet
The Mini Modulator Bias Controller is a compact OEM version of the Modulator Bias Controller (MBC) family. It is designed for general applications with a single modulator. This controller allows for locking the working point of the modulator at the positive slope quadrature (quad+), negative slope quadrature (quad-), null, or peak ...

Specifications

Product Type: MBC-MINI
Modulation Type: Other
Detector Input Power: -10 dBm
Locking Slope: Positive, Negative
Locking Mode: Quad+, Quad-, Null, Peak Positions
...
Data Sheet
The Super Modulator Bias Controller (MBC-SUPER) is a compact and full-function miniature OEM version of the Modulator Bias Controller (MBC) family. It is designed for locking the working point of a modulator at various points on its characteristic curve, including positive slope quadrature (quad+), negative slope quadrature (quad-), ...

Specifications

Product Type: MBC
Modulation Type: QPSK
Detector Input Power: -10 dBm
Locking Slope: Positive, Negative
Locking Mode: Quad+, Quad-, Null, Peak Positions
...
Data Sheet
The QPSK-DP/SP Modulator Bias Controller Box by OZ Optics is a benchtop device designed to control the bias positions for DP/SP QPSK-modulators used in 80Gbit QPSK or QAM applications. It offers improved optical transmission properties such as total reach, dispersion tolerance, and spectral efficiency. The controller box sets the ...

Specifications

Product Type: QPSK-DP/SP
Modulation Type: QPSK, DQPSK
Detector Input Power: -25 dBm
Locking Slope: Positive, Negative
Locking Mode: Quad+, Quad-, Null, Peak Positions
...
Data Sheet

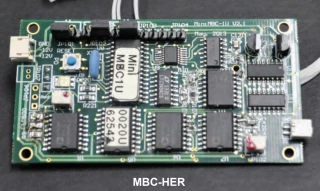

The MBC-HER High Extinction Ratio Mini Modulator Bias Controller is a compact OEM device designed for high extinction ratio applications. It allows precise control of the working point of a single MZ modulator, enabling selection of the positive slope quadrature (Quad+), negative slope quadrature (Quad-), null, or peak points of its ...

Specifications

Product Type: MBC-MINI
Modulation Type: Other
Detector Input Power: -20 dBm
Locking Slope: Unspecified
Locking Mode: Quad+, Quad-, Null, Peak Positions
...
Data Sheet

Frequently Asked Questions

A modulator bias controller is a device used to control the bias voltage of a modulator, which is an optical device used to modulate the amplitude, phase, or polarization of light.

Modulator bias controllers provide stable and accurate control of the modulator bias voltage, which is essential for achieving high-quality optical modulation. They can also help simplify the process of modulator bias control by automating the locking process.

Modulator bias controllers typically use a feedback loop to adjust the modulator bias voltage until it reaches the desired operating point. Some controllers use a pilot tone to improve accuracy and reduce noise.

Modulator bias controllers can be used with various types of modulators, including Mach-Zehnder modulators, phase modulators, and electro-optic modulators.

The right modulator bias controller will depend on various factors, including the type of modulator, the required operating voltage range, and the desired locking mode. Be sure to carefully review the product specifications and consult with a vendor if you have any questions.

Yes, some modulator bias controllers are designed to control multiple modulators simultaneously. Be sure to check the product specifications to see how many modulators a controller can support.

Some modulator bias controllers may require special software to interface with a computer or to adjust certain settings. Be sure to check the product specifications and user manual for more information.

The operating temperature range for a modulator bias controller can vary depending on the product, but it is typically between 0°C and 70°C. Be sure to check the product specifications for the specific temperature range.

Yes, some modulator bias controllers may have a port for an external photodiode, which can help improve accuracy and stability.

You can find 14 different Modulator Bias Controllers listed in this category. In just a few clicks you can compare different Modulator Bias Controllers with each other and get an accurate quote based on your needs and specifications.

The following introduction to Modulator Bias Controllers is designed to help you gain valuable insights and deepen your understanding of their crucial role in optimizing the performance of optical communication systems.

Introduction: In the rapidly evolving field of telecommunications and optics, Modulator Bias Controllers (MBCs) are emerging as an essential component to ensure peak performance of optical communication systems. Leveraging the latest technologies, MBCs play a pivotal role in maintaining the integrity of optical signals and optimizing the operation of electro-optic modulators.

What is an electro-optic modulator? At its core, an electro-optic modulator is a device that is used to control light signal in an optical fiber. It uses an electrical signal to modulate a light source, thus enabling the transmission of data over optical fibers. The performance of these modulators is critical in ensuring the efficient and reliable transmission of data. However, they need to be precisely controlled and their operating point stabilized to prevent any degradation in signal quality. This is where Modulator Bias Controllers come into play.

What is a Modulator Bias Controller? Bias Modulator Bias Controllers are designed to provide precise control over the operating point of optical modulators. They monitor the modulator's output and adjust the bias voltage to keep the modulator operating at its optimal point. This helps to reduce signal distortion, improve system stability, and enhance overall communication efficiency. In other words, MBCs are the unsung heroes that ensure the smooth operation of high-speed optical communication systems.

Applications of Modulator Bias Controller: The application of Modulator Bias Controllers isn't limited to telecommunications alone. They are equally crucial in other fields such as digital communication systems, quantum optics, and lidar systems. In digital communication systems, MBCs ensure the reliable transmission of digital signals over optical fibers, enhancing data transfer speeds and reducing errors. In quantum optics, they enable precise control over light particles, facilitating cutting-edge research and experiments. In lidar systems, MBCs contribute to improving the accuracy and reliability of distance measurements and object detection.

Features: MBCs are designed with an intuitive interface for easy implementation. They can be easily integrated into various systems and require minimal maintenance, making them a cost-effective solution for managing complex optical signals. The robust design of MBCs ensures their durability, even in the most demanding environments.

What to look for: Despite their advanced capabilities, Modulator Bias Controllers are not a one-size-fits-all solution. They must be chosen and configured based on the specific requirements of each system. Factors such as the type of modulator, the signal frequency, and the environmental conditions must be taken into account when selecting and setting up an MBC.

Future Applications: As we move towards an era of unprecedented data usage and demand for high-speed communication, the importance of efficient optical communication systems cannot be overstated. And at the heart of these systems are Modulator Bias Controllers, working silently but efficiently to ensure the smooth and reliable transmission of data. By harnessing the power of MBCs, we can effectively manage complex optical signals and stay ahead of the curve in this rapidly evolving landscape.

In conclusion, Modulator Bias Controllers are a crucial component in optimizing the performance of electro-optic modulators. They represent a powerful tool for improving signal integrity, system stability, and overall communication efficiency in various applications. As the telecommunications landscape continues to evolve, the role of MBCs in managing and controlling optical signals will undoubtedly become increasingly important.

Keywords: Modulator Bias Controllers, Electro-optic Modulators, Optical Communication Systems, Digital Communication Systems, Quantum Optics, Lidar Systems, Signal Integrity, System Stability, Communication Efficiency.

Did You know?

Did you know that modulator bias controllers are essential components in fiber optic communication systems? They are used to stabilize the bias point of optical modulators, which play a crucial role in transmitting and receiving data over fiber optic cables. Modulator bias controllers ensure that the modulator's output is stable and within a specific range, which helps to minimize errors and improve signal quality. They use feedback loops to adjust the bias voltage of the modulator in real-time, ensuring that it stays within the specified range. Modulator bias controllers are available in various form factors, including benchtop and OEM versions, and can be used with different types of modulators such as Mach-Zehnder (MZ) and quadrature phase-shift keying (QPSK) modulators. They offer a range of features such as user-selectable locking modes, locking slopes, and modulation depths, as well as computer interfaces for remote control and monitoring.
