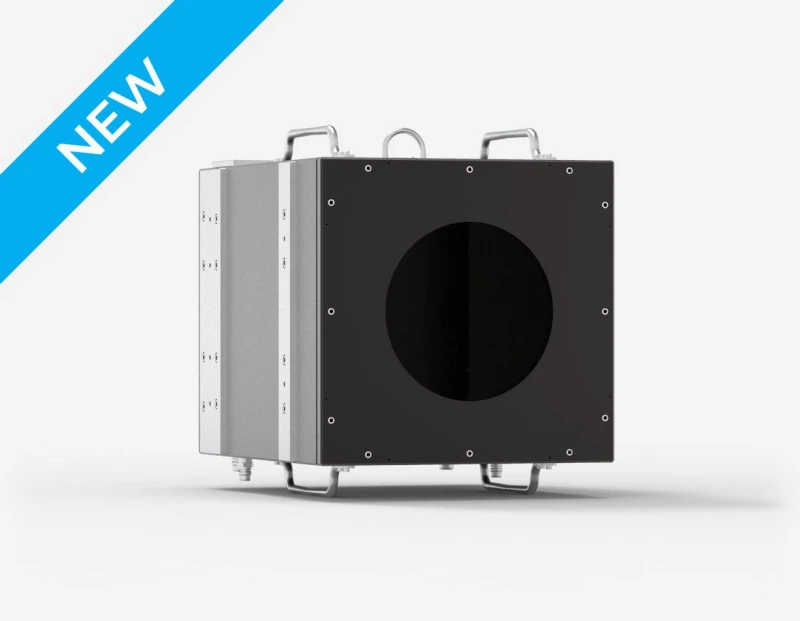

Thumbnail of HP400A-100KW-HD-TUBE-D0 High Power Detector photo 1

Description

The HP400A-100KW-HD-TUBE-D0 is a robust high-power detector designed for precise laser power measurement, capable of handling power levels up to 100,000 W. With its impressive measurement capabilities and reliability, it is an essential tool for high-power laser applications.

HP400A-100KW-HD-TUBE-D0 High Power Detector

Visit the Gentec-EO Store

Specifications

Max Average Power: 100000 W
Effective Aperture: 400 mm
Spectral Range: 0.19 – 20 um
Cooling Method: Water
Minimum Average Power: 4000 W
Noise Equivalent Power: 200 W
Typical Rise Time: 45 s
Power Calibration Uncertainty: ±5 %
Ack Reflections: < 4 %
Required Cooling Flow: (30 - 40) LPM < ±1 LPM/min
Temperature Range: +15 to +25 °C
Rate Of Temperature Change: < ±1 °C/min
Maximum Water Pressure: 621 kPa (90 psi)
Maximum Average Power Density: 3.5 kW/cm²
Data Display: Real time, scope, needle, averaging, histogram and statistics
Analog Output: 0-2 Volts
Serial Commands Via: USB
Display Type: None
Aperture Diameter: 250 mm
Absorber: HD
Dimensions: 451H x 464W x 557D mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Maximum Average Power (Continuous): 100,000 W
  • Minimum Average Power (Continuous): 4,000 W
  • Noise Equivalent Power: 200 W
  • Spectral Range: 0.193 - 20 μm
  • Typical Rise Time: 45 s
  • Power Calibration Uncertainty: ±5%
  • Back Reflections: < 4%

Applications

  • High-power laser systems
  • Laser welding and cutting
  • Material processing
  • Industrial laser applications
  • Research and development in high-power lasers

Frequently Asked Questions

What is the maximum power handling of the Gentec-EO SUPER HP High Power Solutions?
Custom models can handle up to 100,000 W of continuous power.
How stable is the reading of the Gentec-EO SUPER HP High Power Solutions?
It is less sensitive to variations in water cooling temperature than any other high power water-cooled meter on the market.
Can the Gentec-EO SUPER HP High Power Solutions be customized?
Yes, it has infinite customization capabilities. Customers can choose their size and maximum power, and Gentec-EO will customize it for them.
What is the calibration uncertainty of the Gentec-EO SUPER HP High Power Solutions?
All HP Models can be calibrated at YAG and CO2 wavelengths with a calibration uncertainty of ±5%.
What accessories are included with the Gentec-EO SUPER HP High Power Solutions?
The product comes with a 5 m USB cable, a Pelican carrying case, extension cables (4, 15, 20 or 25 m), and a stand with a steel post for the 25 kW model.

Got more questions? Use the inquiry form to ask the supplier directly.
