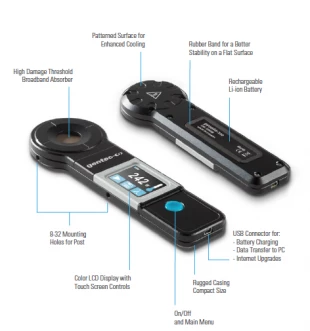

Power Detector PRONTO 250

Specifications

Max Average Power: 250 W
Effective Aperture: 19 mm
Spectral Range: 0.248 – 2.5 um
Cooling Method: Convection, Thermoelectric, Heatsink, Fan-cooled
Single Shot Power (SSP): Up to 250 W
Continuous Power (CWP): Up to 8 W
Single Shot Energy (SSE): Up to 25 J
Power Range: 0.5 W - 250 W
Effective Aperture: 19 mm Ø
Spectral Range: 0.19 - 20 μm
Calibrated Spectral Range: 0.248 – 2.5 μm and 10.6 μm
Noise Equivalent Power/Energy: 10 mW
Minimum Measurable Power: 0.5 W
Response Time: 5 sec
Measurement Accuracy: ± 3 %
Display Resolution: 1 mW
Maximum Average Power Density: 45 kW/cm² (at 1064 nm, 10 W, CW) / 14 kW/cm² (at 10.6 μm, 10 W, CW)
Maximum Exposure Time: 6 sec
Maximum Device Temperature: 65°C
Document icon Download Data Sheet Download icon

Features


  • POCKET-SIZE

  • EASY-TO-USE

  • USER SETABLE

  • DATA LOGGING

  • FROM LOW TO HIGH POWERS

  • YAG AND CO2 CALIBRATIONS

  • HANDS-FREE OPERATION

Applications


  • Laser beam diagnostics

  • Spectroscopy

  • Metrology
