Description

The Gentec-EO UP series of laser power detectors include seven families (XLP12, UP12, UP10, UP17, UP19, UP25, UP55) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification.

The high power surface absorber sensors are designed for use at high average power densities.The Gentec-EO UP series of laser power detectors include seven families (XLP12, UP12, UP10, UP17, UP19, UP25, UP55) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification. The high power surface absorber sensors are designed for use at high average power densities.

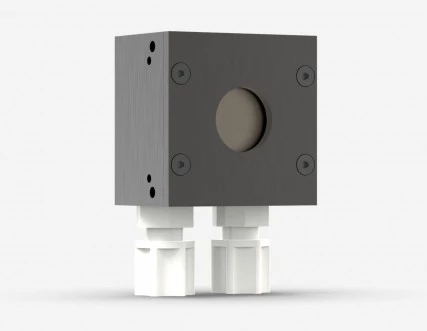

Gentec-EO Thermopile Laser Power Detector UP19K-150W-H5-D0

Specifications

Max Average Power: 150 W
Effective Aperture: 19 mm
Spectral Range: 0.19 – 20 um
Cooling Method: Water, Heatsink, Fan-cooled

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

The UP detectors are supplied with an 1.8 m (6 ft) length flexible cable with output connection options:

DB- 5 \"intelligent\" male connector for use with a Gentec-EO display or PC interface
INTEGRA USB connector
INTEGRA RS-232 connector
BLU wireless option (no cable)
BNC connector
Molex connector
BNC/Molex connector.
NOTE: To eliminate possible damage, do not carry the detector using the connector cable.

The UP sensors may also be supplied with a stand. Be aware that when using a detector with a heatsink, the fins should always be placed vertically. For cases where Gentec-EO’s displays & PC interfaces don’t automatically read the wavelength correction factor, you can use your detector’s “Personal wavelength correction TM Certificate” to adjust the power you read to a power corrected for a particular wavelength

Applications

Laser power measurements
Laser optics
Spectroscopy
Metrology

Frequently Asked Questions

What are the applications of the UP detectors?
The UP detectors can be used for laser power measurements, laser optics, spectroscopy, and metrology.
What are the features of the UP detectors?
The UP detectors are supplied with a flexible cable with output connection options, and may also be supplied with a stand. When using a detector with a heatsink, the fins should always be placed vertically.
What are the measurement capabilities of the UP19K-150W-H5-D0 detector?
The UP19K-150W-H5-D0 detector has a maximum average power of 1150 W (continuous) and 2190 W (1 minute), a noise equivalent power of 1 mW, and a spectral range of 0.19 - 20 μm. It also has a fast rise time of 0.6 sec and a high damage threshold of 36 kW/cm2.
What is the Gentec-EO UP series of laser power detectors?
The Gentec-EO UP series of laser power detectors include seven families of opto-thermal sensors with different cooling options, with or without amplification.
What is the UP19K-150W-H5-D0 detector?
The UP19K-150W-H5-D0 is a thermal detector for laser power measurement up to 150 W.

Got more questions? Use the inquiry form to ask the supplier directly.
