Description
The UP10P-2S-H5-L-D0 is a thermal detector designed for accurate laser power measurement up to 2 W. This power sensor features a convection cooling system and an aperture diameter of 10 mm.
With its high sensitivity and low noise, this laser power detector provides reliable power measurements in a compact form factor. It is an ideal solution for various laser applications that require precise power monitoring.

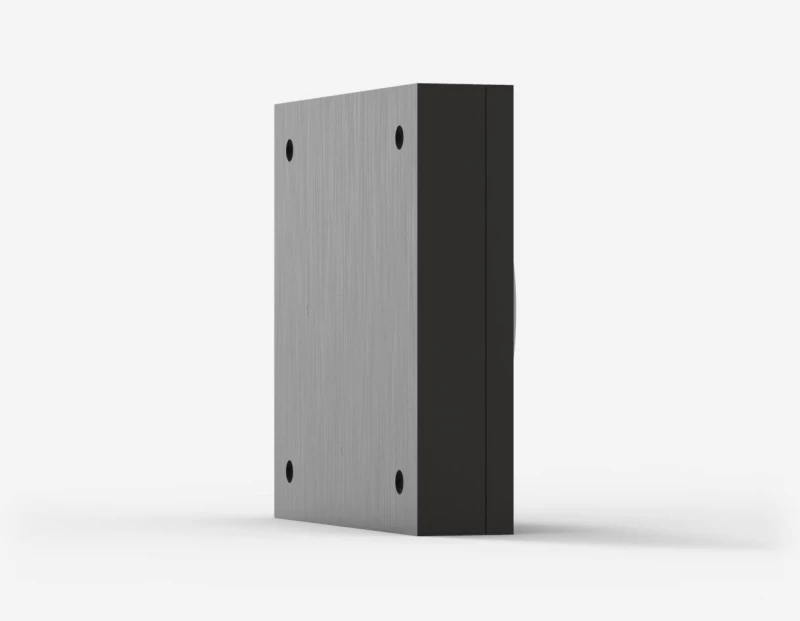

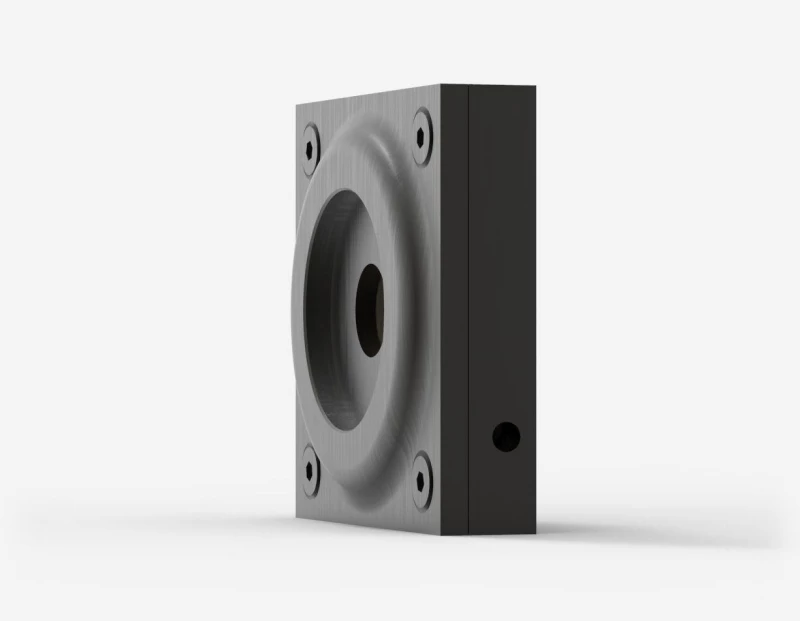

UP10P-2S-H5-L-D0 Thermal Detector for Laser Power Measurement
Specifications
Max Average Power: | 2 W |
---|---|
Effective Aperture: | 10 mm |
Spectral Range: | 0.19 – 20 um |
Cooling Method: | Convection |
Noise Equivalent Power: | 30 μW |
Typical Rise Time: | 14 s |
Typical Power Sensitivity: | 2 mV/W |
Power Calibration Uncertainty: | ±2.5 % |
Repeatability: | ±0.5 % |
Typical Energy Sensitivity: | 2.4 mV/J |
Maximum Measurable Energy: | 3 J |
Minimum Repetition Period: | 2 s |
Maximum Pulse Width: | 63 ms |
Maximum Average Power Density: | 36 kW/cm² |
Maximum Energy Density: | 1 J/cm² |
Absorber: | H5 |
Weight: | 0.13 kg |
Dimensions: | 46H x 46W x 13D mm |
Features
- Maximum average power (continuous): 2 W
- Noise equivalent power: 30 μW
- Spectral range: 0.193 - 20 μm
- Typical rise time: 1.4 s
- Typical power sensitivity: 2 mV/W
- Power calibration uncertainty: ±2.5%
- Repeatability: ±0.5%
Applications
- Laser power measurement up to 2 W
- Laser system characterization
- Laser research and development
- Laser manufacturing and production
Frequently Asked Questions
What are the applications of the Gentec-EO UP series of laser power detectors?
The applications of the Gentec-EO UP series of laser power detectors include laser power measurements, laser optics, spectroscopy, and metrology.
What are the features of the UP detectors?
The UP detectors are supplied with an 1.8 m (6 ft) length flexible cable with output connection options, and may also be supplied with a stand. They also have a personal wavelength correction TM certificate to adjust the power you read to a power corrected for a particular wavelength.
What is the energy calibration uncertainty of the UP10P-2S-H5-L-D0 alser power meter?
The energy calibration uncertainty of the UP10P-2S-H5-L-D0 is ±5%.
What is the Gentec-EO UP series of laser power detectors?
The Gentec-EO UP series of laser power detectors include seven families (XLP12, UP12, UP10, UP17, UP19, UP25, UP55) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification.
What is the maximum average power that the UP10P-2S-H5-L-D0 can measure?
The UP10P-2S-H5-L-D0 can measure a maximum average power of 2 W.
