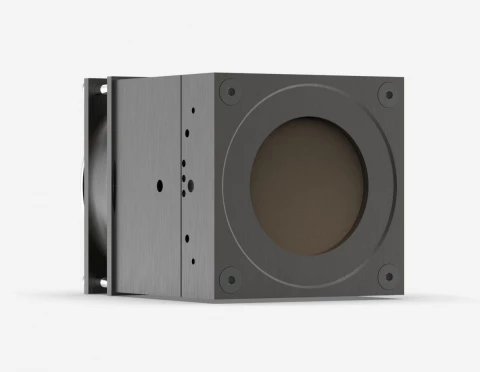

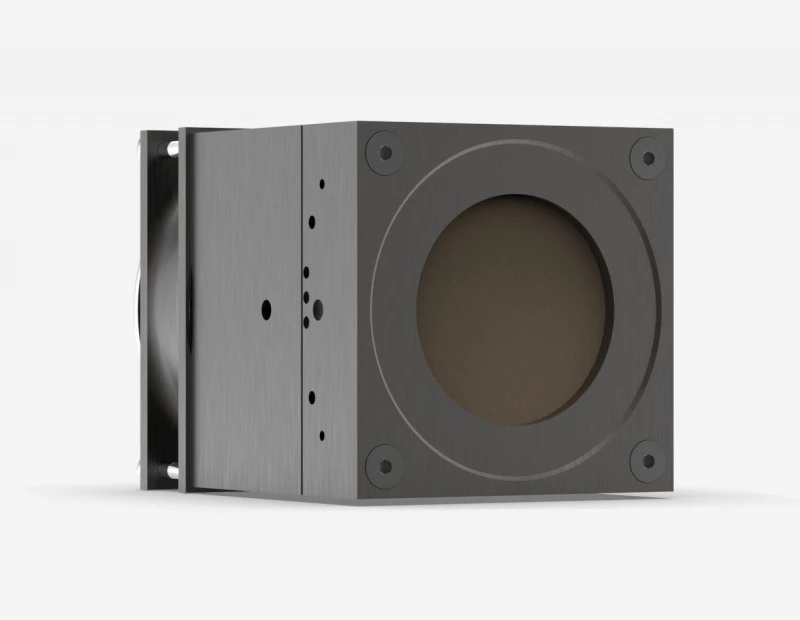

Thumbnail of UP55N-300F-H12-D0 Thermal Detector for Laser Power Measurement photo 1
Thumbnail of UP55N-300F-H12-D0 Thermal Detector for Laser Power Measurement photo 2
Thumbnail of UP55N-300F-H12-D0 Thermal Detector for Laser Power Measurement photo 3

Description

Gentec-EO offers UP55 series high power detectors for industrial and laboratory applications.

UP55N-300F-H12-D0 Thermal Detector for Laser Power Measurement

Visit the Gentec-EO Store

Specifications

Max Average Power: 300 W

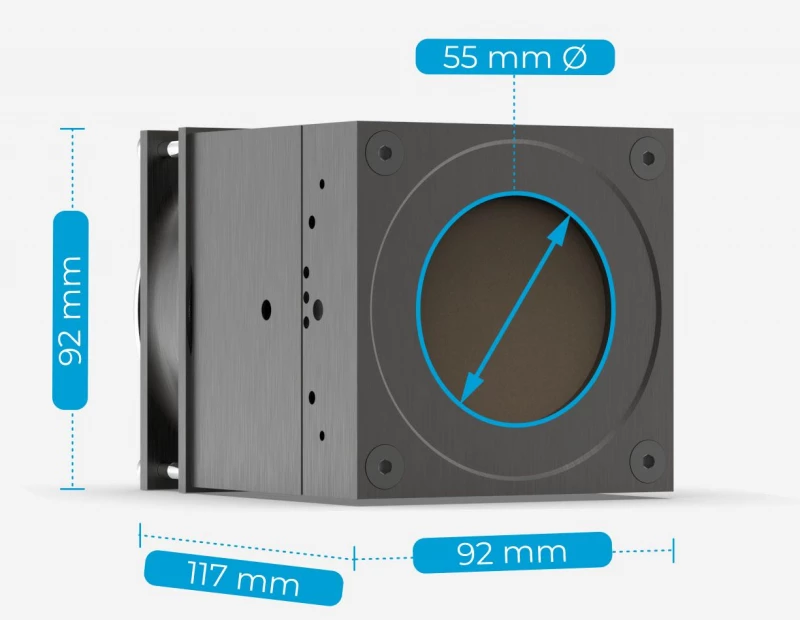

Effective Aperture: 55 mm
Spectral Range: 0.19 – 20 um

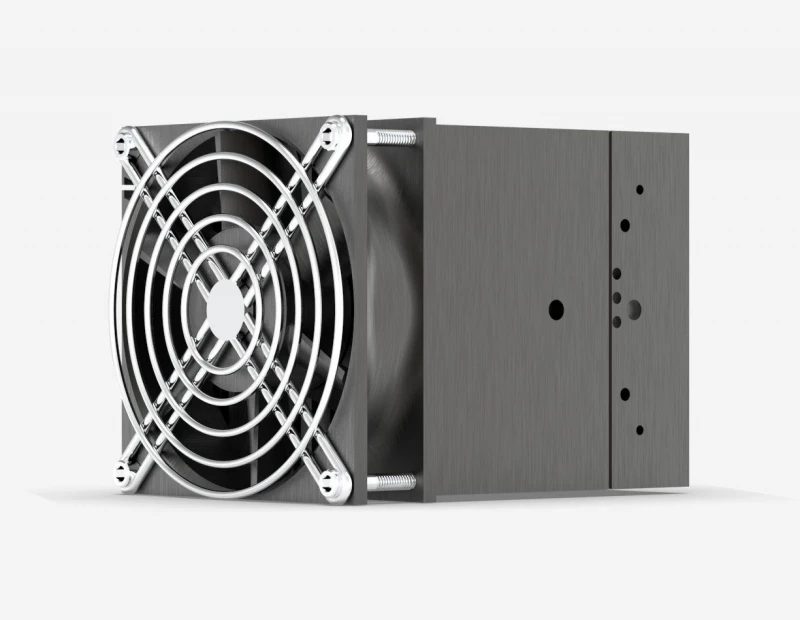

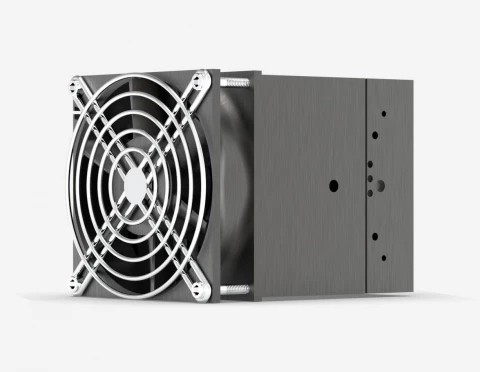

Cooling Method: Fan-cooled
Noise Equivalent Power: 15 mW
Typical Energy Sensitivity: 0.015 mV/J
Maximum Measurable Energy: 200 J
Noise Equivalent Energy: 0.25 J
Minimum Repetition Period: 12 s
Maximum Pulse Width: 430 ms
Maximum Average Power Density: 45 kW/cm²
Maximum Energy Density: 1 J/cm²

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • MODULAR CONCEPT:Increase the power capability of your detector: 4 different cooling modules
  • HIGH PERFORMANCE: Fast Rise Time (2 sec). High Damage Threshold (45 kW/cm2)
  • COMPACT DESIGN: Only 32 mm thick (40S model)
  • ENERGY MODE: Measure single shot energy up to 200 J
  • SMART INTERFACE: Containing all the calibration data

Applications

  • Power output measurements of high-power lasers in a wide spectral range
  • Metrology

Frequently Asked Questions

What is the UP55N-300F-H12-D0 Thermal Detector used for?
The UP55N-300F-H12-D0 Thermal Detector is used for laser power measurement up to 300 W.
What is the rise time of the UP55N-300F-H12-D0 laser power meter?
The rise time of this laser power meter is 2 seconds.
What is the maximum measurable energy of the UP55N-300F-H12-D0 laser power detector?
The maximum measurable energy of the UP55N-300F-H12-D0 laser power detector is 200 J.
What is the damage threshold of the UP55N-300F-H12-D0 laser power meter?
The damage threshold of this laser power meter is 45 kW/cm2.
What is the weight of the UP55N-300F-H12-D0 Thermal Detector?
The weight of the UP55N-300F-H12-D0 Thermal Detector is 1.41 kg.

Got more questions? Use the inquiry form to ask the supplier directly.
