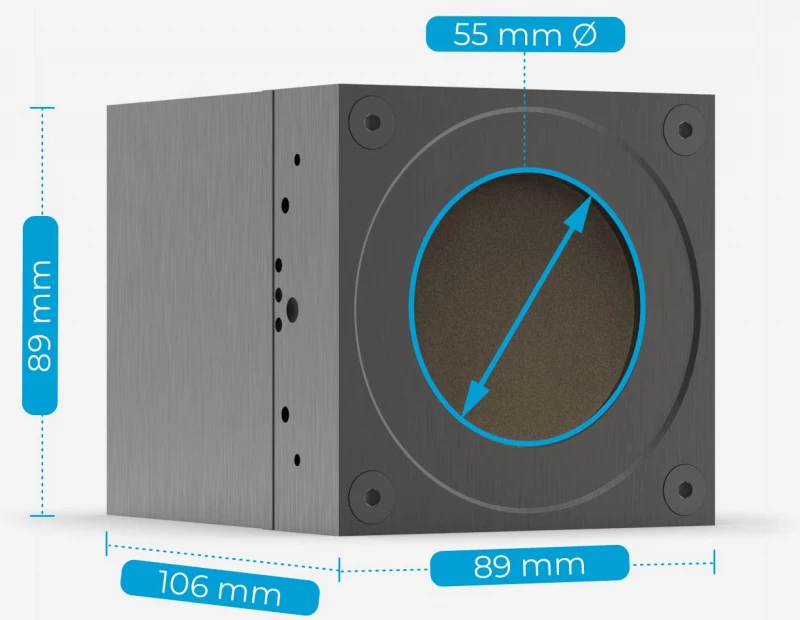

Thumbnail of UP55N-100H-H9-D0 Thermal Detector for Laser Power Measurement photo 1

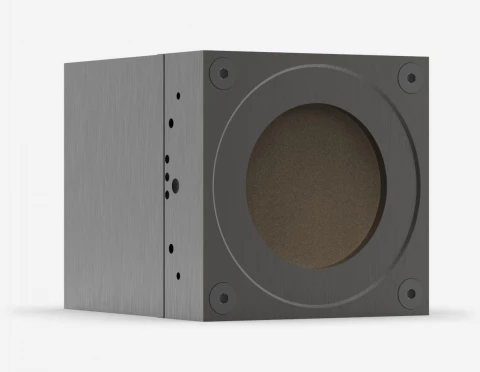

Thumbnail of UP55N-100H-H9-D0 Thermal Detector for Laser Power Measurement photo 2

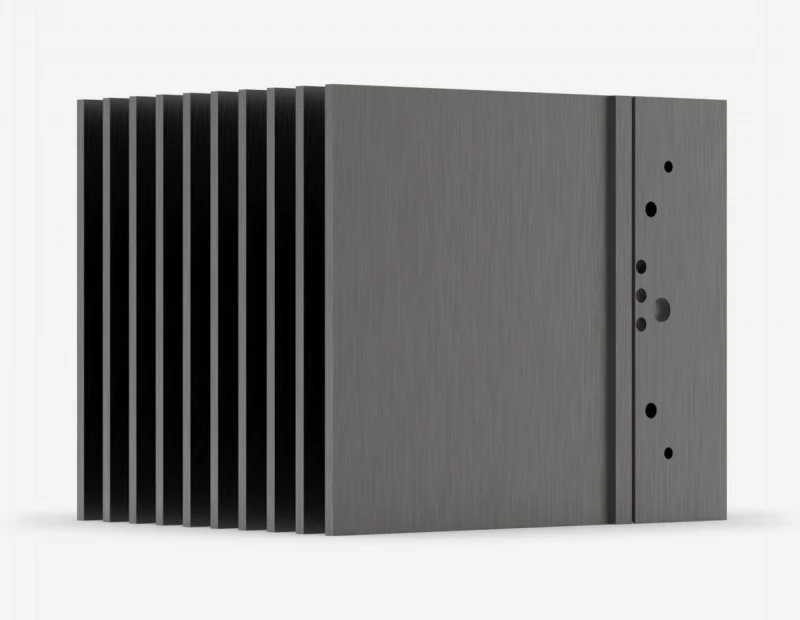

Thumbnail of UP55N-100H-H9-D0 Thermal Detector for Laser Power Measurement photo 3

Description

UP55N-100H-H9-D0 is a Thermal Detector for Laser Power Measurement

UP55N-100H-H9-D0 Thermal Detector for Laser Power Measurement

Visit the Gentec-EO Store

Specifications

Max Average Power: 100 W
Effective Aperture: 55 mm
Spectral Range: 0.19 – 20 um
Cooling Method: Heatsink
Max Average Power (1 Minute): 200 W
Typical Rise Time: 2 s
Typical Power Sensitivity: 0.12 mV/W
Typical Energy Sensitivity: 0.028 mV/J
Maximum Measured Energy: 200 J
Equivalent Noise Energy: 0.25 J
Minimum Recurrence Period: 11.1 s
Maximum Average Power Density: 45 kW/cm²
Maximum Energy Density: 1 J/cm²

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • MODULAR CONCEPT: Increase the power capability of your detector with 4 different cooling modules
  • HIGH PERFORMANCE: Fast Rise Time (2 sec) and High Damage Threshold (45 kW/cm2)
  • COMPACT DESIGN: Only 32 mm thick (40S model)
  • ENERGY MODE: Measure single shot energy up to 200 J
  • SMART INTERFACE: Containing all the calibration data

Applications

  • Power output measurements of high-power lasers in a wide spectral range
  • Metrology
  • Spectroscopy

Frequently Asked Questions

What is the UP55N-100H-H9-D0 Thermal Detector for Laser Power Measurement?
The UP55N-100H-H9-D0 is a thermal detector designed for measuring laser power.
What are the key features of the UP55N-100H-H9-D0 laser power meter?
The key features of the UP55N-100H-H9-D0 laser power meter include a modular concept, high performance, compact design, energy mode, and smart interface.
What is the maximum average power that the UP55N-100H-H9-D0 laser power detector can measure?
The UP55N-100H-H9-D0 can measure a maximum average power of 100 W continuously and 200 W for 1 minute.
What is the energy mode of the UP55N-100H-H9-D0 power meter?
The energy mode of the UP55N-100H-H9-D0 allows for measuring single shot energy up to 200 J.
What is the damage threshold of the UP55N-100H-H9-D0 laser power meter?
The UP55N-100H-H9-D0 has a high damage threshold of 45 kW/cm2.

Got more questions? Use the inquiry form to ask the supplier directly.
