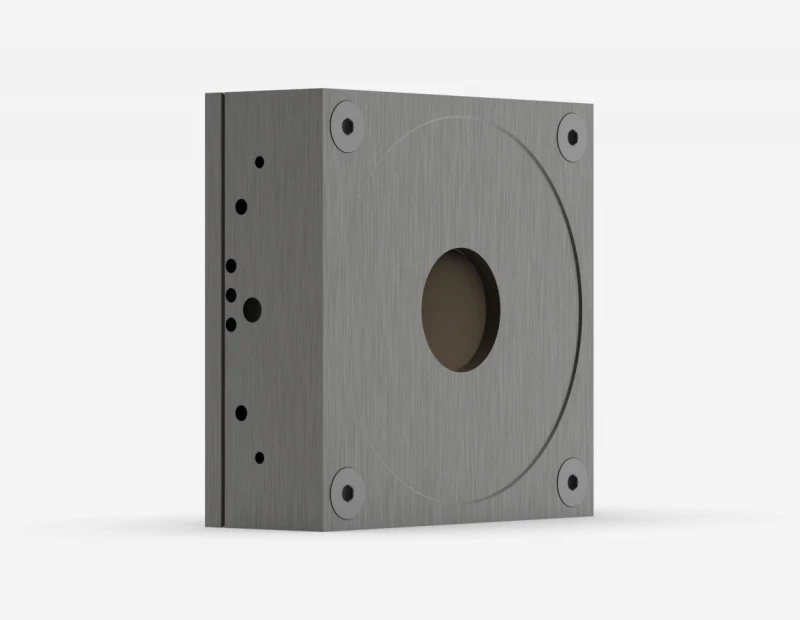

Thumbnail of UP25N-40S-H9-D0 Thermal Detector for Laser Power Measurement photo 1

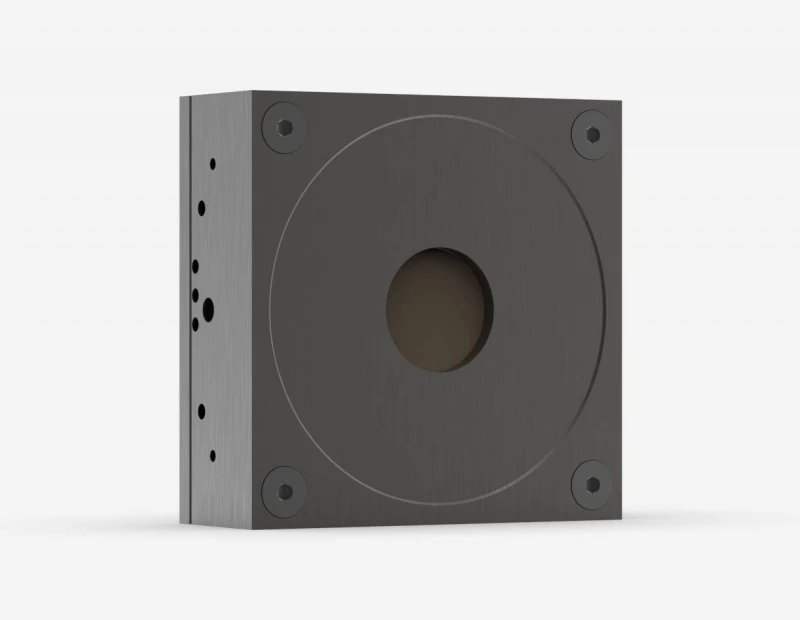

Thumbnail of UP25N-40S-H9-D0 Thermal Detector for Laser Power Measurement photo 2

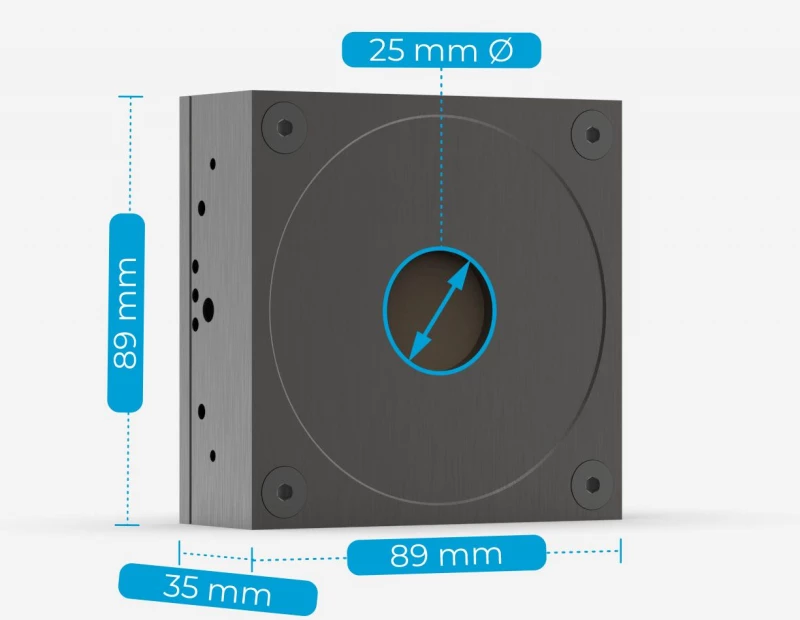

Thumbnail of UP25N-40S-H9-D0 Thermal Detector for Laser Power Measurement photo 3

Description

Gentec-EO offers UP25 series high power detectors for laboratory and industrial applications.

UP25N-40S-H9-D0 Thermal Detector for Laser Power Measurement

Visit the Gentec-EO Store

Specifications

Max Average Power: 40 W
Effective Aperture: 25 mm
Spectral Range: 0.19 – 20 um
Cooling Method: Convection
Max Average Power (1 Minute): 80 W
Noise Equivalent Power: 3 mW
Typical Energy Sensitivity: 0.14 mV/J
Maximum Measurable Energy: 40 J
Noise Equivalent Energy: 0.2 J
Minimum Repetition Period: 4.6 s
Maximum Pulse Width: 123 ms
Maximum Average Power Density: 45 kW/cm²
Maximum Energy Density: 1 J/cm²

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Modular Concept: Increase the power capability of your detector: 4 different cooling modules
  • High Performance: Fast rise time (1.3 sec) | High damage threshold (45 kW/cm2)
  • Energy Mode: Measure single shot energy up to 40 J
  • Smart Interface: Containing all the calibration data

Applications

  • Power output measurements of high-power lasers in a wide spectral range from deep ultraviolet to mid-infrared.
  • Spectroscopy
  • Field service
  • Laboratory and industrial applications

Frequently Asked Questions

What is the UP25N-40S-H9-D0 Thermal Detector used for?
The UP25N-40S-H9-D0 Thermal Detector is used for laser power measurement up to 40 W.
What is the rise time of the UP25N-40S-H9-D0 Thermal Detector?
The rise time of the UP25N-40S-H9-D0 Thermal Detector is 1.3 seconds.
What is the maximum average power that the UP25N-40S-H9-D0 Thermal Detector can measure?
The UP25N-40S-H9-D0 Thermal Detector can measure a maximum average power of 40 W continuously and 80 W for 1 minute.
What is the maximum measurable energy of the UP25N-40S-H9-D0 Thermal Detector?
The maximum measurable energy of the UP25N-40S-H9-D0 Thermal Detector is 40 J.
What is the weight of the UP25N-40S-H9-D0 Thermal Detector?
The weight of the UP25N-40S-H9-D0 Thermal Detector is 0.68 kg.
