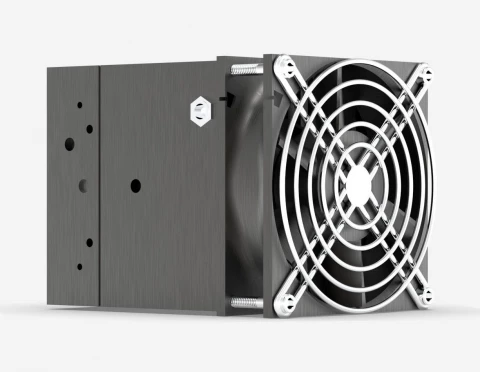

Thumbnail of UP25N-250F-H12-D0 Thermal Detector for Laser Power Measurement photo 1
Thumbnail of UP25N-250F-H12-D0 Thermal Detector for Laser Power Measurement photo 2

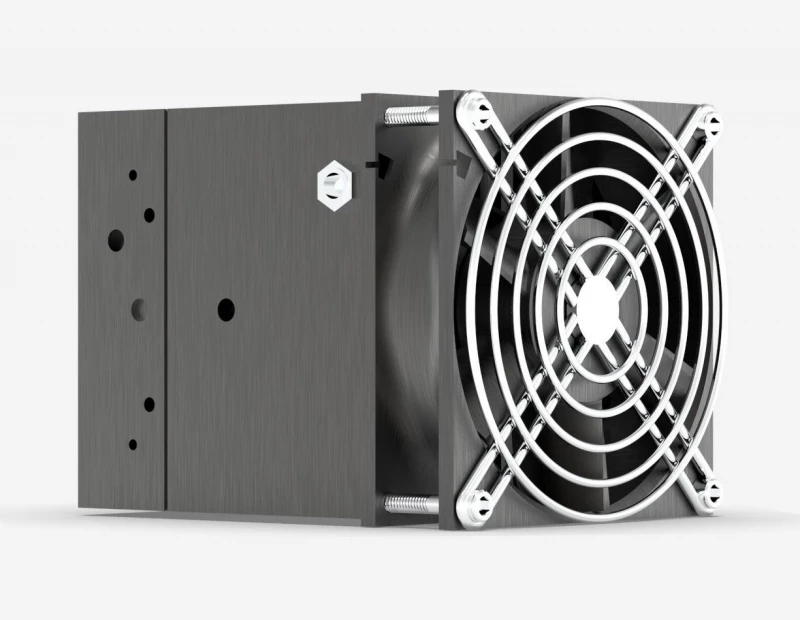

Thumbnail of UP25N-250F-H12-D0 Thermal Detector for Laser Power Measurement photo 3

Description

Gentec-EO offers UP25H series high power detectors for laboratory and industrial applications.

UP25N-250F-H12-D0 Thermal Detector for Laser Power Measurement

Visit the Gentec-EO Store

Specifications

Max Average Power: 250 W
Effective Aperture: 25 mm
Spectral Range: 0.19 – 20 um
Cooling Method: Fan-cooled
Weight: 1.44 kg

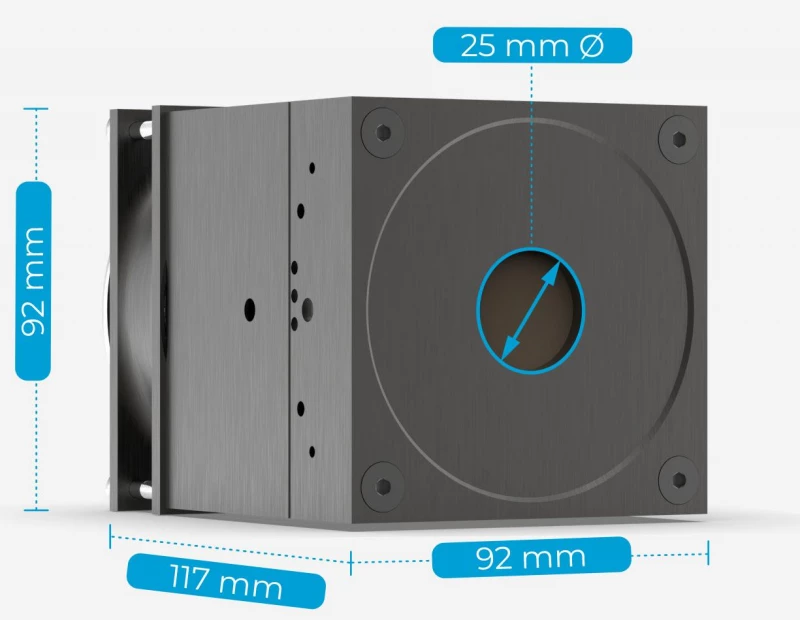

Dimensions: 92H x 92W x 117D mm
Absorber: H12
Power Calibration Uncertainty: ±2.5 %
Maximum Energy Density: 1 J/cm²
Minimum Repetition Period: 11.5 s
Noise Equivalent Energy: 0.2 J
Noise Equivalent Power: 10 mW
Maximum Energy Density: 1 J/cm²
Maximum Average Power Density: 45 kW/cm²
Maximum Pulse Width: 390 ms
Maximum Measurable Energy: 40 J
Typical Energy Sensitivity: 0.05 mV/J
Noise Equivalent Power: 10 mW

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Modular Concept: Increase the power capability of your detector: 4 different cooling modules
  • High Performance: Fast rise time (1.3 sec); High damage threshold (45 kW/cm2)
  • Energy Mode: Measure single shot energy up to 40 J
  • Smart Interface: Containing all the calibration data

Applications

  • Power output measurements of high-power lasers in a wide spectral range from deep ultraviolet to mid-infrared.
  • Spectroscopy
  • Field service
  • Laboratory and industrial applications

Frequently Asked Questions

What is the UP25N-250F-H12-D0 Thermal Detector used for?
The UP25N-250F-H12-D0 Thermal Detector is used for laser power measurement of high-power lasers in a wide spectral range from deep ultraviolet to mid-infrared.
What are the key features of the UP25N-250F-H12-D0 Thermal Detector?
The key features of the UP25N-250F-H12-D0 Thermal Detector are its modular concept, high performance, energy mode, and smart interface.
What is the maximum average power that the UP25N-250F-H12-D0 laser power meter can measure?
The maximum average power that the UP25N-250F-H12-D0 laser power meter can measure continuously is 250 W, and for 1 minute it is 300 W.
What is the typical rise time of the UP25N-250F-H12-D0 laser power meter?
The typical rise time of the UP25N-250F-H12-D0 laser power meter is 1.3 seconds.
What is the energy calibration uncertainty of the UP25N-250F-H12-D0 power meter?
The energy calibration uncertainty of the UP25N-250F-H12-D0 power meter is ±5%.

Got more questions? Use the inquiry form to ask the supplier directly.
