Description
The Gentec-EO Ultra Series UP power detector family includes thirteen series (XLP12, UP12E, UP10K(P), UP17P, UP19K, UP25N(M), UP25T, UP50N(M), UP55N(M), UP55C, UP60N(M), UP55G, and UP60G) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification. The high-power surface absorber sensors are designed for use at high average power densities.

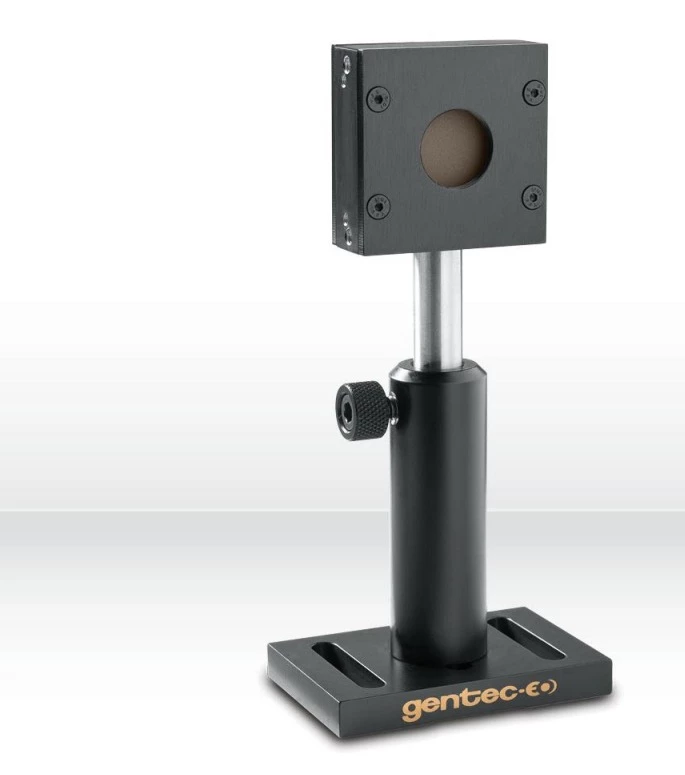

Gentec-EO - High Power Detectors - UP25M-350W-H12
Specifications
Max Average Power: | 350 W |
---|---|
Effective Aperture: | 25 mm |
Spectral Range: | 0.19 – 20 um |
Cooling Method: | Water |
Linearity Vs Beam Dimension: | ± 0.7 % |
Output Impedance: | N. A. |
Recommended Load Impedance: | 100 kΩ |
Cooling: | Heat sink |
Weight (head Only, With Isolation Tube): | 0.312 kg |
Dimensions (H X W X D, In Mm): | With isol. tube: 73 x 73 x 72 | W/o isol. tube: 73 x 73 x 20 |
Calibrated Spectral Range: | 0.248 – 2.1 µm |
Repeatability (Precision): | ± 0.5 % |
Linearity With Power: | ± 2 % |
Calibration Uncertainty: | ± 2.5 % |
Typical Rise Time (0-95%): | 27 s (2.5 s with anticipation) |
Thermal Drift: | 12 µW/oC |
Power Noise Level: | ± 0.5 µW |
Available Extra Calibrated Ranges: | 2.1 µm - 2.5 µm OR 10.6 µm |
Features
- Modular Concept: Increase the power capability of your detector: 4 different cooling modules
- High Performance: Fast Rise Time (1.3 sec). High Damage Threshold (45 kW/cm2).
- Compact Design (T Version): Only 62.4 x 62.4 mm front and 38.1 mm thick for up to 250 W continuous power
- Energy Mode: Measure single shot energy up to 40 J
- Smart Interface: Containing all the calibration data
Applications
- Power output measurements of high-power lasers in a wide spectral range from deep ultraviolet to mid-infrared.
- Spectroscopy
- Field service
- Laboratory and industrial applications
Frequently Asked Questions
What is the Gentec-EO Ultra Series UP power detector family?
The Gentec-EO Ultra Series UP power detector family includes thirteen series of opto-thermal sensors with different cooling options, with or without amplification.
What are the features of the Gentec-EO Ultra Series UP power detector family?
The features of the Gentec-EO Ultra Series UP power detector family include a modular concept, high performance, compact design, energy mode, and a smart interface.
What are the applications of the Gentec-EO Ultra Series UP power detector family?
The Gentec-EO Ultra Series UP power detector family is used for power output measurements of high-power lasers in a wide spectral range from deep ultraviolet to mid-infrared, spectroscopy, field service, and laboratory and industrial applications.
What is the warranty for the Gentec-EO thermal power and energy detectors?
The Gentec-EO thermal power and energy detectors carry a one-year warranty against material and/or workmanship defects when used under normal operating conditions.
What should I do if my Gentec-EO power detector malfunctions?
In the case of a malfunction, contact the local Gentec-EO distributor or nearest Gentec-EO office to obtain a return authorization number.
