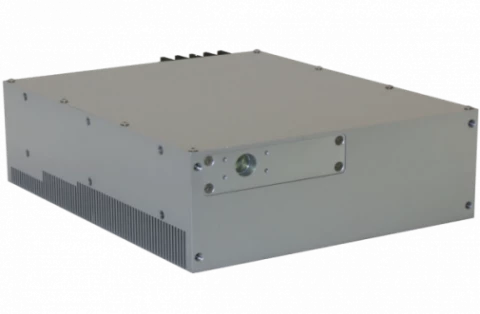

Wedge HF 1064nm: 1064nm Picosecond Laser
Description
Wedge family has been fully renewed in terms of performances and available models. Wedge HB is available both at 1064nm and at 532 nm; pulse energy can reach 4 mJ in 1 ns. Wedge-HF and Wedge-XF are now available in a very compact unit, only 8x9x19 cm, both at 1064nm and 532nm.
Repetition rate can reach 100 kHz and pulses can be shorter than 500 ps. Wedge represents a flexible platform for customized units where high power amplifiers can be added to Wedge-HF and Wedge-XF in order to fit the most demanding industrial and aerospace applications.
Based on a proprietary fast Q-Switching technology, this compact sealed and monolithic diode pumped lasers are insensitive to vibrations and harsh environments. They have been designed for OEM applications like micro machining of hard and soft materials, specialty marking, glass and crystals engraving, LIDAR, LIBS, Spectroscopy and medical diagnostics.
High output peak power, with relatively low energy and heat generation, allows efficient ablation and non-linear interaction with most materials. The compact and lightweight package represents a great benefit in LIDAR and other aerospace applications, while short pulses give extremely precise time-of-flight measurements. Second Harmonic (532 nm output) and wavelength conversion option widen the product application range.
Wedge HF 1064nm: 1064nm Picosecond Laser
Specifications |
|
|---|---|
| Avg. Power: | 4 W |
| Wavelength: | 1064 nm |
| Repetition Rate: | 10-100kHz |
| Spatial Mode (M^2): | 1.5 |
| Pulse Duration: | 1.5 ns |
| Pulse-to-Pulse Stability (RMS): | 3 % |
| Cooling: | Air |
Features
- Up to 180uJ pulse energy
- >250kW peak power
- 400ps to 1.5ns pulse width
- Single shot to 2kHz
- Monolithic design
- Air cooling
- Low heat waste
- MOPA configurations
Applications
- LIDAR
- Micromachining of glass
- Specialty marking
- Thin film removal
- Non-linear spectroscopy
- Harmonic and parametric generation
- Visible to IR OPO pumping
- Terahertz generation
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Wedge-HF-1064 laser is used for micro machining of hard and soft materials, specialty marking, glass and crystals engraving, LIDAR, LIBS, Spectroscopy and medical diagnostics.
The pulse energy of the Wedge-HF-1064 laser can reach up to 180uJ.
The peak power of the Wedge-HF-1064 laser is greater than 250kW.
The pulse width range of the Wedge-HF-1064 laser is between 400ps to 1.5ns.
Some of the applications of the Wedge-HF-1064 laser include LIDAR, micromachining of glass, specialty marking, thin film removal, non-linear spectroscopy, harmonic and parametric generation, visible to IR OPO pumping, and TeraHertz generation.
