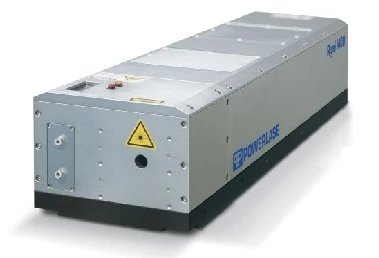

Rigel i400 Q-Switched DPSS Laser for Industrial Applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2014
Description
The Rigel i400 is a cutting-edge, Q-switched, diode-pumped solid-state (DPSS) laser that delivers a remarkable 400 watts of power at a wavelength of 1064 nm. This unpolarised laser is engineered for high average power and peak performance, making it an ideal solution for demanding industrial environments. Its robust and rugged head design ensures durability and reliable operation, even in the most challenging conditions. The Rigel i400's state-of-the-art universal control system architecture allows for seamless integration and synchronization with OEM equipment and process lines, facilitating high-volume industrial applications.
Powerlase Photonics has meticulously designed the Rigel i400 to offer exceptional stability and ease of use. The laser's condition monitoring feature ensures optimal performance and longevity, while optional fiber delivery and computer-controlled attenuation provide versatility and precision. With its compact size and efficient design, the Rigel i400 is a powerful tool for industries requiring rapid and precise laser processing.
Whether it's for LCD production, photovoltaic processing, thin film removal, or rapid laser patterning, the Rigel i400 stands out as a reliable and efficient choice. Its capability to deliver high pulse energy and power stability makes it an essential asset for industries looking to enhance productivity and precision. Trust in the Rigel i400 to meet the rigorous demands of modern industrial applications, backed by Powerlase Photonics' reputation for excellence and innovation.
Rigel i400 Q-Switched DPSS Laser for Industrial Applications
Specifications |
|
|---|---|
| Avg. Power: | 400 W |
| Wavelength: | 1064 nm |
| Repetition Rate: | 5 – 20 kHz |
| Spatial Mode (M^2): | 20 |
| Pulse Duration: | 20 ns |
| Pulse-to-Pulse Stability (RMS): | 1 % |
| Cooling: | Water-to-Water |
| Pulse Energy: | Up To 50 mJ |
| Divergence: | 12 mrad |
| Typical Fibre Core: | 600 μm |
| Supply Voltage: | 3-phase N+E, 220 or 400 VAC (±10%) |
| Supply Frequency: | 50 or 60 Hz |
| Nominal Power Consumption: | 13 kVA |
| Gas Purge: | N2 or Air (Grade N5.0, <1 ppm THC) |
| Laser Dimensions: | 1600 x 360 x 253 mm |
| Control Rack Dimensions: | 1195 x 600 x 970 mm |
| Environmental Conditions: | Temp 15 - 32°C and RH <60% (90% max, non condensing) |
Features
- High Power Output: The Rigel i400 delivers an impressive 400 watts of power, making it ideal for demanding industrial applications.
- Q-Switched DPSS Laser: Utilizes a diode-pumped solid-state laser design for high efficiency and performance.
- Wavelength: Operates at 1064 nm, unpolarized, suitable for a wide range of materials and processes.
- Pulse Energy: Capable of delivering pulse energy up to 50 mJ, ensuring effective material processing.
- Excellent Stability: Provides consistent performance with a power stability of 0.3% (1 σ).
- Condition Monitoring: Features advanced monitoring capabilities to ensure optimal operation and maintenance.
- Optional Fibre Delivery: Offers flexibility with optional round or square fibre delivery systems.
- Computer Controlled Attenuation: Optional feature for precise control over laser output.
- Repetition Frequency Optimization: Optional feature to optimize pulse repetition frequencies for specific applications.
- Rugged Design: Built with a proven rugged head design for durability and reliability in industrial environments.
- Universal Control System: State-of-the-art control system architecture ensures easy integration with OEM equipment and process lines.
Applications
- LCD Production
- Photovoltaic Processing
- Thin Film Removal
- Rapid Laser Patterning
Frequently Asked Questions
It is a 400 watt, Q-switched, DPSS laser that delivers high average power and high peak power at 1064 nm, unpolarised.
Some applications include LCD production, photovoltaic processing, thin film removal, and rapid laser patterning.
The laser dimensions are 1600 x 360 x 253 mm, while the control rack dimensions are 1195 x 600 x 970 mm (h w d).
The laser requires a 3-phase N+E, 220 or 400 VAC (±10%) supply voltage, 50 or 60 Hz supply frequency, 13 kVA nominal power consumption, 20 litres/min cooling water at 11 - 17°C, and N2 or Air (Grade N5.0, <1 ppm THC) gas purge.
The laser is a Class 4 laser product, so it is important to avoid eye or skin exposure to direct or scattered radiation.
