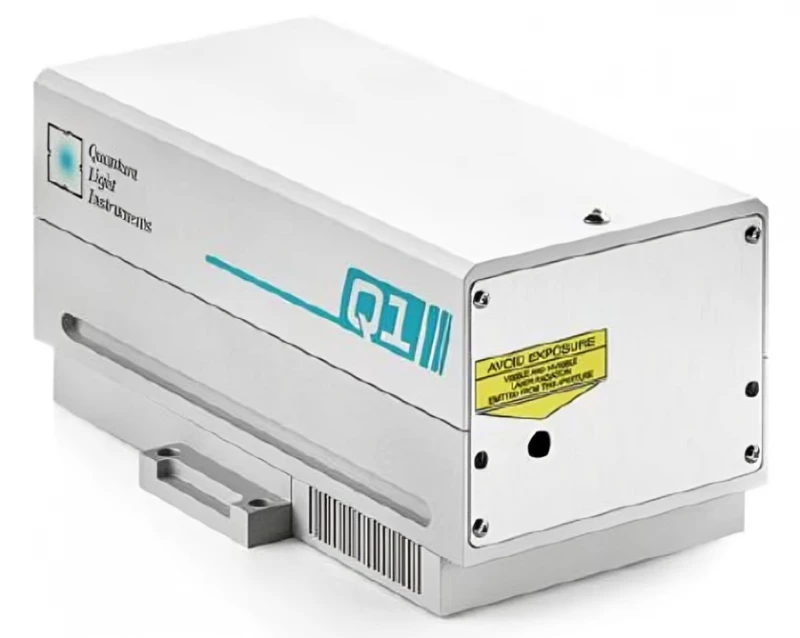

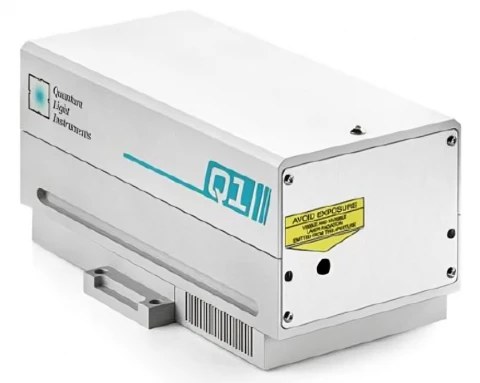

Quantas-Q1-532: High Energy Compact Nanosecond DPSS Laser

Description

The Quantas-Q1-532 series represents the evolution of Diode-Pumped Solid State (DPSS) laser technology, tailored to deliver high-energy pulses at the green wavelength of 532 nm. Capable of producing pulse energies ranging from 5 mJ to 17 mJ with pulse durations under 8 ns at repetition rates up to 10 Hz, this series is engineered for precision applications that benefit from the visibility and absorption characteristics of green light.

Optimized Performance for Diverse Applications: Designed for peak performance, the Quantas-Q1-532 series offers high peak power pulses, crucial for applications such as photodynamic therapy, precision cutting, and marking, as well as pumping Ti:Sapphire lasers. The integration of high-speed triggering and minimal jitter (<0.5 ns RMS) enhances its utility in synchronized systems and time-resolved spectroscopy.

Innovative Design for Enhanced Usability: Featuring an air-cooled, compact framework, the Quantas-Q1-532 series stands out for its efficiency and user-friendly operation, enabling seamless integration into various setups without extensive cooling infrastructure. Despite its high-energy output, the series maintains a turnkey operation, further facilitated by a user-friendly web interface for ease of control and monitoring.

Specifications

Avg. Power:	0.17 W
Wavelength:	532 nm
Repetition Rate:	0.001 – 0.05 kHz
Pulse Duration:	8 ns
Pulse-to-Pulse Stability (RMS):	2.5 %
Cooling:	Air
Pulse Energy:	1.2 to 20 mJ
Power Drift:	± 3.0 %
Beam Pointing Stability:	<10 mrad
Polarization:	Linear, horizontal
Transmission Range:	0.5 – 95 %
Laser Head ( W×L×H):	110 × 231× 112 mm³
Controller Unit (W×L×H):	108 × 191 × 59 mm³
Power Adapter (W×L×H):	50 × 125 × 31 mm³
Harmonic Generator (W×L×H):	110 × 242 × 112 mm³
Ambient Temperature:	15 – 30 °C
Relative Humidity (non-condensing):	10 – 80 %
Mains Voltage:	90 – 230 VAC, single phase, 47 – 63 Hz

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Wavelength: 532 nm
Pulse Energy: 5 mJ to 17 mJ
Pulse Width: <8 ns
Repetition Rate: Up to 10 Hz
Air-cooled design
High peak power pulses
High-speed triggering
0.5 ns RMS jitter

Applications

Laser-induced breakdown spectroscopy (LIBS)
Laser ablation
Time-of-flight spectroscopy (TOFS)
Light-induced fluorescence (LIF) spectroscopy
Non-linear laser spectroscopy
Flash photolysis
Photoacoustics
Metrology

Request Quote

To: RPMC Lasers, Inc.
Re: Quantas-Q1-532: High Energy Compact Nanosecond DPSS Laser

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: United States
Sold by:: RPMC Lasers, Inc. ✓ Verified Supplier
On FindLight:: since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the range of pulse energy for the Quantas-Q1-532 series?

This series delivers pulse energies from 5 mJ to 17 mJ, offering substantial power for precision applications.

What are the pulse duration and repetition rate capabilities?

Featuring pulse durations shorter than 8 ns, the series can operate at repetition rates up to 10 Hz.

How user-friendly is the Quantas-Q1-532 series?

With its high-speed triggering, low jitter, and air-cooled design, the series is designed for ease of use and seamless integration into various systems.

Which applications can benefit from the Quantas-Q1-532 series?

Ideal for photodynamic therapy, precision cutting and marking, pumping Ti:Sapphire lasers, and time-resolved spectroscopy, the laser's green output is particularly valuable for applications requiring precision and high visibility.

How does the Quantas-Q1-532 ensure operational reliability?

Built with a long-life pump diode (>2 Giga-shots) and an air-cooled design, the series minimizes maintenance while enhancing durability.

Can the Quantas-Q1-532 series be synchronized with other equipment?

Yes, it features internal or external triggering modes, allowing for precise synchronization with external experimental setups or instruments.
