Description

The Quantas-Q1-355 series is at the forefront of Diode-Pumped Solid State (DPSS) laser technology, tailored for delivering high-energy pulses at the ultraviolet wavelength of 355 nm. This series is adept at generating pulse energies ranging from 3 mJ to 10 mJ, with pulse durations below 8 ns at repetition rates up to 10 Hz, making it an invaluable tool for applications requiring high precision and energy in the UV spectrum.

Optimized Performance for Advanced Applications: Designed to cater to the rigorous demands of applications such as UV photolithography, material processing, and spectroscopic analysis, the Quantas-Q1-355 series UV DPSS laser delivers high peak power pulses, ensuring effective material interaction and process efficiency. The incorporation of high-speed triggering and minimal jitter (<0.5 ns RMS) further underscores its suitability for high-precision, time-sensitive applications.

Innovative Design for Enhanced Integration: Featuring an air-cooled, compact structure, the Quantas-Q1-355 DPSS laser highlights efficiency and user-friendliness, facilitating seamless integration into various setups without the need for complex cooling systems. Despite its high-energy output, the series maintains a turnkey operation, simplified by a user-friendly web interface for ease of use and monitoring.

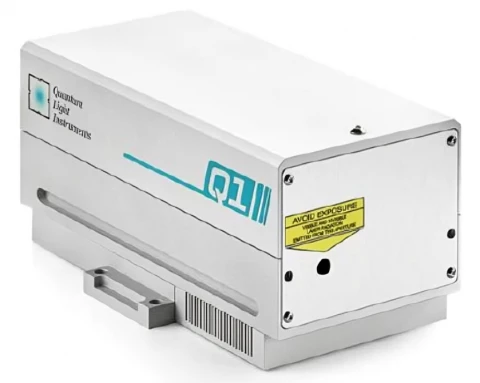

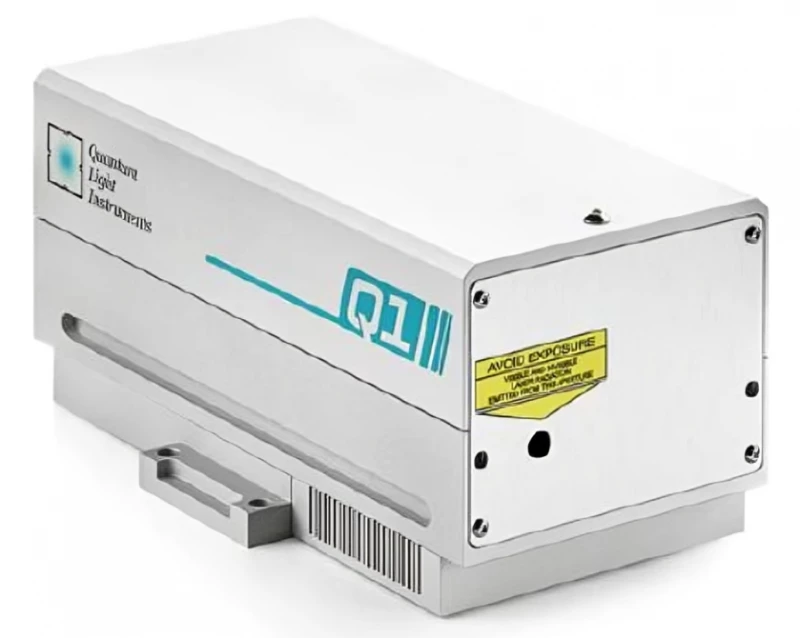

Quantas-Q1-355: High Energy Compact Nanosecond DPSS Laser

Specifications

Avg. Power: 0.5 W
Wavelength: 355 nm
Repetition Rate: 0.001 – 0.05 kHz
Pulse Duration: 8 ns
Pulse-to-Pulse Stability (RMS): 3.5 %
Cooling: Air
Pulse Energy: 0.6 to 12 mJ
Power Drift: ± 3.0 %
Beam Divergence: 1.5 mrad
Beam Pointing Stability: <10 mrad
Polarization: Linear, horizontal
Transmission Range: 0.5 – 95 %
Laser Head ( W×L×H): 110 × 231× 112 mm³
Controller Unit (W×L×H): 108 × 191 × 59 mm³
Power Adapter (W×L×H): 50 × 125 × 31 mm³
Harmonic Generator (W×L×H) ¹: 110 × 242 × 112 mm³
Ambient Temperature: 15 – 30 ℃
Mains Voltage: 90 – 230 VAC, single phase, 47 – 63 Hz
Relative Humidity (non-condensing): 10 – 80 %

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 355 nm
  • Pulse Energy: up to 12 mJ
  • Pulse Width: 8 to 10 ns
  • Repetition Rate: Up to 50 Hz
  • Air-cooled design
  • High peak power pulses
  • High-speed triggering
  • 0.5 ns RMS jitter

Applications

  • Laser Induced Breakdown Spectroscopy (LIBS)
  • Laser ablation
  • Time-of-Flight Spectroscopy (TOFS)
  • Light Induced Fluorescence (LIF) Spectroscopy
  • Non-linear laser spectroscopy
  • Flash photolysis
  • Photoacoustics
  • Metrology

Frequently Asked Questions

What wavelength does the Quantas-Q1-355 UV DPSS laser operate at?
The Quantas-Q1-355 operates at the ultraviolet wavelength of 355 nm, suitable for a myriad of UV-specific applications.
What is the range of pulse energy for the Quantas-Q1-355 series UV DPSS laser?
This series delivers pulse energies from 3 mJ to 10 mJ, offering substantial power for precision applications.
What are the pulse duration and repetition rate capabilities?
Featuring pulse durations shorter than 8 ns, the series can operate at repetition rates up to 10 Hz.
How user-friendly is the Quantas-Q1-355 series?
With its high-speed triggering, low jitter, and air-cooled design, the series is designed for ease of use and seamless integration into various systems.
Which applications can benefit from the Quantas-Q1-355 DPSS laser series?
Ideal for UV photolithography, material processing, spectroscopy, and DNA sequencing, the laser's UV output is particularly valuable for precision applications requiring minimal thermal damage.
How does the Quantas-Q1-355 ensure operational reliability?
Built with a long-life pump diode (>2 Giga-shots) and an air-cooled design, the series minimizes maintenance while enhancing durability.
Can the Quantas-Q1-355 series be synchronized with other equipment?
Yes, it features internal or external triggering modes, allowing for precise synchronization with external experimental setups or instruments.
What are the power requirements for the Quantas-Q1-355 UV DPSS laser series?
The series is efficient, with power consumption ranging from 50 to 150 W depending on the model, contributing to its cost-effectiveness and environmental friendliness.
