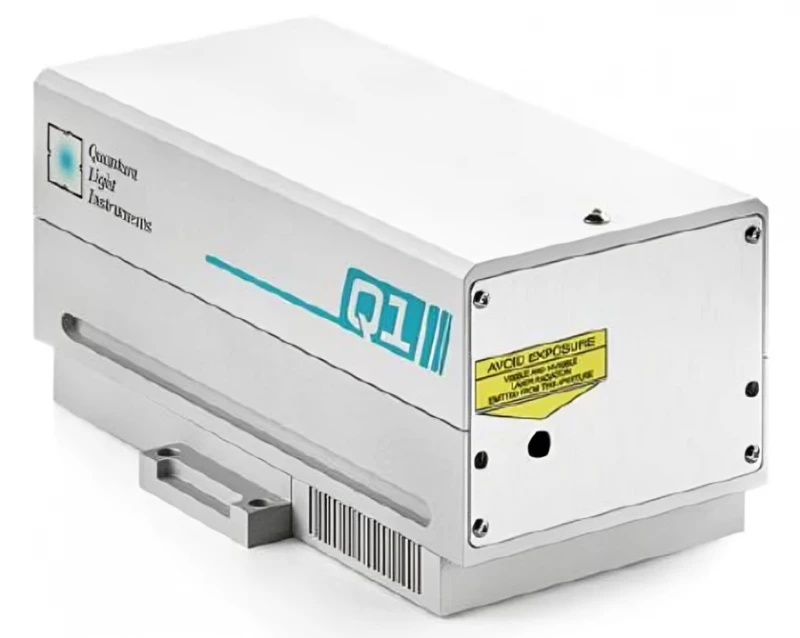

Quantas-Q1-1064 High Energy Compact Nanosecond NIR DPSS Laser

Name: Quantas-Q1-1064 High Energy Compact Nanosecond NIR DPSS Laser
Brand: RPMC Lasers, Inc.
Availability: InStock

Description

The Quantas-Q1-1064 series NIR DPSS laser is tailored for applications demanding high energy and precision. Operating at a fundamental wavelength of 1064 nm, this series is capable of delivering pulse energies up to 35 mJ, with pulse durations maintained under 8 ns at a repetition rate of up to 10 Hz, making it an ideal solution for a diverse range of scientific, industrial, and medical applications.

Optimized Performance and Versatility: Designed for peak performance, the Quantas-Q1-1064 series near infrared (NIR) DPSS laser provides high peak power pulses, ensuring effective interaction with a variety of materials and experimental conditions. The integration of high-speed triggering and minimal jitter (<0.5ns RMS) further enhances its application in time-sensitive and high-precision tasks.

Innovative Design for Enhanced Usability: The air-cooled, compact structure of the Quantas-Q1-1064 DPSS laser series underscores its efficiency and user-friendly nature, allowing for easy integration into existing setups without the need for extensive cooling infrastructure. The series boasts a turnkey performance, facilitated by a user-friendly web interface that simplifies operation and monitoring.

Specifications

Avg. Power:	0.1 W
Wavelength:	1064 nm
Repetition Rate:	0.001 – 0.05 kHz
Pulse Duration:	8 ns
Pulse-to-Pulse Stability (RMS):	0.5 %
Cooling:	Air
Pulse Energy:	2.5 to 40 mJ
Power Drift:	± 3.0 %
Beam Divergence:	<1 mrad
Polarization:	Linear, horizontal
Typical Beam Diameter:	2.5 mm
Transmission Range:	0.5 – 95 %
Laser Head ( W×L×H):	110 × 231× 112 mm³
Controller Unit (W×L×H):	108 × 191 × 59 mm³
Power Adapter (W×L×H):	50 × 125 × 31 mm³
Harmonic Generator (W×L×H):	110 × 242 × 112 mm³
Ambient Temperature:	15 – 30 ℃
Relative Humidity (non-condensing):	10 – 80 %
Mains Voltage:	90 – 230 VAC, single phase, 47 – 63 Hz
Average Power Consumption:	15 – 30 W

Download Data Sheet

Features

Operating Wavelength: 1064 nm

Pulse Energy: Up to 35 mJ

Pulse Width: <8 ns

Repetition Rate: Up to 10 Hz

Air-cooled design

High peak power pulses

High-speed triggering

0.5 ns RMS jitter

Applications

Laser material processing

Micromachining

Laser ablation

Laser marking

Name

Work Email

Organization (recommended)

Country

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

RPMC Lasers, Inc.

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the maximum pulse energy of the Quantas-Q1-1064 series NIR DPSS laser?

The Quantas-Q1-1064 series can deliver pulse energies up to 35 mJ, providing high-intensity outputs for various applications.

What are the pulse width and repetition rate specifications?

This series offers pulse widths of less than 8 ns and can operate at repetition rates up to 10 Hz, suitable for precise and controlled energy delivery.

How does the Quantas-Q1-1064 series NIR DPSS laser manage cooling?

The series utilizes an air-cooled design, eliminating the need for external water cooling systems and simplifying its integration into various setups.

Can the Quantas-Q1-1064 series be synchronized with external equipment?

Yes, it features high-speed triggering capabilities and a jitter of less than 0.5 ns RMS, allowing for precise synchronization with other instruments or experimental setups.

What makes the Quantas-Q1-1064 near infrared DPSS laser suitable for harmonic generation?

Its high peak power pulses and low divergence are conducive to efficient harmonic conversion, making it capable of generating harmonics through to the 5th harmonic.

What is the expected lifetime of the pump diode in the Quantas-Q1-1064 series?

The pump diode is designed for a lifetime of more than 2 Giga-shots, ensuring long-term stability and reduced maintenance.

How user-friendly is the Quantas-Q1-1064 series?

With a turnkey performance and a user-friendly web interface, the series is designed for ease of use, allowing operators to manage settings and monitor performance remotely.

What applications can benefit from the Quantas-Q1-1064 series?

This laser series is ideal for temporally resolved spectroscopy, metrology, photo-acoustic imaging, remote sensing, and various industrial and scientific applications requiring high-energy pulses.
