Quantas-Q-SHIFT-1177: High Energy ns Pulsed DPSS Laser

Name: Quantas-Q-SHIFT-1177: High Energy ns Pulsed DPSS Laser
Brand: RPMC Lasers, Inc.
Availability: InStock

Description

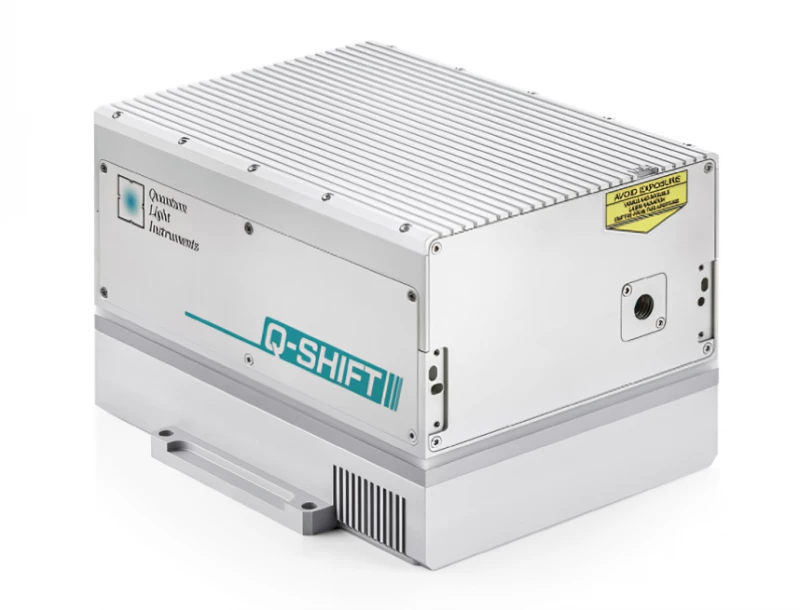

The Quantas-Q-SHIFT-WXXXX series is a sleek, modern, light grey colored pulsed high energy DPSS laser housing designed for researchers and application specialists. It offers unconventional DPSS wavelengths ranging from 291 nm to 1571 nm, with options for up to the 4th harmonic. This air-cooled, water-free nanosecond DPSS laser provides high peak power pulses up to 40 mJ and high average power up to 800 mW. With high-speed triggering and low jitter, this laser series is suitable for various applications including micromachining, dermatology, LIDAR, time-resolved laser spectroscopy, and LIBS.

Specifications

Avg. Power:	1 W
Wavelength:	1177 nm
Repetition Rate:	0.01 – 0.1 kHz
Pulse Duration:	2 ns
Pulse-to-Pulse Stability (RMS):	1.5 %
Cooling:	Air
Pulse Energy:	4 to 40 mJ
Beam Divergence:	3.0 mrad
Polarization:	Linear, > 95 %
Jitter (RMS):	< 0.5 ns
Laser Head (W×L×H):	190 × 408 × 155 mm³
Controller Unit (W×L×H):	108 × 191 × 59 mm³
Power Adapter (W×L×H):	89 × 422 × 330 mm³
Ambient Temperature:	15-30 °C
Relative Humidity (non-condensing):	10-80 %
Mains Voltage:	90 – 230 VAC, single phase, 47 – 63 Hz
Lifetime:	>2 G shots
Q-switch Type:	Active
Power Drif:	± 3.0 %

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Fundamental Wavelength Options: 1163, 1177, 1300, 1317, 1551, and 1571 nm
Harmonic Options: Up to 4th harmonic
Peak Power: Up to 40 mJ
Average Power: Up to 800 mW
Cooling: Air-cooled, water-free
High-speed Triggering
Jitter: <0.5ns RMS
Shot Lifetime: >2 G

Applications

Micromachining
Dermatology
LIDAR
Time-resolved laser spectroscopy
LIBS (Laser-Induced Breakdown Spectroscopy)

Name

Work Email

Organization (recommended)

Country

Your message to supplier

Ships from:

United States

Sold by:

RPMC Lasers, Inc. ✓ Verified Supplier

On FindLight:

since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the Quantas-Q-SHIFT-1177 ns DPSS laser used for?

The Quantas-Q-SHIFT-1177 laser is designed for applications that require high peak power pulses such as micro-machining, dermatology treatments, eye-safe LIDAR, and spectroscopy.

What wavelength does the Q-SHIFT-1177 high energy DPSS laser emit?

This laser emits at a wavelength of 1177 nm within the near-infrared spectrum.

What are the pulse energy and repetition rate capabilities of this nanosecond DPSS laser?

The Q-SHIFT-1177 can provide pulse energy of up to 40 mJ and a repetition rate of up to 100 Hz.

What is the pulse duration for the Q-SHIFT-1177 pulsed DPSS laser?

The pulse duration for this laser is between 2 and 5 nanoseconds.

How is the Q-SHIFT-1177 DPSS laser cooled?

The laser features an air-cooled design that is water-free, enhancing the system's reliability and ease of maintenance.

Does the Q-SHIFT-1177 laser support harmonic generation?

Yes, there are optional standalone harmonic generators for the 2nd, 3rd, and 4th harmonics that can be attached or used with this laser.

Can the Q-SHIFT-1177 be integrated with existing equipment?

With built-in synchronization capabilities and a built-in Ethernet interface, the Q-SHIFT-1177 can be easily integrated with other devices and remotely monitored or controlled.

What is the beam quality of the Q-SHIFT-1177 high energy DPSS laser?

The laser produces a bell-shaped beam profile that is >95% linearly polarized, with divergence less than 3.0 mrad and a typical beam diameter of 3-4 mm.

Is the laser pulse energy stable?

Yes, the Q-SHIFT-1177 offers pulse energy stability of

What are the operating temperature and humidity requirements for the Q-SHIFT-1177 ns pulsed DPSS laser?

The operating temperature range is from 15 – 30 ºC, and relative humidity should be within 10 – 80% (non-condensing) for optimal performance.
