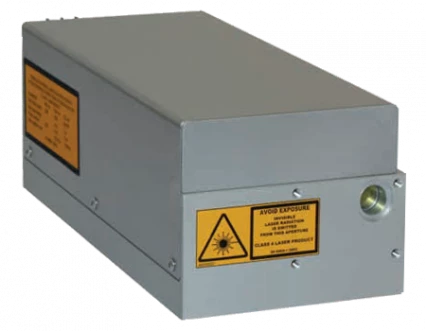

Onda 532nm Plus: 532nm High Energy Laser
Description
The Onda nanosecond laser series, available with up to 10W at 1064nm and 532nm, was developed as a high-energy seeder for advanced MOPA systems. The Onda is a DPSS ns-laser platform aimed at high-end applications requiring both excellent beam quality and high peak power in materials such as metals, glass, plastics, and various delicate and hard materials.
Also available at 266nm, 355nm, 532nm and 1064nm, the internal optical layout and accurate temperature management of the Onda series enables high output energies without compromising the lifetime of the THG and FHG stages. Depending on wavelength, the Onda is operational from single shot up to 100 kHz with a pulse duration between 2 and 15 ns.
The Onda series is an OEM laser configuration whose compactness and ease of use allow for a straight-forward integration with superior flexibility and good performance to cost ratio. The Onda is also available with our optional Cbox controller with a proprietary GUI software interface for simplified remote control and monitoring of the laser.
Onda 532nm Plus: 532nm High Energy Laser
Specifications |
|
|---|---|
| Avg. Power: | 10 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 1 – 100 kHz |
| Spatial Mode (M^2): | 1.5 |
| Pulse Duration: | 10 ns |
| Pulse-to-Pulse Stability (RMS): | Not Specified |
| Cooling: | Air |
| Single Shot: | |
| Polarization: | Linear 100:1 (option:circular polarization) |
| DC Voltage IN: | 24 V |
| Overall Mechanical Dimensions: | 23 x 10 x 9 cm |
| Total Weight: | < 4.5 kg |
Features
- Up to 0.8 mJ Pulse Energy: Available at 266 nm, 355 nm, 532 nm, and 1064 nm wavelengths
- High Peak Power: 40 kW at 266 nm, 200 kW at 532 nm, and 400 kW at 1064 nm
- Fast Pulsewidth: Pulse durations from 2 to 10 ns, ideal for precision applications
- Flexible Repetition Rate: Operates from single shot to 100 kHz
- Monolithic Design: Compact, robust construction with air cooling
- Low Heat Waste: Efficient operation minimizing energy loss
- Polarization Options: Linear (100:1) or optional circular polarization
- Optional Cooling Systems: Air cooling, with options for water cooling and contact cooling
Applications
- Specialty Marking: Ideal for detailed and high-contrast marking on various materials
- Micromachining of Glass: Precise cutting and etching of glass substrates
- Electronic Manufacturing: Used for precision drilling, soldering, and component placement
- LIDAR and Bathymetry: High-powered pulses for distance measurement and underwater applications
- Thin Film Removal: Effectively removes thin layers from substrates without damaging underlying materials
- Hole Drilling: Enables high precision drilling in materials like metals, glass, and ceramics.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Onda 532nm Plus laser is used for specialty marking, micromachining of glass, electronic manufacturing, LIDAR and bathymetry, thin film removal, and hole drilling.
The maximum pulse energy of the Onda 532nm Plus laser is 800 µJ.
The pulse duration of the Onda 532nm Plus laser ranges from 2 to 10 ns.
Yes, the Onda 532nm Plus laser is air-cooled, but it also has the option for water cooling and contact cooling.
The maximum peak power of the Onda 532nm Plus laser is 300 kW.
