High Energy - Short Pulse Mid-IR DPSSQL Module

Pantec Biosolutions AG
REQUEST QUOTE

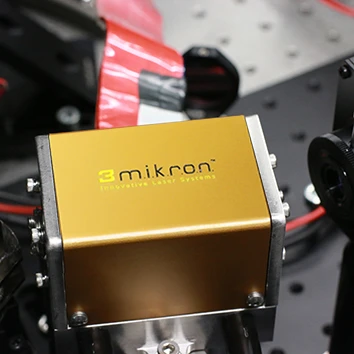

High Energy - Short Pulse Mid-IR DPSSQL Module

OVERVIEW

Our standard diode-pumped laser sources deliver up to 30 W at a wide range of repetition rates and pulse durations, both providing amazing results in biological tissue applications due to the excellent beam quality and the high level of water absorption.


Less waste heat and a notably smaller cooling system, compared to flash-lamp pumped lasers, lead to the compact footprint. By implementing reliable laser diodes and a rugged construction, the sources are suitable for 24/7 operation.

SPECIFICATION

  • Avg. Power: 5 W
  • Wavelength: 2810 nm
  • Repetition Rate: 0 - 0.5 kHz
  • Spatial Mode (M^2): 10
  • Pulse Duration: < 100 ns
  • Pulse-to-Pulse Stability (RMS): - %
  • Cooling: Water-to-Water
  • Pulse Energy: 25 mJ
Download Data Sheet

Applications

- Medical applications


- Spectroscopy


- OEM applications

KEY FEATURES

✓ High intensity 2.81 µm laser


✓ Nanosecond pulses with up to 25 mJ


✓ Linearly polarized beam


✓ Highly efficient diode pumping


✓ No high-voltage required


✓ Maintenance free
