Description

The **AOPico™ Series** of industrial picosecond lasers by Advanced Optowave™ offers cutting-edge diode-pumped solid-state laser solutions designed to meet the rigorous demands of modern manufacturing and processing industries. With an emphasis on precision and speed, these lasers are engineered to deliver exceptional performance in a variety of industrial applications, including thin-film ablation, medical device manufacturing, and semiconductor processing.

At the core of the **AOPico™ Series** is an advanced design that ensures the lowest cost of ownership in the industry, making it a cost-effective choice for businesses seeking high-quality laser solutions. The series is available in three wavelengths—IR, Green, and UV—providing versatility and adaptability to meet specific processing needs. With pulse durations of just 7 picoseconds, these lasers are capable of high-precision, high-speed micro-machining, making them ideal for tasks that demand meticulous detail and accuracy.

The **AOPico™ Series** is renowned for its excellent beam quality, with an M² value of less than 1.3, and offers a burst mode option for enhanced operational flexibility. Designed with reliability in mind, these lasers boast robust construction and are backed by Advanced Optowave Corporation's commitment to continuous product improvement. Whether you are involved in polymer processing, brittle material cutting, or sub-surface marking, the **AOPico™ Series** provides a reliable and efficient solution for your industrial laser needs.

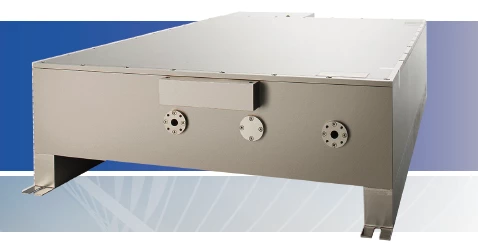

AOPico 1064 45-1000 Industrial Picosecond Lasers for Precision Micro-machining

Specifications

Avg. Power: 45 W
Wavelength: 1064 nm
Repetition Rate: 1 – 1000 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 0.007 ns
Pulse-to-Pulse Stability (RMS): 2 %
Cooling: Water-to-Water
Wavelength (nm): 1064
Energy (µJ): 100
Specified Repetition Rate (kHz): 100
Beam Roundness (%): >85
Beam Diameter (mm): ~1.0
Beam Divergence (mRad): <0.7
Point Stability (µrad/ºC): <50
Polarization Ratio: 100:1 Linear, Horizontal
Polarization Ratio: 100:1 Linear, Vertical

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Industrial Picosecond Lasers: The AOPico™ Series offers advanced diode-pumped solid-state laser solutions for industrial applications.
  • Versatile Wavelength Options: Available in IR (1064 nm), Green (532 nm), and UV (355 nm) for a wide range of applications.
  • High Average Power: Delivers up to 45W average power for intensive industrial tasks.
  • Exceptional Beam Quality: Features excellent beam quality with M2 < 1.3 for precision applications.
  • Ultra-Short Pulse Durations: Offers pulse durations of 7 ps, ideal for high-precision micro-machining.
  • Cost-Effective: Provides the lowest cost of ownership in the industry, optimizing operational efficiency.
  • Reliable Design: Built with a highly reliable design to ensure consistent performance.
  • Burst Mode Option: Includes a burst mode option for enhanced flexibility in various applications.
  • Wide Range of Applications: Suitable for thin-film ablation, medical device manufacturing, polymer processing, semiconductor processing, and more.
  • Compliance and Safety: Complies with CDRH, ROHS, and CE standards for safety and reliability.
  • Efficient Cooling: Equipped with water cooling to maintain optimal operating temperatures.
  • Flexible Communication: Features RS-232 communication for easy integration with existing systems.
  • Operational Flexibility: Operates within a temperature range of 15 to 30°C and humidity range of 20 to 80% non-condensing.
  • Compact and Lightweight: Laser head dimensions are 25 x 15 x 7 inches (585 x 381 x 179 mm) and weighs 70 lbs (32 kg).
  • Global Power Compatibility: Supports input voltage from 90 to 260 VAC with line frequency of 50 or 60 Hz.

Applications

  • Thin-Film Ablation
  • Medical Device Manufacturing
  • Polymer Processing/Machining
  • Semiconductor/PV Processing/Wafer Scribing
  • High-Precision, High-Speed Micro-machining
  • Brittle Material Cutting, Drilling, Dicing & Sub-Surface Marking

Frequently Asked Questions

What are the applications of the AOPico 1064 45-1000?
The AOPico 1064 45-1000 is used for Thin-Film Ablation, Medical Device Manufacturing, Polymer Processing/Machining, Semiconductor/PV Processing/Wafer Scribing, High-Precision, High-Speed Micro-machining, Brittle Material Cutting, Drilling, Dicing & Sub-Surface Marking.
What is the warranty coverage for the AOPico 1064 45-1000?
Advanced Optowave Corporation offers a limited warranty for all Femtosecond IR/GR laser systems. For full details on warranty coverage, or for further product information, please contact them.
What is the AOPico 1064 45-1000?
The AOPico 1064 45-1000 is a compact, cost effective diode-pumped solid-state Hybrid master-oscillator power-amplifier (MOPA) picosecond laser.
What is the average power of the AOPico 1064 45-1000?
The AOPico 1064 45-1000 has an average power of up to 45W.
What is the pulse duration of the AOPico 1064 45-1000?
The pulse duration of the AOPico 1064 45-1000 is 7 ps.

Got more questions? Use the inquiry form to ask the supplier directly.
