Description

The **AOPico™ Series** from Advanced Optowave™ represents a cutting-edge solution in the realm of industrial picosecond lasers. These lasers are designed to meet the demanding needs of modern industrial applications, providing a versatile and reliable tool for various precision tasks. At the heart of the series is the PICO-IR-1064/GR-532/UV-355, a range of lasers that offer exceptional performance across multiple wavelengths, including infrared, green, and ultraviolet. This flexibility ensures that users can select the optimal wavelength for their specific material processing needs, whether it's thin-film ablation, medical device manufacturing, or semiconductor processing.

The **AOPico™ Series** stands out for its remarkable beam quality, with an M² value of less than 1.3, ensuring precise and efficient energy delivery to the target material. With pulse durations of just 7 picoseconds, these lasers enable high-precision, high-speed micro-machining, making them ideal for applications that require exacting detail and minimal thermal impact.

The series supports a wide range of repetition rates, from single-shot to 1000 kHz, allowing for tailored processing speeds to suit different materials and production requirements. Moreover, the **AOPico™ Series** is engineered for reliability, featuring a robust design that minimizes downtime and maintenance costs. The burst mode option further enhances its versatility, offering additional control over energy delivery for complex machining tasks.

With a commitment to continuous product improvement, Advanced Optowave™ ensures that the AOPico™ Series remains at the forefront of laser technology, providing users with a powerful, cost-effective solution for their industrial laser needs. Whether it's brittle material cutting or sub-surface marking, these lasers deliver unparalleled performance and reliability.

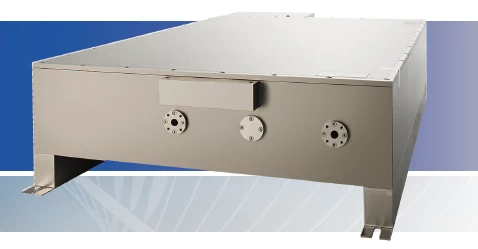

AOPico 1064 25-200 Industrial Picosecond Lasers for Precision Micro-machining

Specifications

Avg. Power: 25 W
Wavelength: 1064 nm
Repetition Rate: 100 – 200 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 0.007 ns
Pulse-to-Pulse Stability (RMS): 2 %
Cooling: Water-to-Water
Energy (µJ): 100
Beam Roundness (%): >85
Beam Diameter (mm): ~1.0
Beam Divergence (mRad): <1.3
Point Stability (µrad/ºC): <50
Polarization Ratio: 100:1 Linear, Horizontal
Polarization Ratio: 100:1 Linear, Vertical

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Lowest Cost of Ownership: Benefit from the most economical solution in the industry.
  • Excellent Beam Quality: Achieve superior results with a beam quality of M2 < 1.3.
  • Wavelength Options: Available in Infrared (IR), Green, and Ultraviolet (UV) for versatile applications.
  • High Power Output: Up to 45W average power for demanding industrial tasks.
  • Ultra-Short Pulse Durations: Pulse durations as short as 7 picoseconds for precision work.
  • Reliable Design: Engineered for high reliability and consistent performance.
  • Burst Mode Option: Enhance productivity with burst mode capabilities.
  • Versatile Applications: Ideal for thin-film ablation, medical device manufacturing, polymer processing, semiconductor processing, high-precision micro-machining, and brittle material cutting.

Applications

  • Thin-Film Ablation
  • Medical Device Manufacturing
  • Polymer Processing/Machining
  • Semiconductor/PV Processing/Wafer Scribing
  • High-Precision, High-Speed Micro-machining
  • Brittle Material Cutting, Drilling, Dicing & Sub-Surface Marking

Frequently Asked Questions

What is the AOPico 1064 25-200 laser used for?
The AOPico 1064 25-200 laser is used for thin-film ablation, medical device manufacturing, polymer processing/machining, semiconductor/PV processing/wafer scribing, high-precision, high-speed micro-machining, brittle material cutting, drilling, dicing, and sub-surface marking.
What is the warranty coverage for the AOPico 1064 25-200 laser?
Advanced Optowave Corporation offers a limited warranty for all Femtosecond IR/GR laser systems. For full details on warranty coverage, or for further product information, please contact us.
What is the pulse duration of the AOPico 1064 25-200 laser?
The pulse duration of the AOPico 1064 25-200 laser is 7 picoseconds.
What is the average power of the AOPico 1064 25-200 laser?
The AOPico 1064 25-200 laser has an average power of 25 watts.
What is the beam quality of the AOPico 1064 25-200 laser?
The beam quality of the AOPico 1064 25-200 laser is M2 <1.3.

Got more questions? Use the inquiry form to ask the supplier directly.
