Description

The **AOPico™ Series** from Advanced Optowave™ represents a groundbreaking advancement in industrial picosecond laser technology. These diode-pumped solid-state laser solutions are engineered to deliver exceptional performance across a variety of demanding applications. The series includes models with wavelengths in the infrared (IR), green, and ultraviolet (UV) spectrums, ensuring versatility and adaptability for diverse industrial needs.

With an emphasis on precision and efficiency, the AOPico™ Series is designed to meet the rigorous demands of modern manufacturing processes. At the heart of the **AOPico™ Series** is its capability for high-precision, high-speed micro-machining. These lasers are ideal for applications such as thin-film ablation, medical device manufacturing, polymer processing, and semiconductor processing, including wafer scribing.

The series also excels in cutting, drilling, dicing, and sub-surface marking of brittle materials, making it an invaluable tool in industries that require meticulous attention to detail and accuracy. One of the standout features of the **AOPico™ Series** is its commitment to delivering the lowest cost of ownership in the industry. The lasers boast excellent beam quality with an M² value of less than 1.3, ensuring superior performance and reliability. With pulse durations of 7 picoseconds and average power outputs of up to 45 watts, these lasers provide unmatched precision and speed.

The highly reliable design is complemented by a burst mode option, enhancing its operational flexibility. The AOPico™ Series is a testament to Advanced Optowave™'s dedication to continuous product improvement and innovation in laser technology.

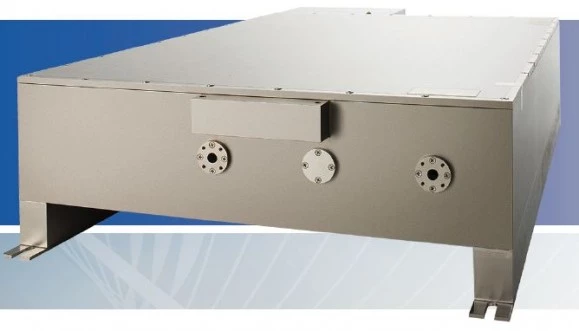

AOPico 1064 10-100 Industrial Picosecond Lasers for Precision Micro-machining

Specifications

Avg. Power: 10 W
Wavelength: 1064 nm
Repetition Rate: 1 – 100 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 0.007 ns
Pulse-to-Pulse Stability (RMS): 2 %
Cooling: Water-to-Water
Wavelength (nm): 1064
Beam Roundness (%): >85
Beam Diameter (mm): ~0.5
Point Stability (µrad/ºC): <50
Polarization Ratio: 100:1 Linear, Horizontal
Operational Temperature Range (ºC): 15 to 30
Storage Temperature Range (ºC): -20 to 50
Input Voltage (VAC): 90 to 260
Line Frequency (Hz): 50 or 60
Communication: RS-232
Laser Head Dimensions, In (mm): 25 x 15 x 7 (585 x 381 x 179)
Laser Head Weight, Lbs (kg): 70 (32)
Laser Controller Dimensions, In (mm): 19 x 17 x 7 (482 x 432 x 178)
Laser Controller Weight, Lbs (kg): 30 (13.6)
Umbilical Length, In (mm): 100 (2.5)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Industry-Leading Cost Efficiency: The AOPico™ Series offers the lowest cost of ownership in the industry, ensuring high value for your investment.
  • Superior Beam Quality: Achieves excellent beam quality with M2 < 1.3, providing precision in applications.
  • Versatile Wavelength Options: Available in IR, Green, and UV, catering to diverse industrial needs.
  • High Power Capability: Delivers up to 45W average power for demanding tasks.
  • Ultra-Short Pulse Duration: Features pulse durations of 7 ps for high-precision results.
  • Robust and Reliable Design: Engineered for high reliability to withstand rigorous industrial environments.
  • Burst Mode Option: Includes a burst mode option for enhanced flexibility in processing.
  • Wide Application Range: Suitable for thin-film ablation, medical device manufacturing, polymer processing/machining, semiconductor/PV processing/wafer scribing, high-precision micro-machining, and brittle material cutting, drilling, dicing & sub-surface marking.
  • Compliance and Certification: Compliant with CDRH, ROHS, and CE standards.
  • Advanced Cooling System: Utilizes water cooling for optimal performance and longevity.
  • Comprehensive Warranty: Advanced Optowave Corporation offers a limited warranty for all Femtosecond IR/GR laser systems.

Applications

  • Thin-Film Ablation
  • Medical Device Manufacturing
  • Polymer Processing/Machining
  • Semiconductor/PV Processing/Wafer Scribing
  • High-Precision, High-Speed Micro-machining
  • Brittle Material Cutting, Drilling, Dicing & Sub-Surface Marking

Frequently Asked Questions

What applications is the AOPico 1064 10-100 suitable for?
The AOPico 1064 10-100 is suitable for thin-film ablation, medical device manufacturing, polymer processing/machining, semiconductor/PV processing/wafer scribing, high-precision, high-speed micro-machining, brittle material cutting, drilling, dicing & sub-surface marking.
What is the warranty coverage for the AOPico 1064 10-100?
Advanced Optowave Corporation offers a limited warranty for all Femtosecond IR/GR laser systems. For full details on warranty coverage, or for further product information, please contact us.
What is the AOPico 1064 10-100?
The AOPico 1064 10-100 is a compact, cost-effective diode-pumped solid-state Hybrid master-oscillator power-amplifier (MOPA) picosecond laser.
What is the average power of the AOPico 1064 10-100?
The average power of the AOPico 1064 10-100 is 10 watts.
What is the pulse duration of the AOPico 1064 10-100?
The pulse duration of the AOPico 1064 10-100 is 7 ps.
